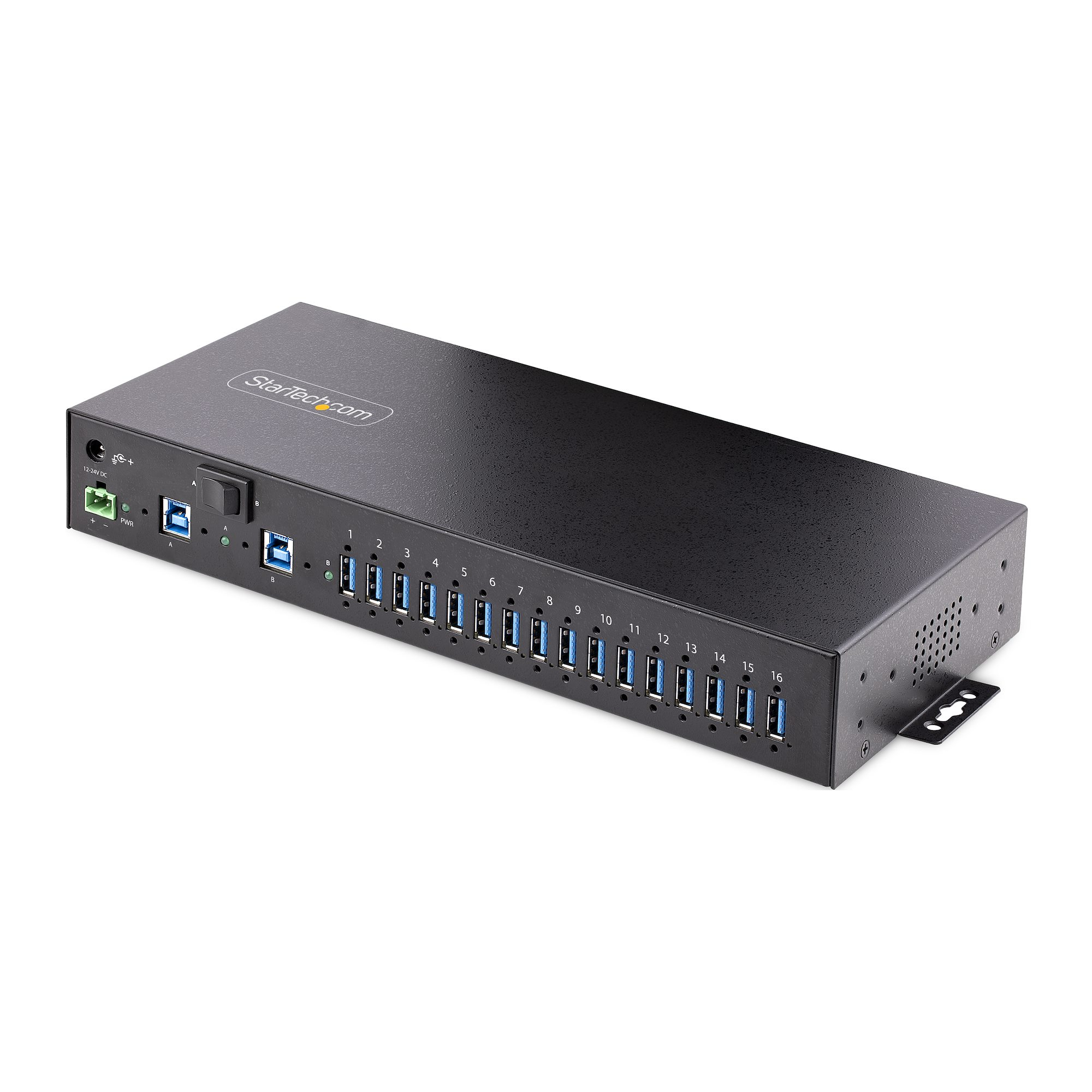

Startech 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch (5G16AINDS-USB-A-HUB) - Hub - industrial - 16 x USB 3.2 Gen 1 - desktop, rack-mountable, DIN rail mountable

Description

Manufacturer Code: 5G16AINDS-USB-A-HUB

Overview

Startech 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch (5G16AINDS-USB-A-HUB) - Hub - industrial - 16 x USB 3.2 Gen 1 - desktop, rack-moun is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• Hub
• industrial
• 16 x USB 3.2 Gen 1
• desktop, rack-moun

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030894999

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	16
Ports quantity	16
Terminal block port	Yes
DC-in jack	Yes

Features

Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Steel
LED indicators	Yes
Plug and Play	Yes

Power

Power supply type	DC
Input voltage	12 - 24 V
Power plug type	Type M

Weight & dimensions

Width	31 mm
Depth	13 mm
Height	44 mm
Weight	1.1 kg

Packaging data

Package width	130 mm
Package depth	280 mm
Package height	43 mm
Package weight	1.8 kg

Packaging content

Cables included	USB Type-A to USB Type-B
Terminal block included	Yes
DIN rail kit included	Yes
Mounting brackets included	Yes
Quick start guide	Yes

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Mean time between failures (MTBF)	122383.8 h

Logistics data

Master (outer) case width	515 mm
Master (outer) case length	390 mm
Master (outer) case height	313 mm
Products per master (outer) case	5 pc(s)

Other features

Rack mounting	Yes
Form factor	1U
Chipset	Genesys Logic - GL3523
