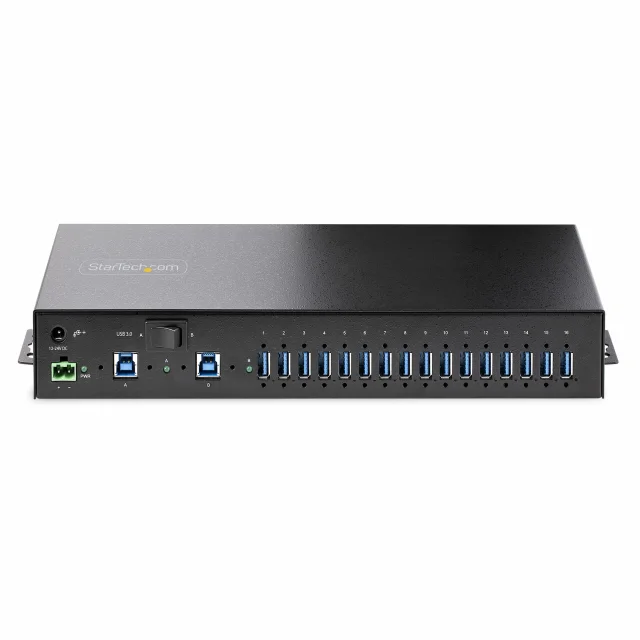

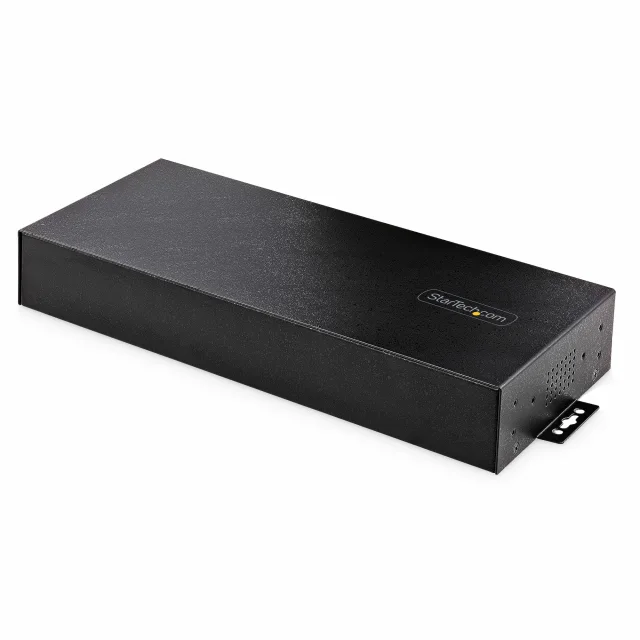

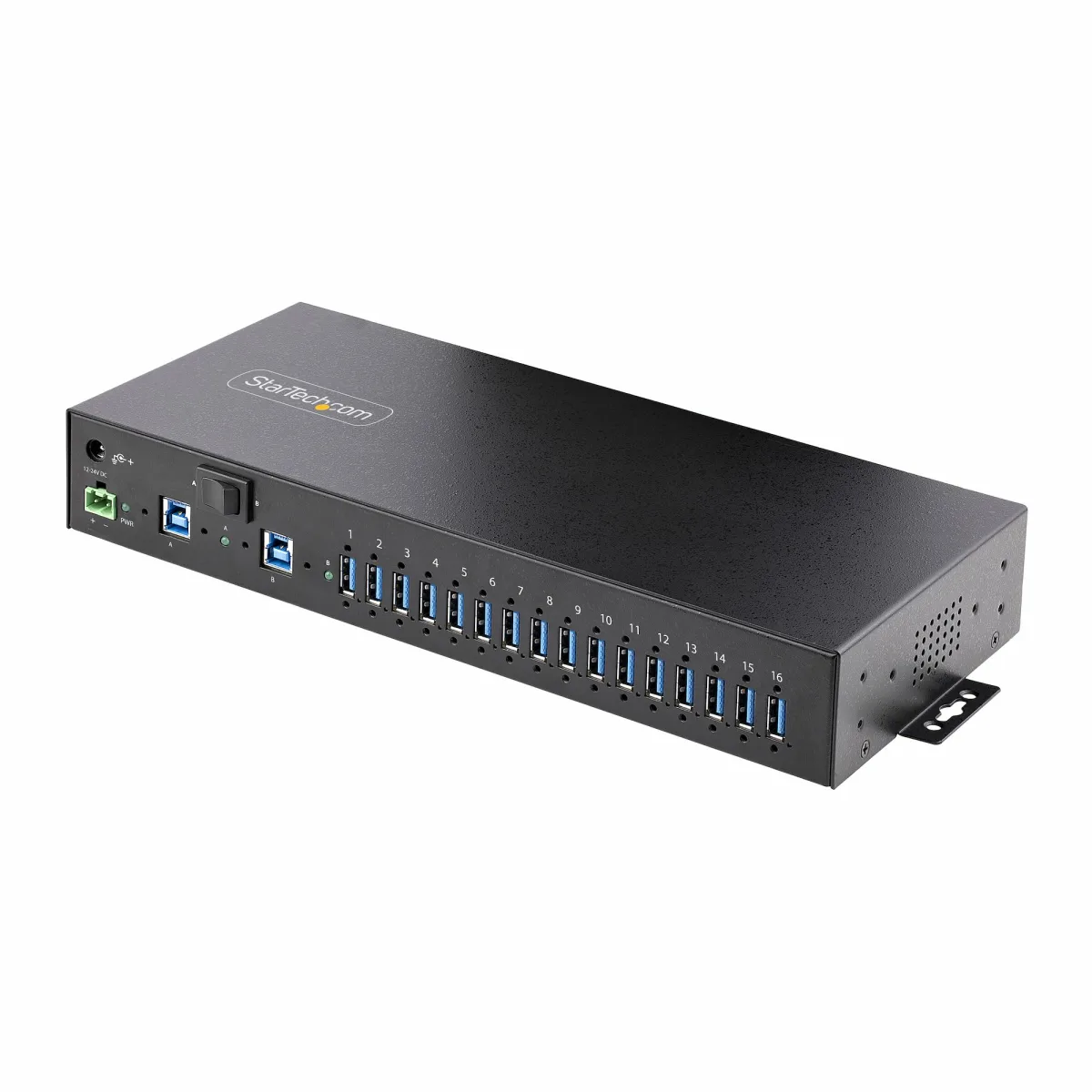

Startech 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA - Hub - 16 x USB 3.2 Gen 1 - desktop, rack-mountable, DIN rail mountable, wall-mountable - TAA Compliant

Description

Manufacturer Code: S5G16AINDS-USB-A-HUB

Overview

Startech 16-Port Industrial USB 5Gbps Hub with Power Adapter, Metal Enclosure, Mountable, ESD Protection, Terminal Block Power, USB Charging, Dual-Host Switch - TAA - Hub - 16 x USB 3.2 Gen 1 - desktop, rack-mountable, DIN rail mountable, wall-mountable - is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• TAA
• Hub
• 16 x USB 3.2 Gen 1
• desktop, rack-mountable, DIN rail mountable, wall-mountable -

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030905381

Specifications

Ports & interfaces

Host interface	2 x USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	16
Ports quantity	16
Terminal block port	Yes

Features

Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Steel
Electrostatic Discharge (ESD) protection (air)	15 kV
Electrostatic Discharge (ESD) protection (contact)	8 kV
LED indicators	Power, Status
Plug and Play	Yes

Power

Power consumption (max)	158.4 W
Input voltage	100 - 240 V
Input current	3.5 A
Output voltage	24 V
Output current	6.6 A

Weight & dimensions

Weight	1.1 kg

Packaging data

Package width	273 mm
Package depth	368 mm
Package height	98 mm
Package weight	1.8 kg

Packaging content

AC adapter included	Yes
Cables included	USB Type-A to USB Type-B
Terminal block included	Yes
DIN rail kit included	Yes
Quick start guide	Yes

Operational conditions

Operating temperature (T-T)	0 - 60 °C
Storage temperature (T-T)	-20 - 75 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Mean time between failures (MTBF)	122383.8 h

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	508 mm
Master (outer) case length	403 mm
Master (outer) case height	318 mm
Products per master (outer) case	5 pc(s)

Technical details

Compliance certificates	Trade Agreements Act (TAA)

Other features

Rack mounting	Yes
Chipset	Genesys Logic - GL3523
