Manufacturer Code: 4POSTRACK18U
Overview

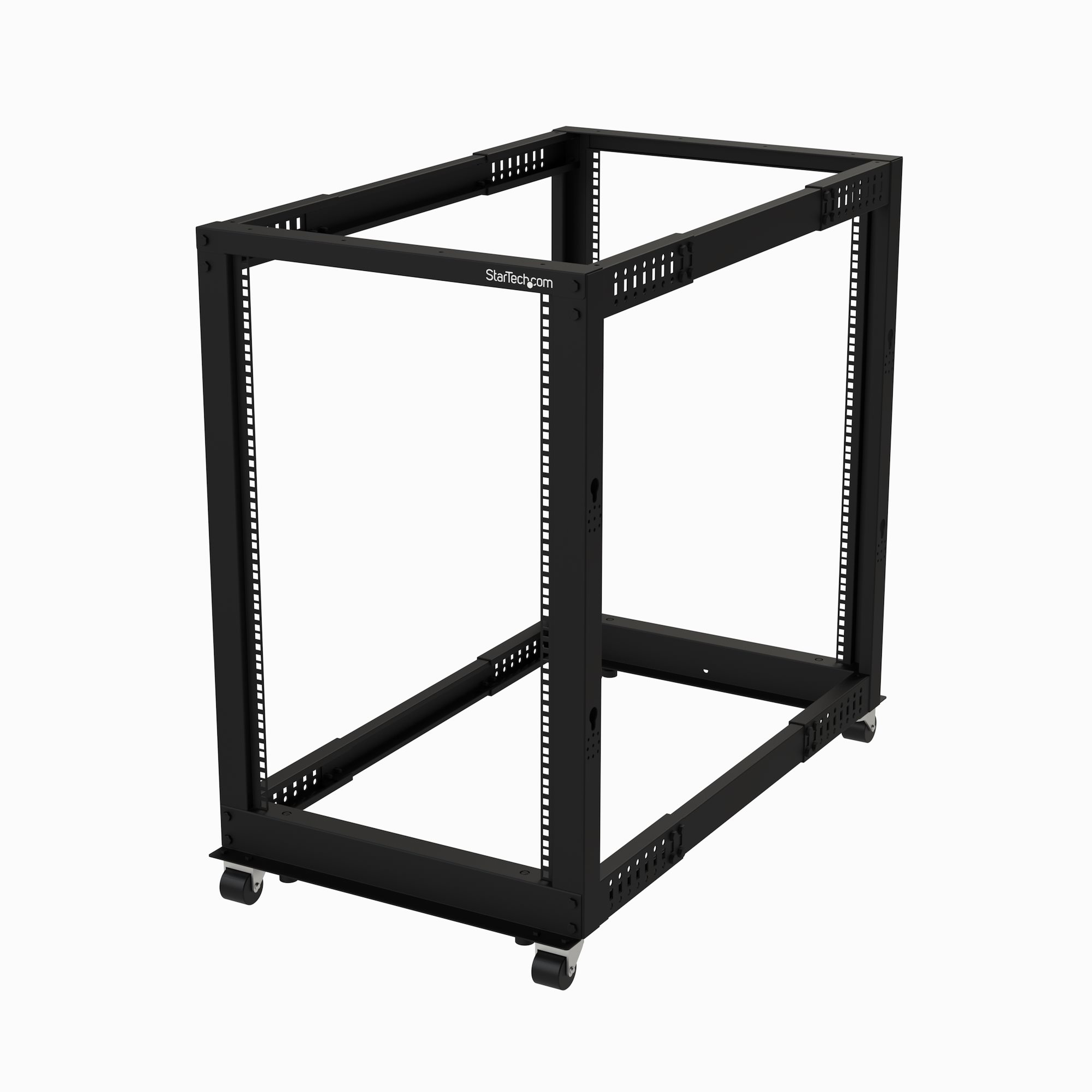

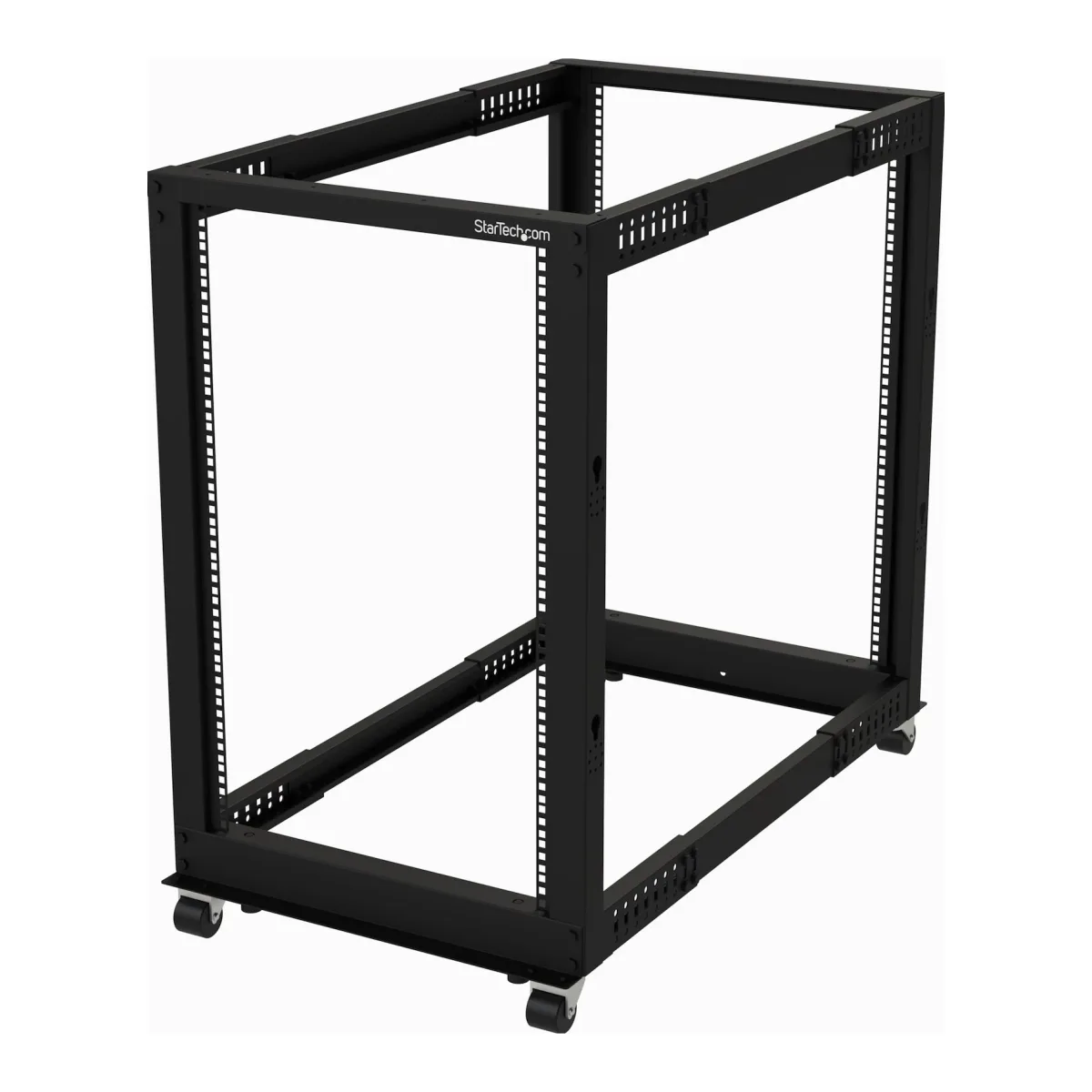

Startech 18U 19" Open Frame Server Rack, 4 Post Adjustable Depth 22-40" Mobile, Free Standing Rolling Network/Computer Equipment Data Rack, Dell PowerEdge, HP ProLiant ThinkServer - Adjustable Server Rack (4POSTRACK18U) - Rack open frame - 4-post - floor- is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030886833
| Rack capacity | 18U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 544 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Open |
| Product design | 4-post |
| Adjustable mounting rails | Yes |
| Cable management | Yes |
| Mounting hole shape | Square |

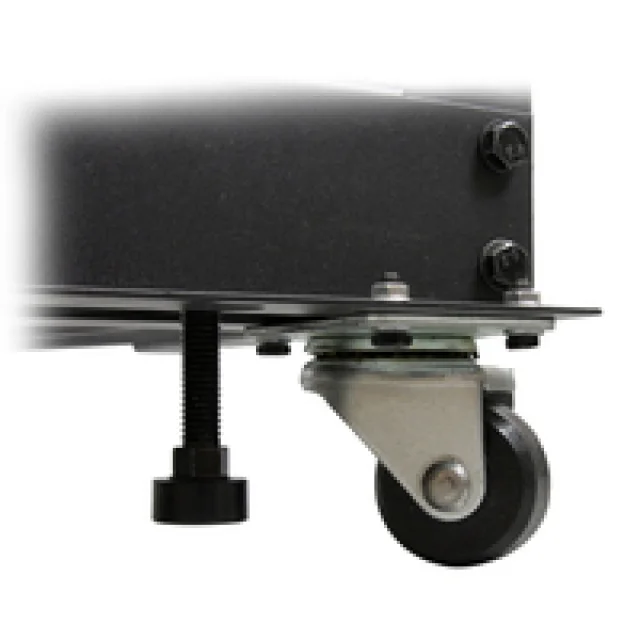

| Castor wheels | Yes |
| Width | 600 mm |
|---|---|
| Depth | 1100 mm |
| Height | 904 mm |
| Weight | 26.5 kg |
| Mounting depth (min) | 56.6 cm |
| Mounting depth (max) | 100 cm |
| Number of wrenches included | 2 |
|---|---|
| Nuts included | Yes |
| Number of screwdrivers | 1 |
| Number of grounding wires included | 4 |
| Number of nuts | 42 |
| Screws included | Yes |
| Number of screws | 104 |
| Number of leveling feets included | 4 pc(s) |
| Number of cable management hooks included | 8 pc(s) |
| Number of washers included | 96 |
| Manual | Yes |
| Package width | 250 mm |
| Package depth | 1420 mm |
| Package height | 130 mm |
| Package weight | 29.8 kg |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|---|
| Master (outer) case width | 810 mm |
| Master (outer) case length | 1445 mm |
| Master (outer) case height | 520 mm |
| Products per master (outer) case | 9 pc(s) |
| Compliance industry standards | EIA/ECA-310-E |
|---|
