Manufacturer Code: UNIRAILS1U
Overview

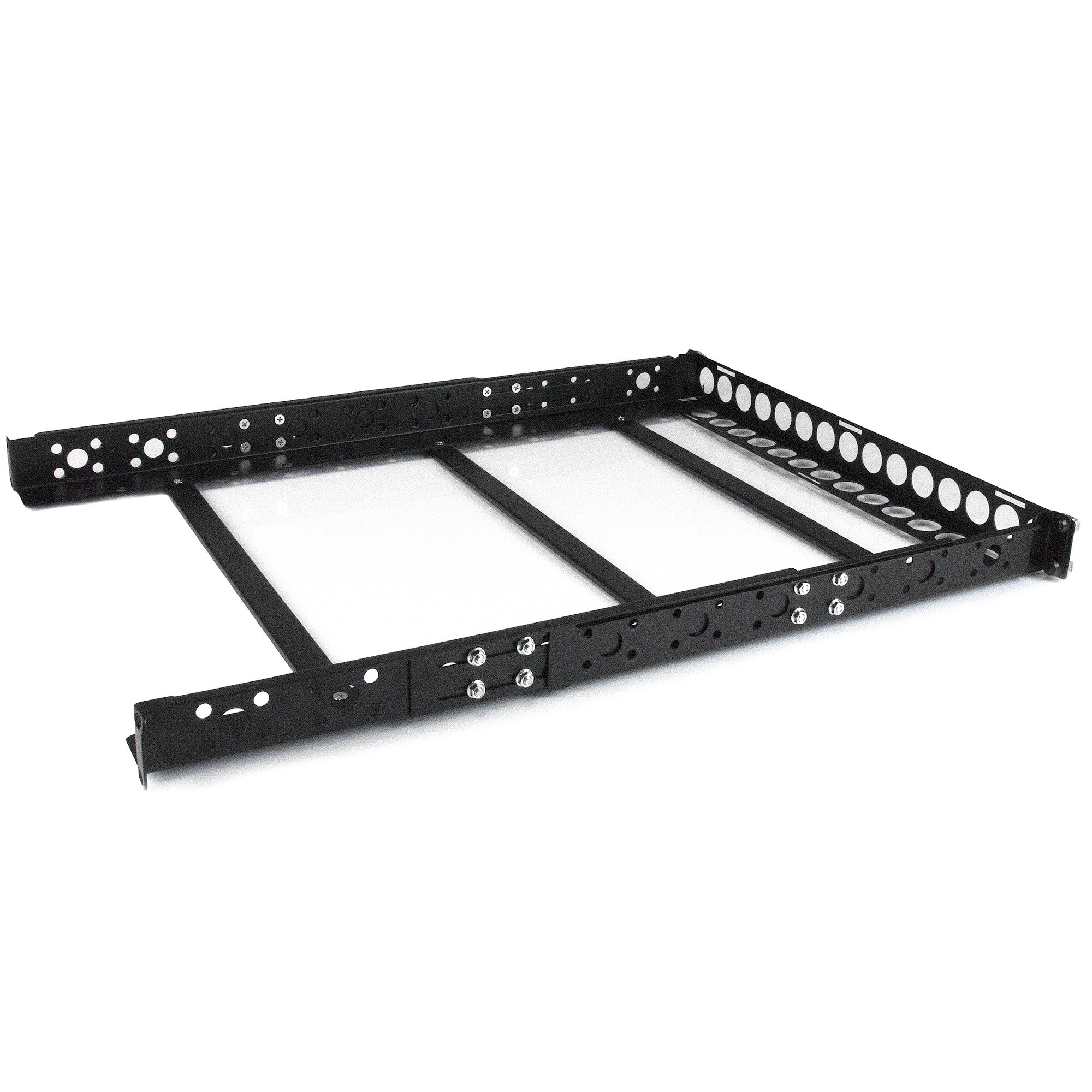

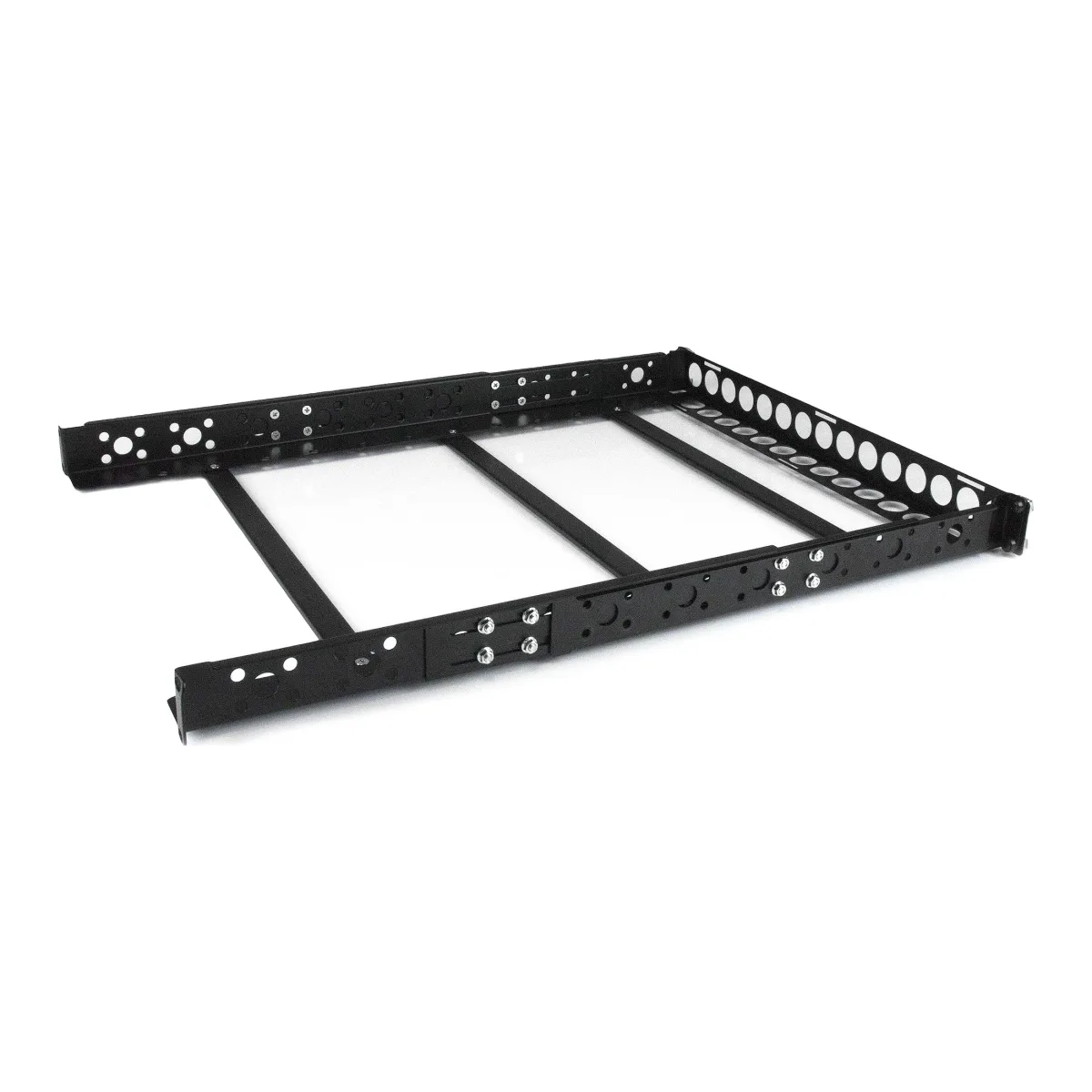

Startech 1U Universal Server Rack Rails - TAA Compliant Adjustable Depth Server Mounting Rails - 19inch Rack Mount Rails (UNIRAILS1U) - Rack rail - black - 1U - 19" - for P/N: RK2433BKM, RK2537BKM, RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RKQMCAB12V2 is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030845526
| Type | Rack rail |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Maximum weight capacity | 25 kg |
| Rack capacity | 1U |

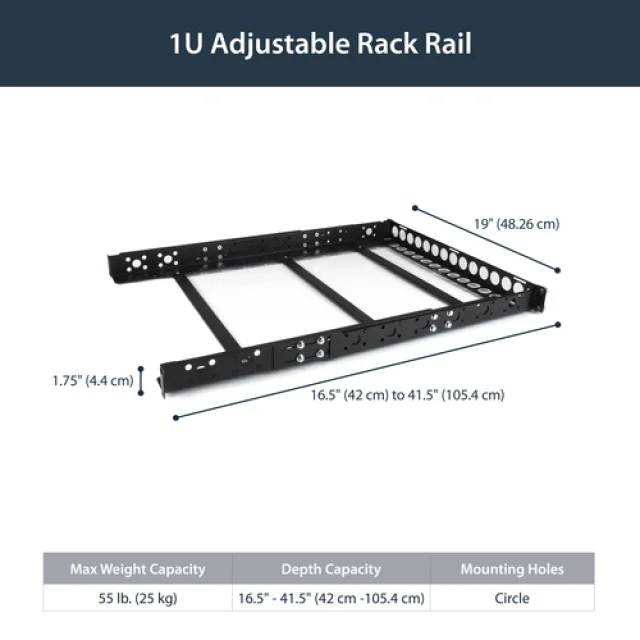

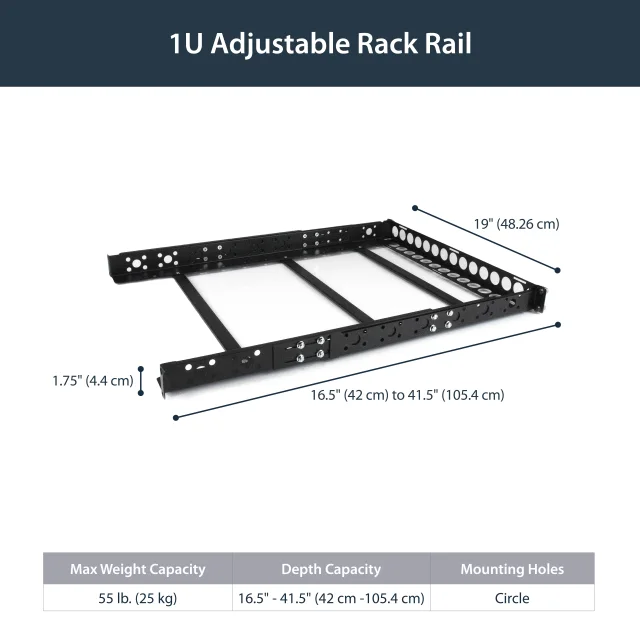

| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 481 mm |
| Depth | 1100 mm |
| Height | 42 mm |
| Mounting depth (min) | 42 cm |
| Mounting depth (max) | 105.4 cm |
| Weight | 2.6 kg |
| Package width | 107 mm |
|---|---|
| Package depth | 490 mm |
| Package height | 75 mm |
| Package weight | 2.9 kg |
| Mounting kit | Yes |
|---|---|
| Screws included | Yes |
| Screw type | M5 |
| Number of screws | 8 |
| Cage nuts included | Yes |
| Number of cage nuts | 8 |
| Compliance certificates | CE, RoHS |
|---|
| Master (outer) case width | 107 mm |
|---|---|
| Master (outer) case length | 490 mm |
| Master (outer) case height | 75 mm |
| Products per master (outer) case | 1 pc(s) |
| Harmonized System (HS) code | 85389099 |
