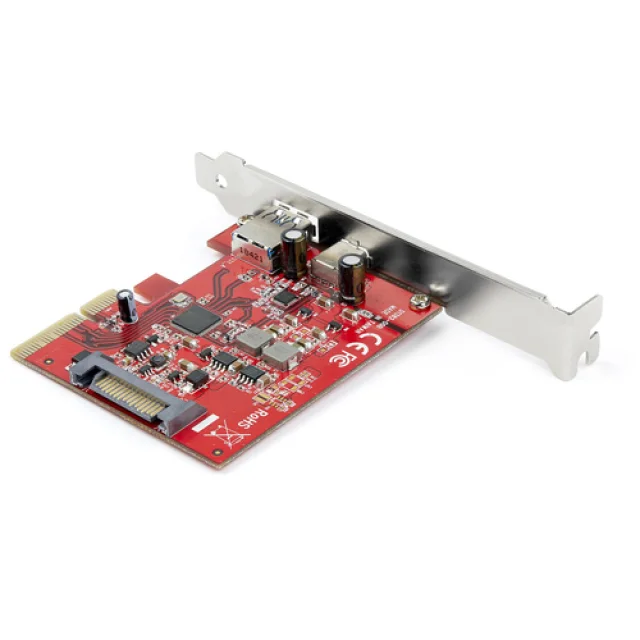

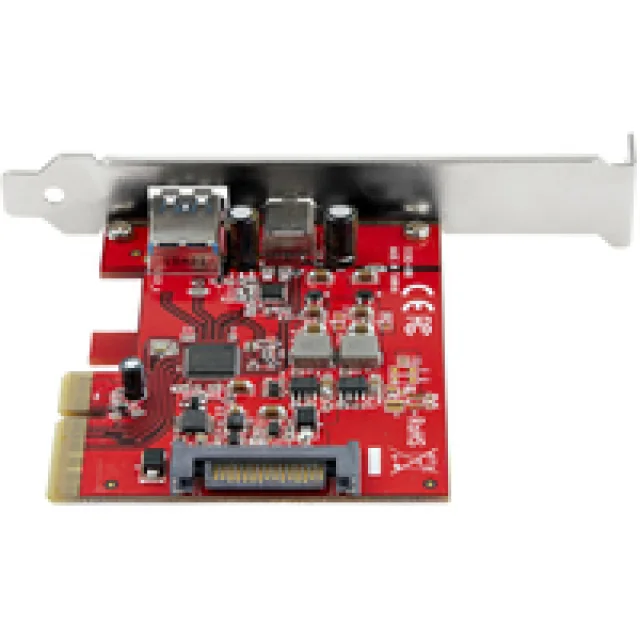

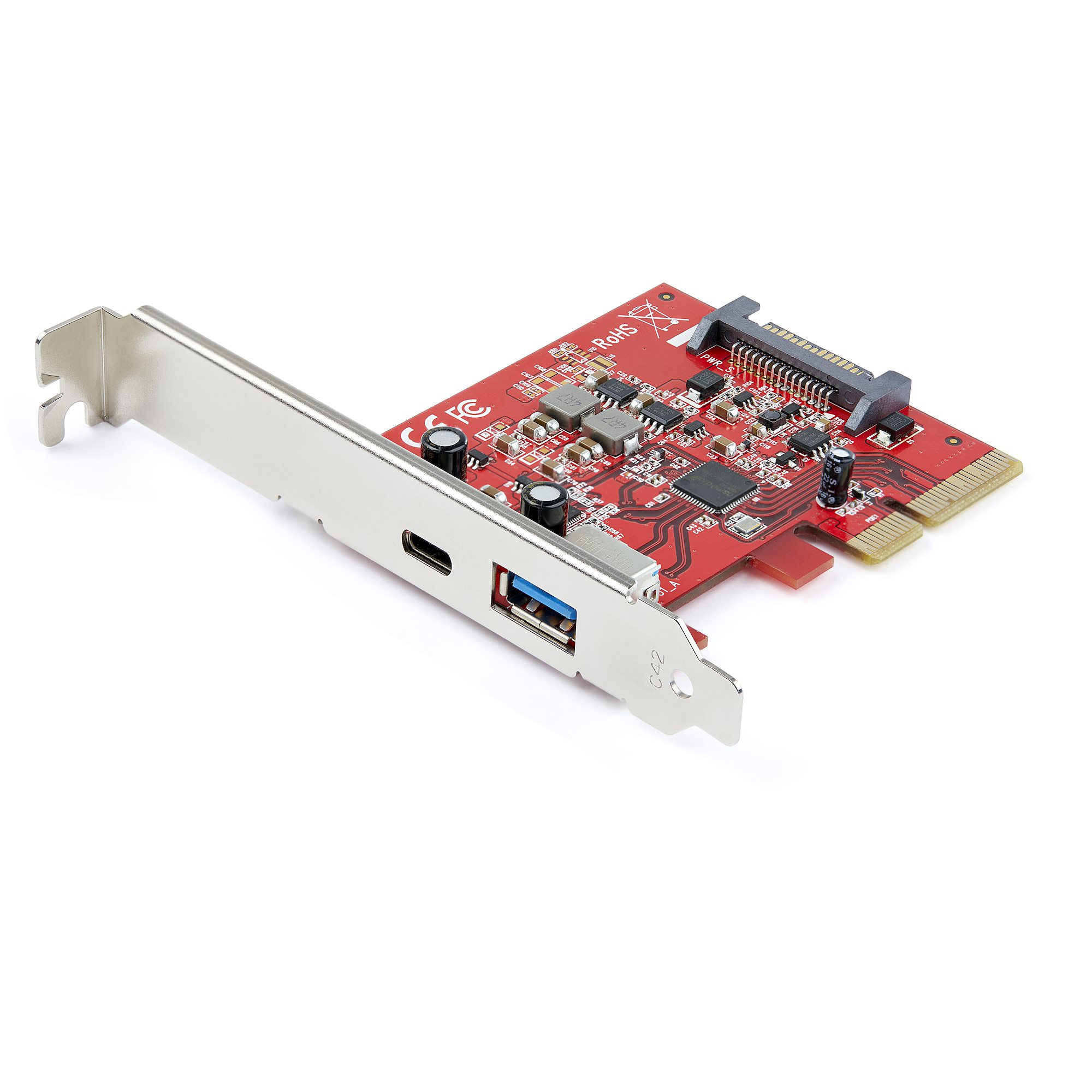

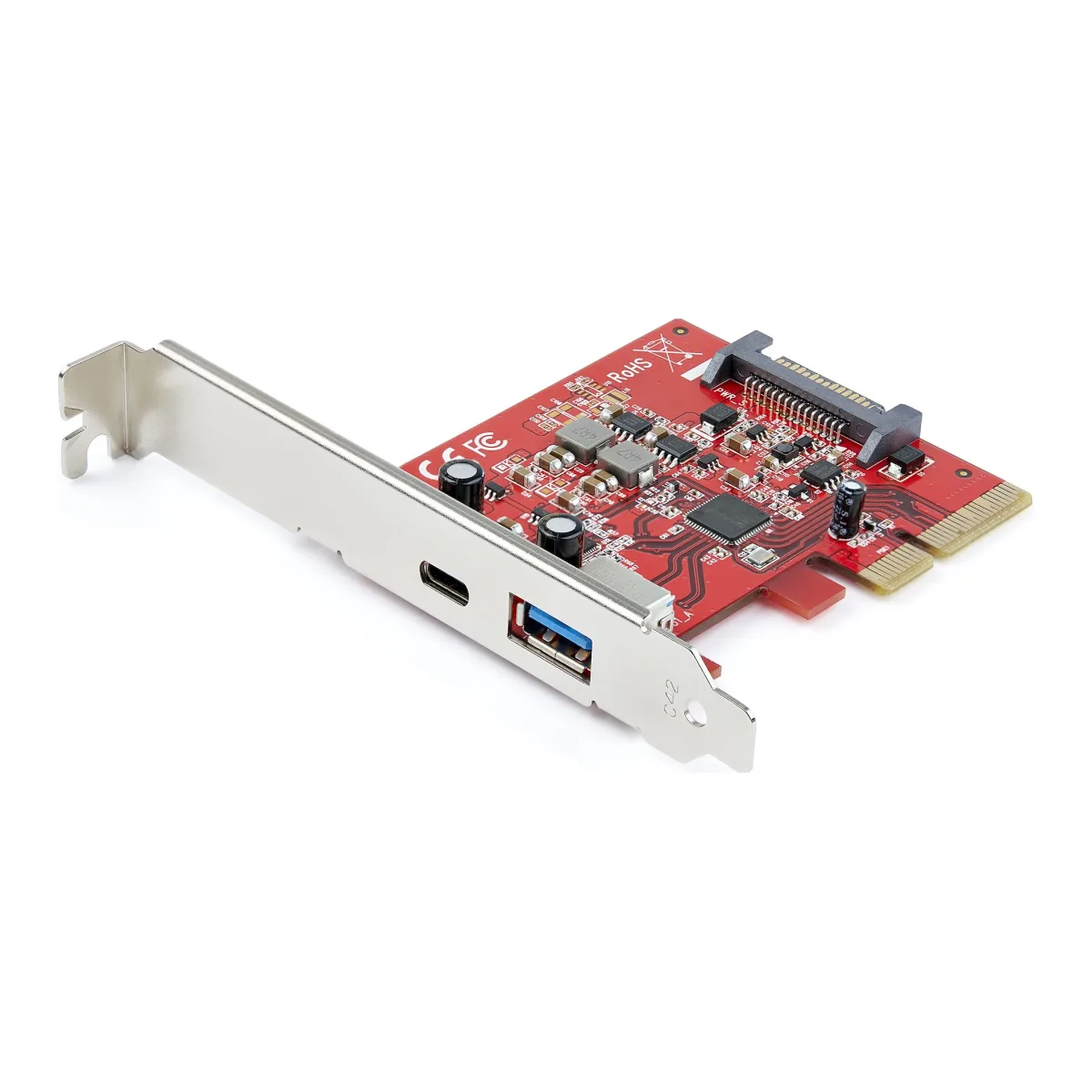

Startech 2-Port 10Gbps USB-A & USB-C PCIe Card, USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter, USB 3.2 Gen 2x1 PCIe Desktop Expansion Add-On Card, Windows/macOS/Linux - Full/Low-Profile - USB adapter - PCIe 3.0 x4 - USB-C 3.1 x 1 + USB 3.1 Gen 2 x 1 - for P/N: S251BMU313, S251BPU313, S252BU313R

Description

Manufacturer Code: PEXUSB311AC3

Overview

Startech 2-Port 10Gbps USB-A & USB-C PCIe Card, USB 3.1 Gen 2 PCI Express Type C/A Host Controller Card Adapter, USB 3.2 Gen 2x1 PCIe Desktop Expansion Add-On Card, Windows/macOS/Linux - Full/Low-Profile - USB adapter - PCIe 3.0 x4 - USB-C 3.1 x 1 + USB 3 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• Full/Low-Profile
• USB adapter
• PCIe 3.0 x4
• USB-C 3.1 x 1 + USB 3

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030887083

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 3.0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1

Design

Internal	Yes
Product colour	Red
Mean time between failures (MTBF)	2684396 h

Features

Chipset	ASMedia - ASM3142
Data transfer rate (max)	10 Gbit/s
UASP support	Yes

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Sustainability compliance	Yes
Compliance certificates	CE, RoHS

Weight & dimensions

Width	81 mm
Depth	120 mm
Height	19 mm
Weight	48 g

Packaging data

Mounting brackets included	Yes
Quick installation guide	Yes
Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	123 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	60 pc(s)
Master (outer) case width	370 mm
Master (outer) case length	365 mm
Master (outer) case height	500 mm
