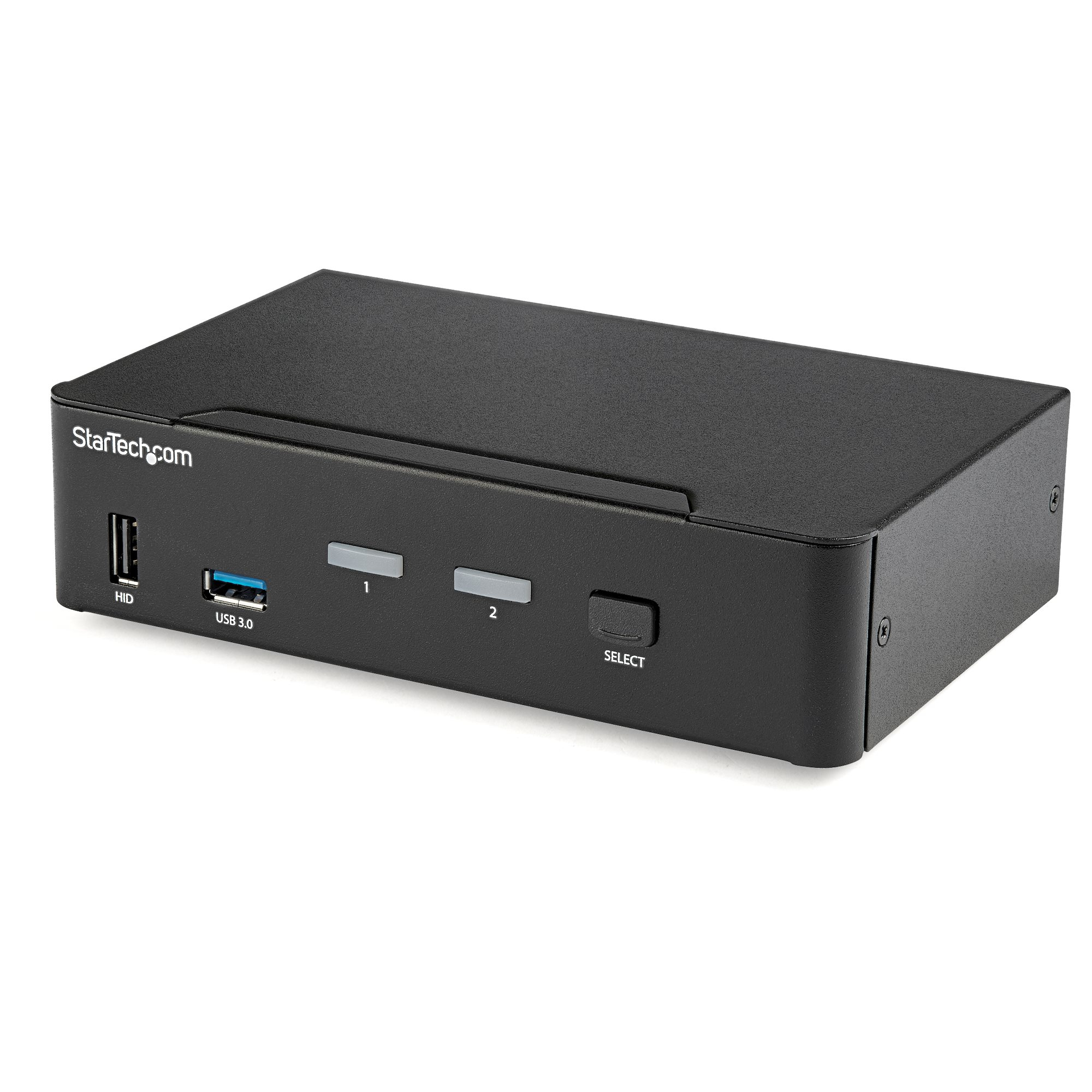

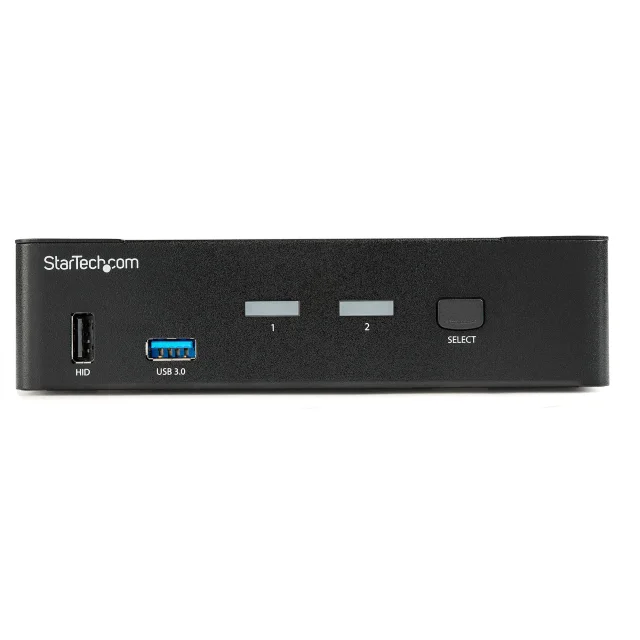

Startech 2 Port DisplayPort KVM Switch, 4K 60Hz, Single Display, Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub and Audio, Dell, HP, Apple, Lenovo, TAA Compliant - Keyboard/Video/Mouse Switch (SV231DPU34K) - KVM / audio / USB switch - 2 x KVM / audio / USB - desktop - TAA Compliant

Description

Manufacturer Code: SV231DPU34K

Overview

Startech 2 Port DisplayPort KVM Switch, 4K 60Hz, Single Display, Dual Port UHD DP 1.2 USB KVM Switch with Integrated USB 3.0 Hub and Audio, Dell, HP, Apple, Lenovo, TAA Compliant - Keyboard/Video/Mouse Switch (SV231DPU34K) - KVM / audio / USB switch - 2 x is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• Keyboard/Video/Mouse Switch (SV231DPU34K)
• KVM / audio / USB switch
• 2 x

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030880121

Specifications

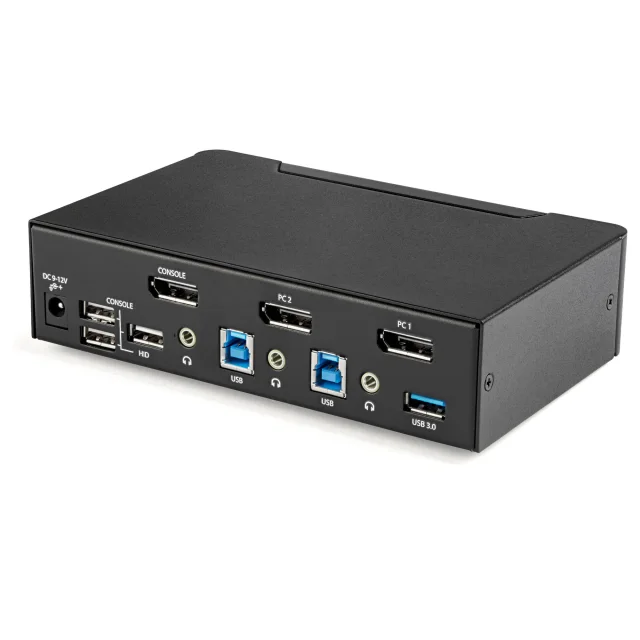

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	3
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
Console USB ports quantity	6
USB connector type	USB Type-A, USB Type-B
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes

Performance

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Daisy chain	No
Number of users	1 user(s)
Audio channels	2.0

Design

Product colour	Black
Housing material	Steel
LED indicators	Yes
Hot keys	Yes
Mean time between failures (MTBF)	60000 h
Certification	CE, FCC, TAA, REACH

Display

Built-in display	No
On Screen Display (OSD)	No

Power

Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	18 W
External power adapter	Yes
Power plug type	Type M
Compatible power plug types	AU, EU, JP, UK, US

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	160 mm
Depth	100 mm
Height	40 mm
Weight	1.1 kg

Packaging data

Package width	189 mm
Package depth	238 mm
Package height	91 mm

Packaging content

Quick installation guide	Yes
AC adapter included	Yes
Rubber feet	Yes

Other features

IP control	No

Logistics data

Harmonized System (HS) code	85176200
Master (outer) case width	318 mm
Master (outer) case length	389 mm
Master (outer) case height	285 mm
Products per master (outer) case	6 pc(s)
