Manufacturer Code: D86A2-2-PORT-8K-KVM
Overview

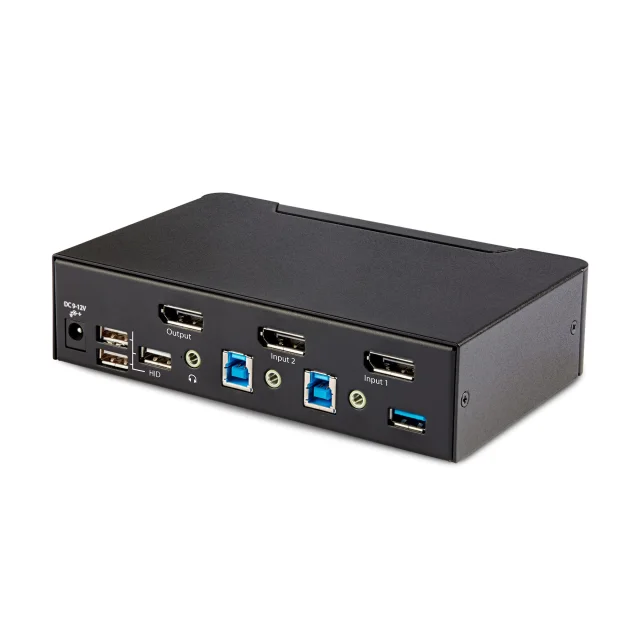

Startech 2-Port DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, Single Display, DP 1.4, 2x USB 3.0 Ports, 4x USB 2.0 HID Ports, Push-Button & Hotkey Switching, TAA Compliant - OS Independent, Metal Housing (D86A2-2-PORT-8K-KVM) - KVM / audio / USB switch - 2 is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030894906
| Number of computers controlled | 2 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 2 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 6 |
| Console DisplayPorts ports quantity | 1 |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| HD type | 8K Ultra HD |
|---|---|
| Maximum resolution | 7680 x 4320 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP | Yes |
| Plug and Play | Yes |
| Daisy chain | No |
| Chipset | GL-3523 |
| HDCP version | 1.4/2.2 |
| Rack mounting | No |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 130000 h |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Power source | DC |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Compatible power plug types | EU, JP, UK, US |
| Sustainability compliance | Yes |
|---|---|
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 100 mm |
|---|---|
| Depth | 160 mm |
| Height | 40 mm |
| Weight | 600 g |
| Package width | 238 mm |
|---|---|
| Package depth | 184 mm |
| Package height | 89 mm |
| Package weight | 1 kg |
| Quick installation guide | Yes |
|---|---|
| Rubber feet | Yes |
| IP control | No |
|---|
| Master (outer) case width | 397 mm |
|---|---|
| Master (outer) case length | 257 mm |
| Master (outer) case height | 300 mm |
