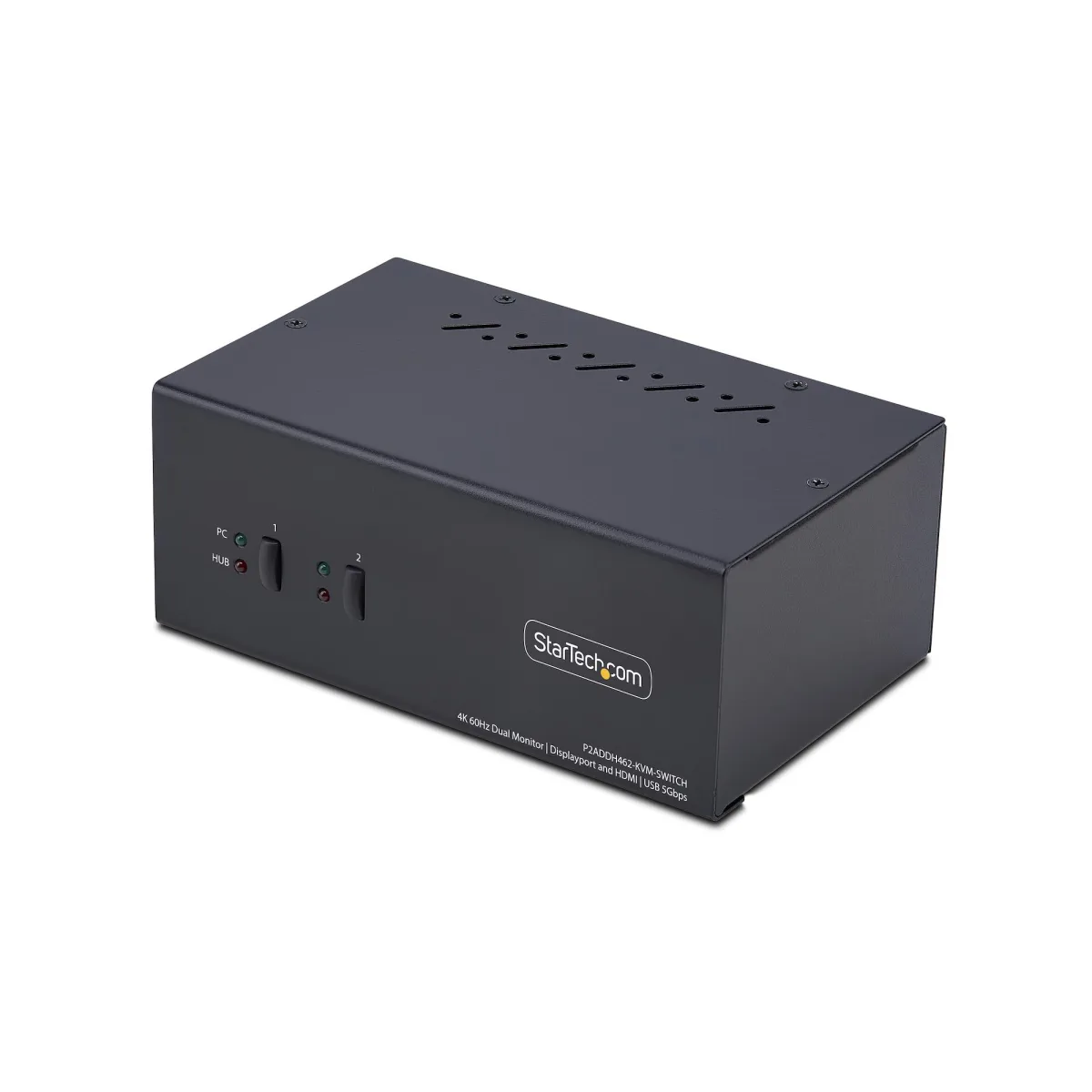

Startech 2-Port Dual-Monitor DisplayPort en HDMI KVM Switch, 4K 60Hz - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant

Description

Manufacturer Code: P2ADDH462-KVM-SWITCH

Overview

Startech 2-Port Dual-Monitor DisplayPort en HDMI KVM Switch, 4K 60Hz - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• KVM / audio / USB switch
• 2 x KVM / audio / USB
• 1 local user
• desktop
• TAA Compliant

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030909129

Specifications

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI/DisplayPort
HDMI ports quantity	2
HDMI version	2.0
DisplayPorts quantity	2
DisplayPort version	1.2
USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity	2

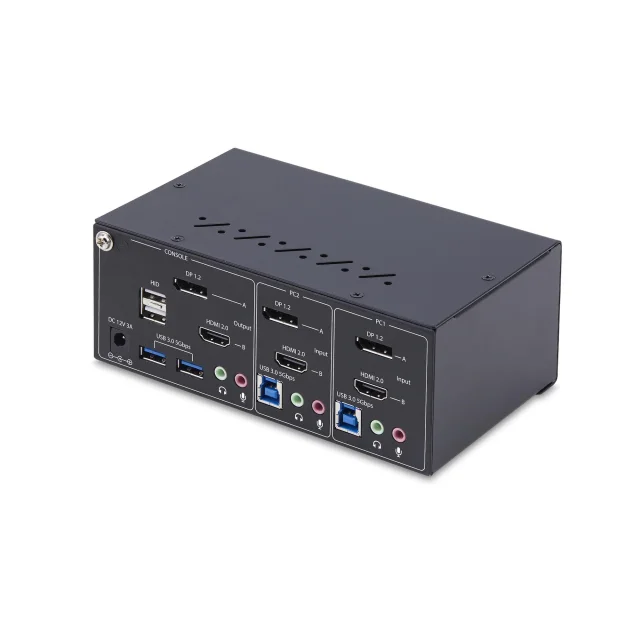

Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, HDMI, USB A
Console USB ports quantity	2
Console DisplayPorts ports quantity	1
Console HDMI ports quantity	1
USB hub	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	2
Audio connections	Yes
Headphone outputs	3
Number of microphone inputs	3
DC-in jack	Yes

Performance

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	5 Gbit/s
Audio channels	7.1

Design

Rack mounting	No
Product colour	Black
LED indicators	Yes
Mean time between failures (MTBF)	138390 h

Display

Built-in display	No

Power

Input voltage	100 - 240 V
Input current	1 A
Output voltage	12 V
Output current	3 A
Power consumption (typical)	36 W
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US

Sustainability

Compliance certificates	RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	100 mm
Depth	163 mm
Height	66 mm
Weight	750 g

Packaging data

Package width	332 mm
Package depth	162 mm
Package height	128 mm
Package weight	128 g

Packaging content

Quick installation guide	Yes

Other features

IP control	No
