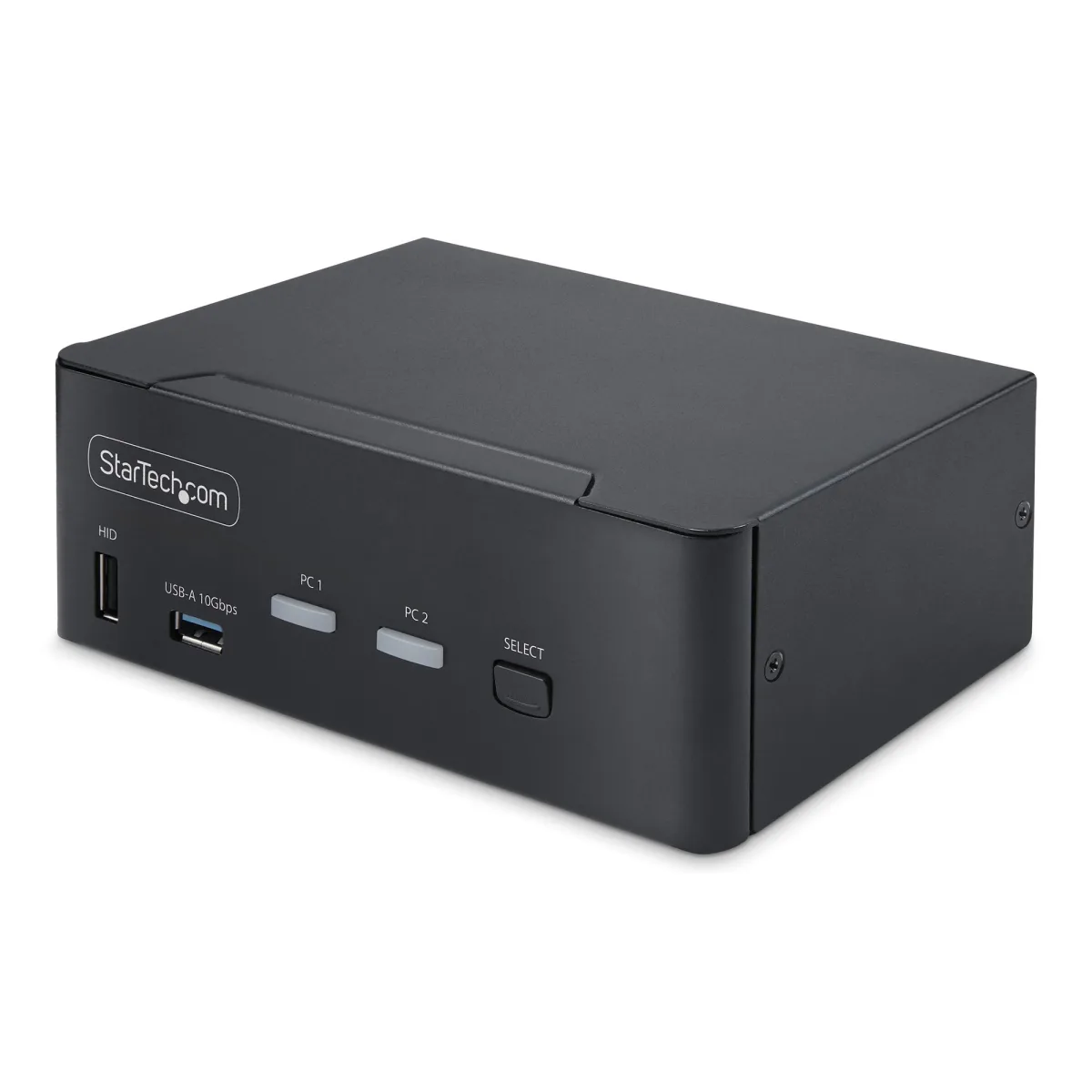

Startech 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant

Description

Manufacturer Code: P2CDD143-KVM-SWITCH

Overview

Startech 2-Port Dual-Monitor DisplayPort KVM Switch, 8K 60Hz / 4K 144Hz, DP 1.4, 2x USB 10Gbps Ports, 4x USB HID Ports, Hotkey Switching, TAA Compliant - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• KVM / audio / USB switch
• 2 x KVM / audio / USB
• 1 local user
• desktop
• TAA Compliant

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030907712

Specifications

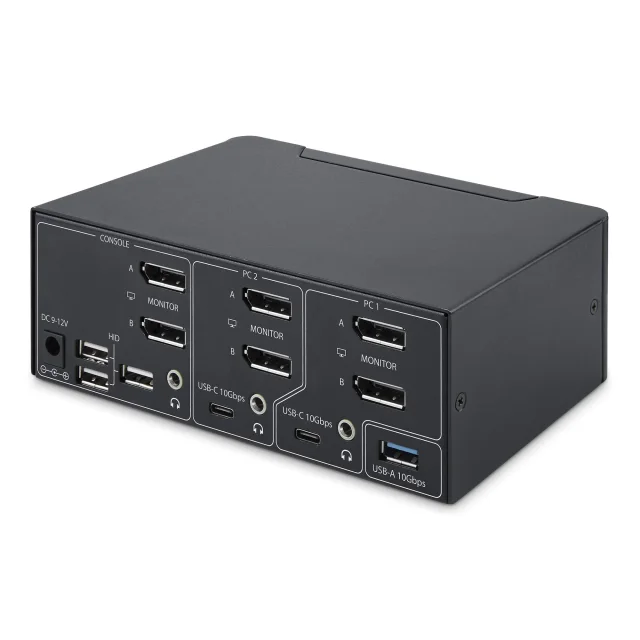

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPorts quantity	4
DisplayPort version	1.4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Console ports	3.5mm headphone, DisplayPort, USB A
Console USB ports quantity	3
Console DisplayPorts ports quantity	2
USB hub	Yes
USB 2.0 ports quantity	1
Audio connections	Yes
Headphone outputs	3
DC-in jack	Yes

Performance

HD type	8K Ultra HD
Maximum resolution	7680 x 4320 pixels
Data transfer rate (max)	10 Gbit/s
Scan interval	3,8,15,30 s
High Dynamic Range (HDR) supported	Yes
Number of users	1 user(s)
Maximum refresh rate	144 Hz
Chipset	Genesys Logic - GL3590
Number of displays supported	2

Design

Rack mounting	No
Product colour	Black
Housing material	Metal
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Mean time between failures (MTBF)	168000 h

Display

Built-in display	No
On Screen Display (OSD)	No

Power

Input voltage	100 - 240 V
Input current	1 A
Output voltage	12 V
Output current	3 A
Power consumption (typical)	36 W
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US

Sustainability

Compliance certificates	RoHS, Trade Agreements Act (TAA)

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	100 mm
Depth	160 mm
Height	60 mm
Weight	800 g

Packaging data

Package width	238 mm
Package depth	184 mm
Package height	89 mm
Package weight	1.4 kg

Packaging content

Cables included	USB Type-A to USB Type-C
Quick installation guide	Yes
Rubber feet	Yes

Other features

IP control	No
