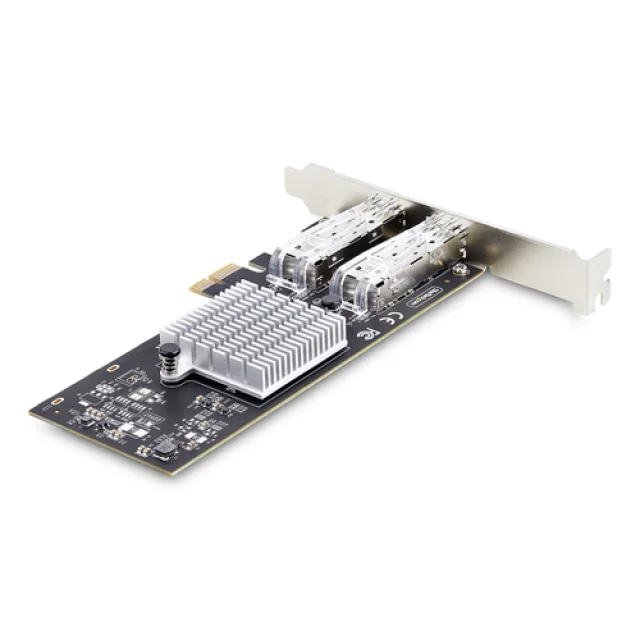

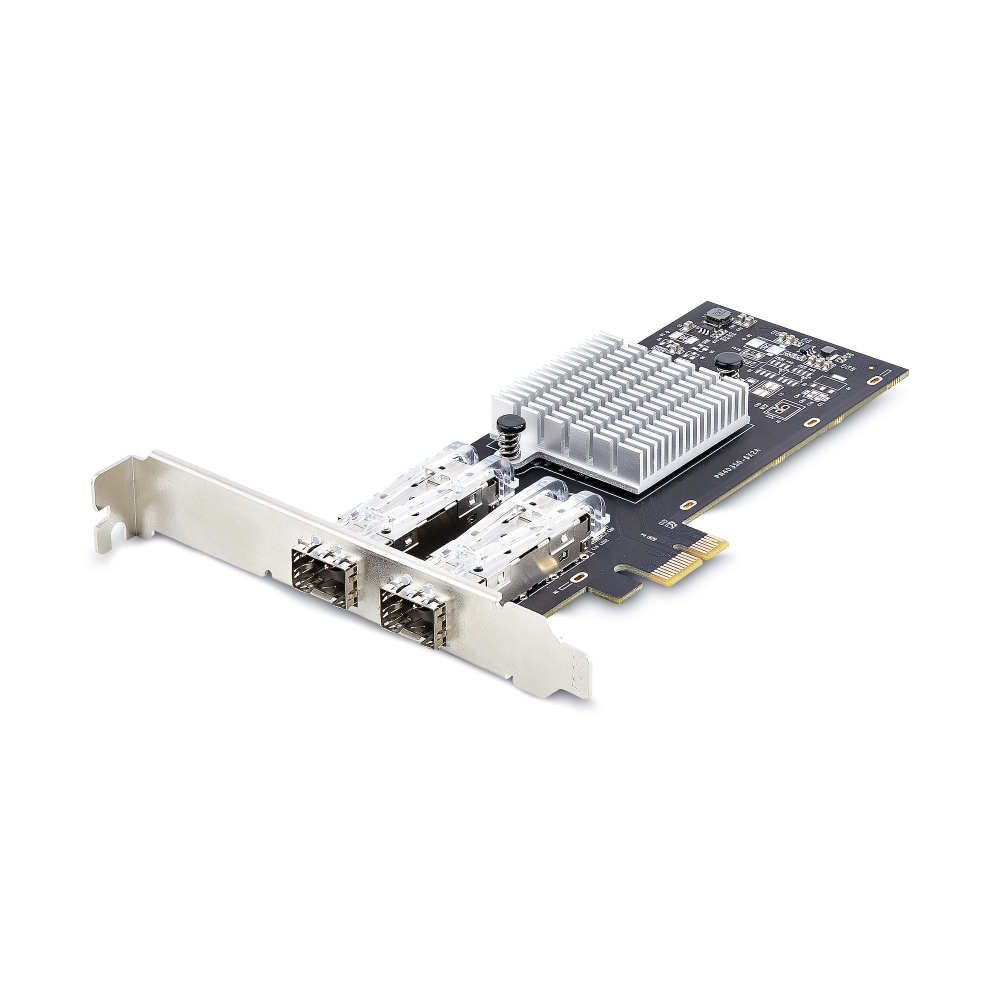

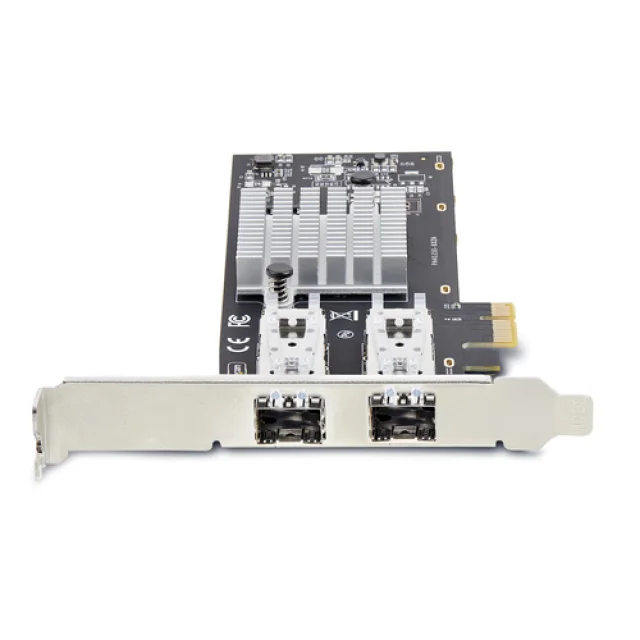

Startech 2-Port GbE SFP Network Card, PCIe 2.0 x1, Intel I350-AM2 2x 1GbE Controller, 1000BASE Copper/Fiber Optic, Dual-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible (P021GI-NETWORK-CARD) - Network adapter - PCIe 2.0 - Gigabit SFP x 2 - black

Description

Manufacturer Code: P021GI-NETWORK-CARD

Overview

Startech 2-Port GbE SFP Network Card, PCIe 2.0 x1, Intel I350-AM2 2x 1GbE Controller, 1000BASE Copper/Fiber Optic, Dual-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible (P021GI-NETWORK-CARD) - Network adapter - PCIe 2.0 is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• Windows and Linux Compatible (P021GI-NETWORK-CARD)
• Network adapter
• PCIe 2.0

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030899918

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	PCI Express
Interface	Fiber
Fiber ports quantity	2
Fiber optic connector	SFP
PCI version	2.0

Network

Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	9000
Supported network protocols	IPv4, IPv6, TCP/UDP

Design

Component for	PC
Product colour	Black
Internal	Yes
LED indicators	Speed, Status

Power

Power consumption (typical)	2.8 W

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 90%

Weight & dimensions

Width	68 mm
Depth	147 mm
Height	10 mm

Packaging data

Package width	140 mm
Package depth	170 mm
Package height	30 mm
Package weight	105 g

Packaging content

Mounting brackets included	Yes
Quick installation guide	Yes

Logistics data

Master (outer) case width	603 mm
Master (outer) case length	325 mm
Master (outer) case height	385 mm
Products per master (outer) case	80 pc(s)
