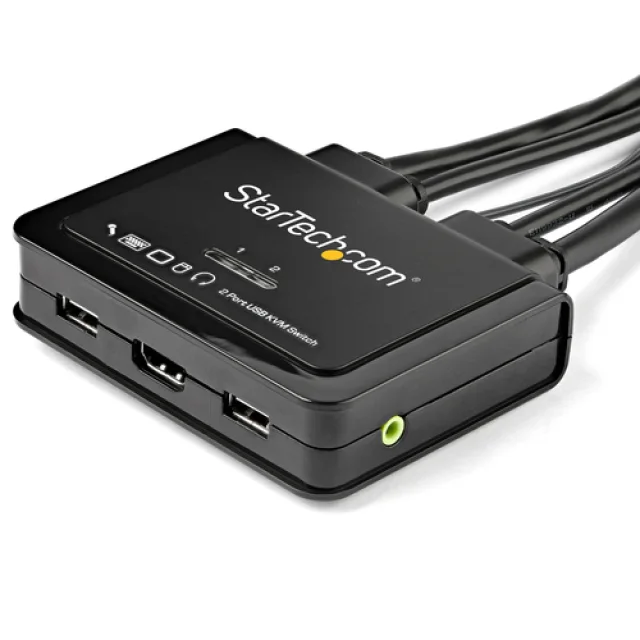

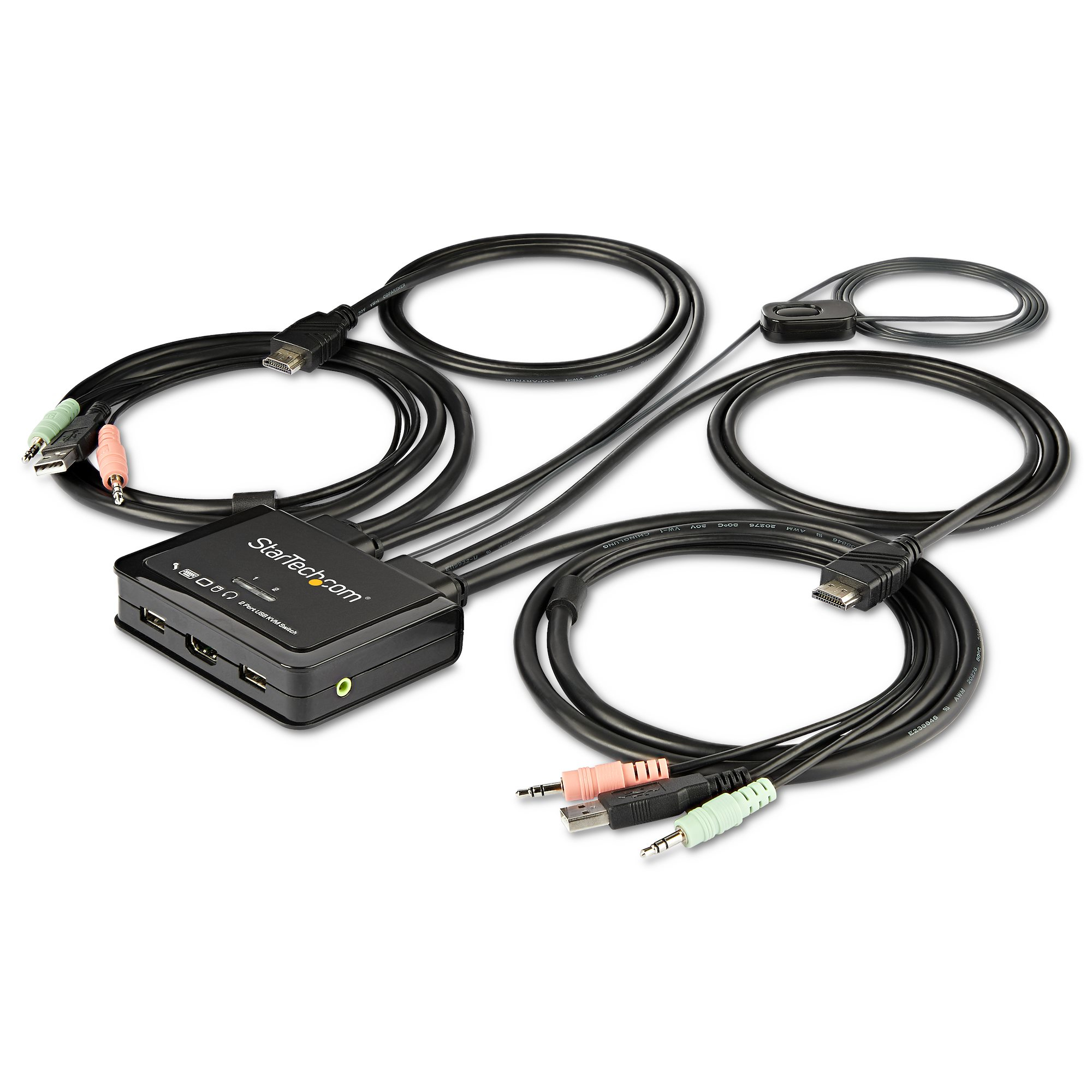

Startech 2 Port HDMI KVM Switch, 4K 60Hz, Compact Dual Port UHD/Ultra HD USB Desktop KVM Switch with Integrated 4ft Cables & Audio, Bus Powered & Remote Switching, MacBook ThinkPad - 4K KVM Switch w/ Audio (SV211HDUA4K) - KVM / audio switch - 2 x KVM / audio - 1 local user - desktop

Description

Manufacturer Code: SV211HDUA4K

Overview

Startech 2 Port HDMI KVM Switch, 4K 60Hz, Compact Dual Port UHD/Ultra HD USB Desktop KVM Switch with Integrated 4ft Cables & Audio, Bus Powered & Remote Switching, MacBook ThinkPad - 4K KVM Switch w/ Audio (SV211HDUA4K) - KVM / audio switch - 2 x KVM / au is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• 4K KVM Switch w/ Audio (SV211HDUA4K)
• KVM / audio switch
• 2 x KVM / au

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030882163

Specifications

Ports & interfaces

Number of computers controlled	1
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
Console ports	3.5mm headphone, 3.5mm mic, HDMI, USB A
Console USB ports quantity	2
USB connector type	USB Type-A
Audio connections	Yes

Performance

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Data transfer rate (max)	0.48 Gbit/s
Scan interval	10,20,30,40,50,60 s
Daisy chain	No

Design

Rack mounting	No
Product colour	Black
LED indicators	Yes
Hot keys	Yes
Mean time between failures (MTBF)	1012884 h
Certification	CE, FCC, REACH

Display

Built-in display	No
On Screen Display (OSD)	No

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	97 mm
Depth	1320 mm
Height	25 mm
Weight	431 g

Packaging data

Package width	250 mm
Package depth	160 mm
Package height	63 mm
Package weight	522 g

Packaging content

Quick installation guide	Yes

Other features

IP control	No

Logistics data

Harmonized System (HS) code	85176200
Master (outer) case width	353 mm
Master (outer) case length	443 mm
Master (outer) case height	345 mm
Products per master (outer) case	20 pc(s)
