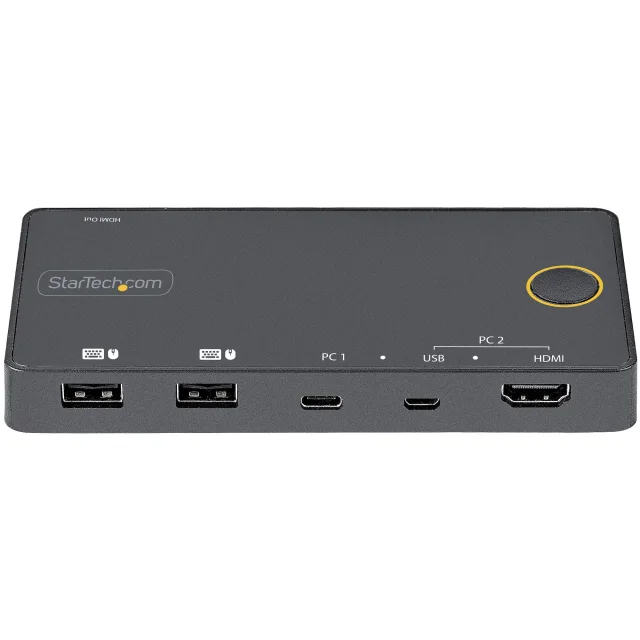

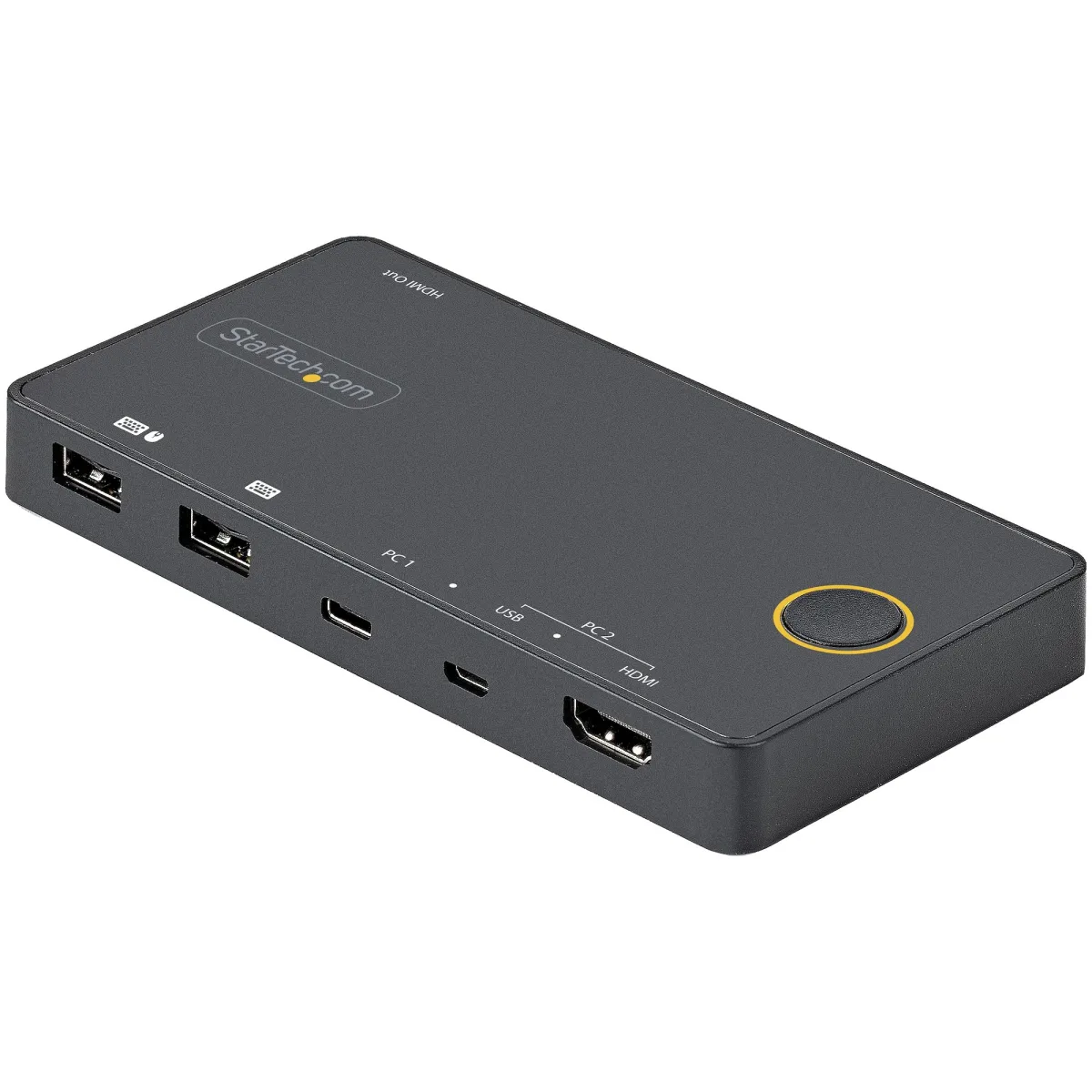

Startech 2 Port Hybrid USB-A + HDMI & USB-C KVM Switch, Single 4K 60Hz HDMI 2.0 Monitor, Compact Desktop and/or Laptop HDMI KVM Switch, USB Bus Powered, Thunderbolt 3 Compatible - 2 Port HDMI KVM Switch (SV221HUC4K) - KVM / audio switch - 2 x KVM / audio - desktop

Description

Manufacturer Code: SV221HUC4K

Overview

Startech 2 Port Hybrid USB-A + HDMI & USB-C KVM Switch, Single 4K 60Hz HDMI 2.0 Monitor, Compact Desktop and/or Laptop HDMI KVM Switch, USB Bus Powered, Thunderbolt 3 Compatible - 2 Port HDMI KVM Switch (SV221HUC4K) - KVM / audio switch - 2 x KVM / audio is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• 2 Port HDMI KVM Switch (SV221HUC4K)
• KVM / audio switch
• 2 x KVM / audio

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030891820

Specifications

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	HDMI
HDMI ports quantity	2
HDMI version	2.0
DisplayPort version	1.2
USB connector type	Micro-USB B, USB Type-A, USB Type-C

Performance

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
Video bandwidth	60 Hz
Data transfer rate (max)	0.48 Gbit/s
Daisy chain	No
Chipset	Parade - PS176, VLI - VL170, Terminus - FE1.1S
Audio channels	7.1
Number of displays supported	1

Design

Rack mounting	No
Product colour	Black
LED indicators	Yes
Push button	Yes
Hot keys	No
Mean time between failures (MTBF)	50000 h

Display

Built-in display	No
On Screen Display (OSD)	No

Power

USB powered	Yes

Operational conditions

Operating temperature (T-T)	5 - 55 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Weight & dimensions

Width	138 mm
Depth	70 mm
Height	15 mm
Weight	200 g

Packaging data

Package width	120 mm
Package depth	172 mm
Package height	85 mm
Package weight	250 g

Packaging content

Cables included	HDMI, Micro-USB, USB Type-C to USB Type-C
Quick installation guide	Yes

Other features

IP control	No

Logistics data

Harmonized System (HS) code	85176200
Master (outer) case width	410 mm
Master (outer) case length	470 mm
Master (outer) case height	370 mm
Products per master (outer) case	20 pc(s)
