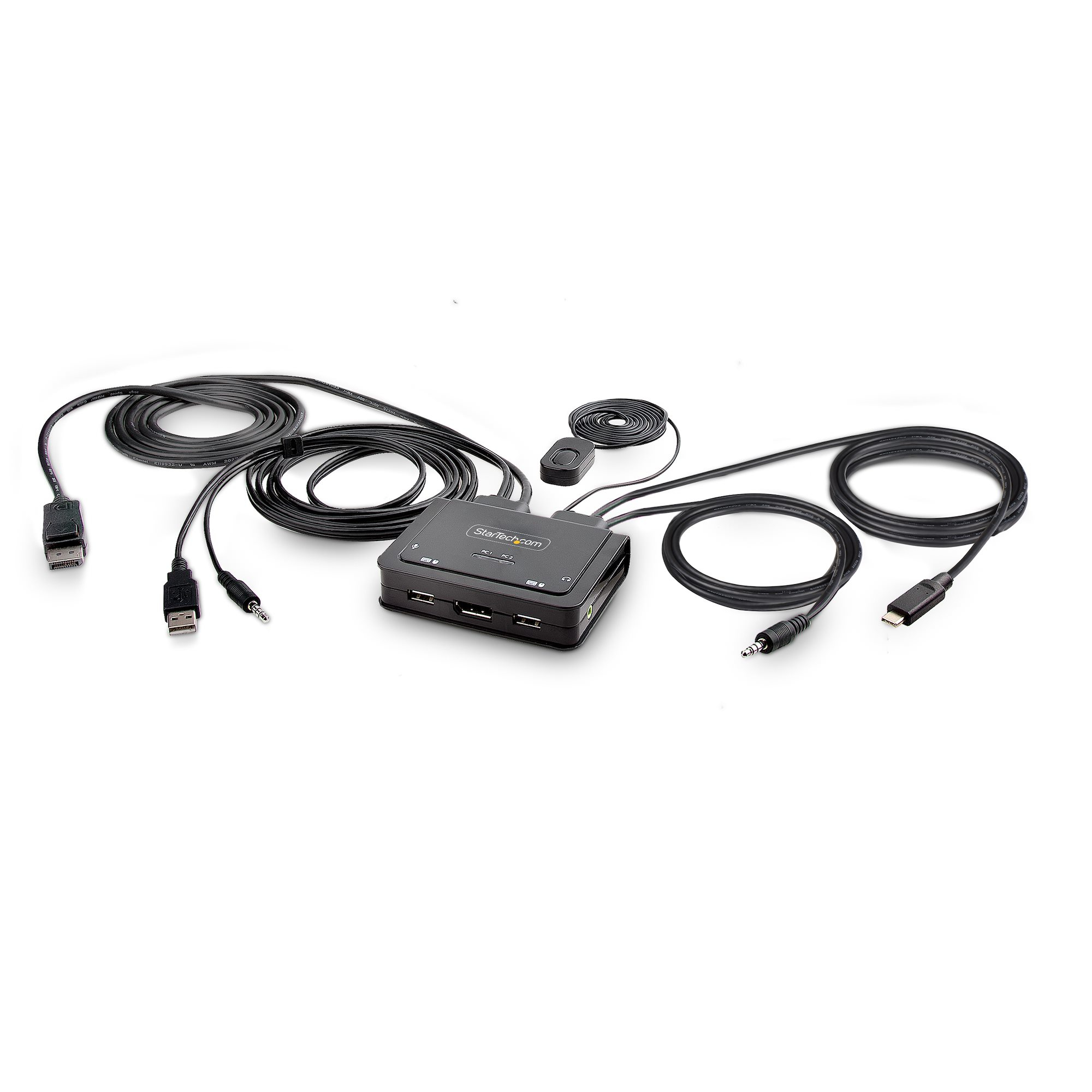

Startech 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered - Remote Push Button/Hotkey Switching (C2-D46-UAC-CBL-KVM) - KVM / audio / USB switch - compact - 2 x KVM / audio / USB - 1 local user - desktop

Description

Manufacturer Code: C2-D46-UAC-CBL-KVM

Overview

Startech 2-Port Hybrid USB-C DisplayPort Cable KVM Switch, 4K 60Hz, Compact KVM with 6ft/1.8m USB-A/DisplayPort/Audio & 4ft/1.2m USB-C Integrated Host Cables, Bus Powered - Remote Push Button/Hotkey Switching (C2-D46-UAC-CBL-KVM) - KVM / audio / USB switc is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• Remote Push Button/Hotkey Switching (C2-D46-UAC-CBL-KVM)
• KVM / audio / USB switc

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030899338

Specifications

Ports & interfaces

Number of computers controlled	2
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
DisplayPort version	1.2
Console ports	3.5mm headphone, 3.5mm mic, DisplayPort, USB A
Console USB ports quantity	2
Console DisplayPorts ports quantity	1
USB connector type	USB Type-A, USB Type-C
Headphone outputs	1
Number of microphone inputs	1

Network

Ethernet LAN	No

Performance

Maximum resolution	5120 x 1440 pixels
Data transfer rate (max)	0.48 Gbit/s
Scan interval	10,20,30,40,50,60 s
Daisy chain	No
Chipset	SN8P2202SG
Audio channels	2.0
Number of displays supported	1

Design

Rack mounting	No
Product colour	Black
Housing material	Acrylonitrile butadiene styrene (ABS)
Cable length	1.8 m
LED indicators	Yes
Push button	Yes
Hot keys	Yes
Mean time between failures (MTBF)	261196 h

Display

Built-in display	No
On Screen Display (OSD)	No

Power

Power source	USB
Input voltage	5 V

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey
Other operating systems supported	ChromeOS

Sustainability

Sustainability compliance	Yes
Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Width	80 mm
Depth	95 mm
Height	24 mm
Weight	380 g

Packaging data

Package width	160 mm
Package depth	210 mm
Package height	60 mm
Package weight	500 g

Packaging content

Quick installation guide	Yes

Other features

IP control	No

Logistics data

Master (outer) case width	345 mm
Master (outer) case length	440 mm
Master (outer) case height	345 mm
Products per master (outer) case	20 pc(s)
