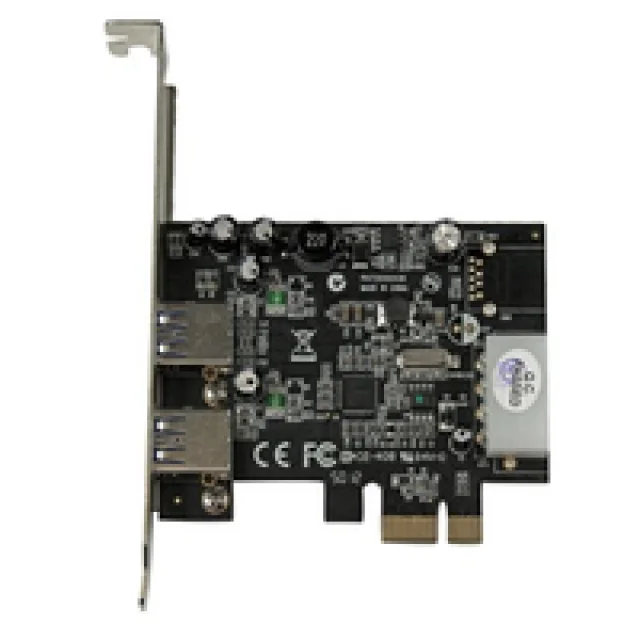

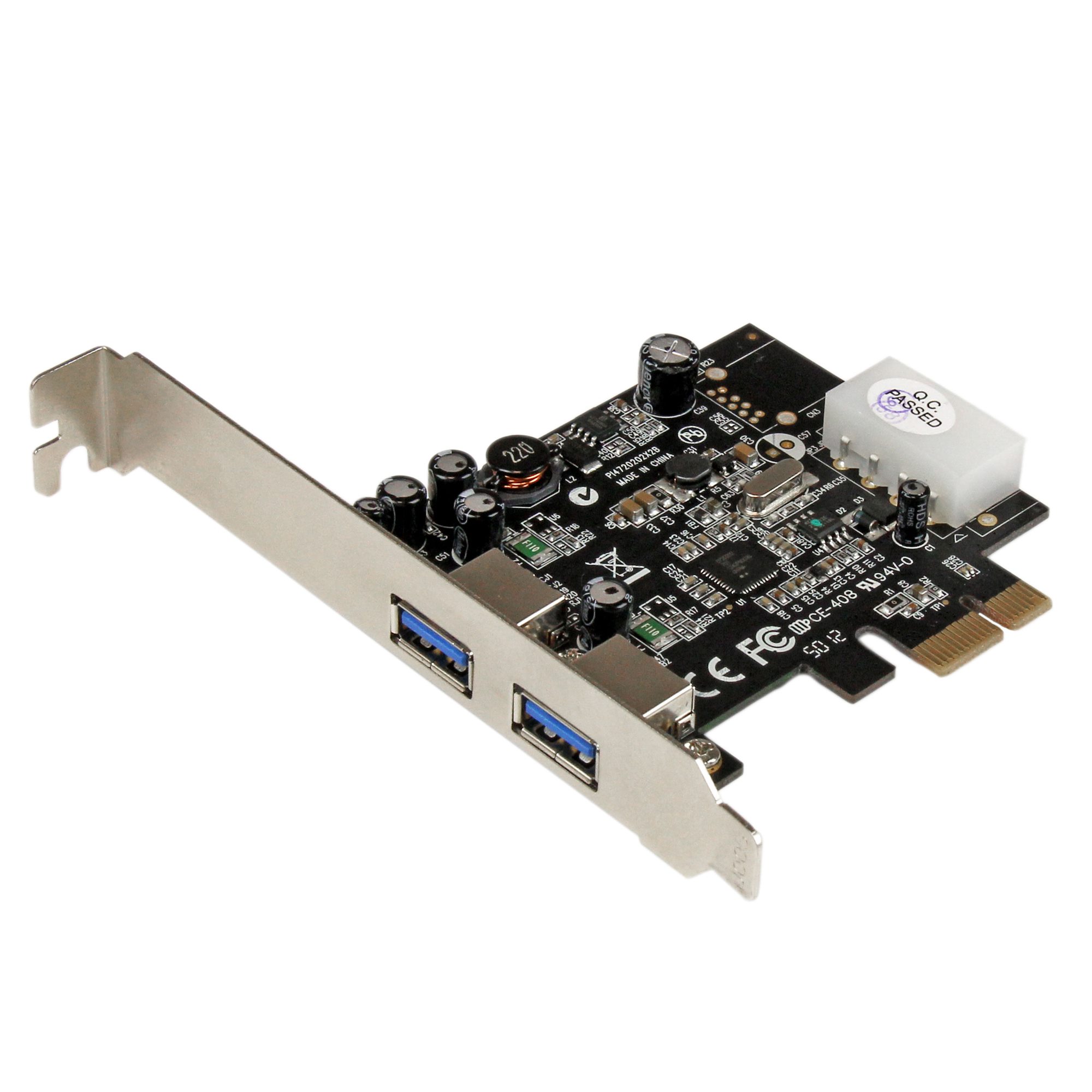

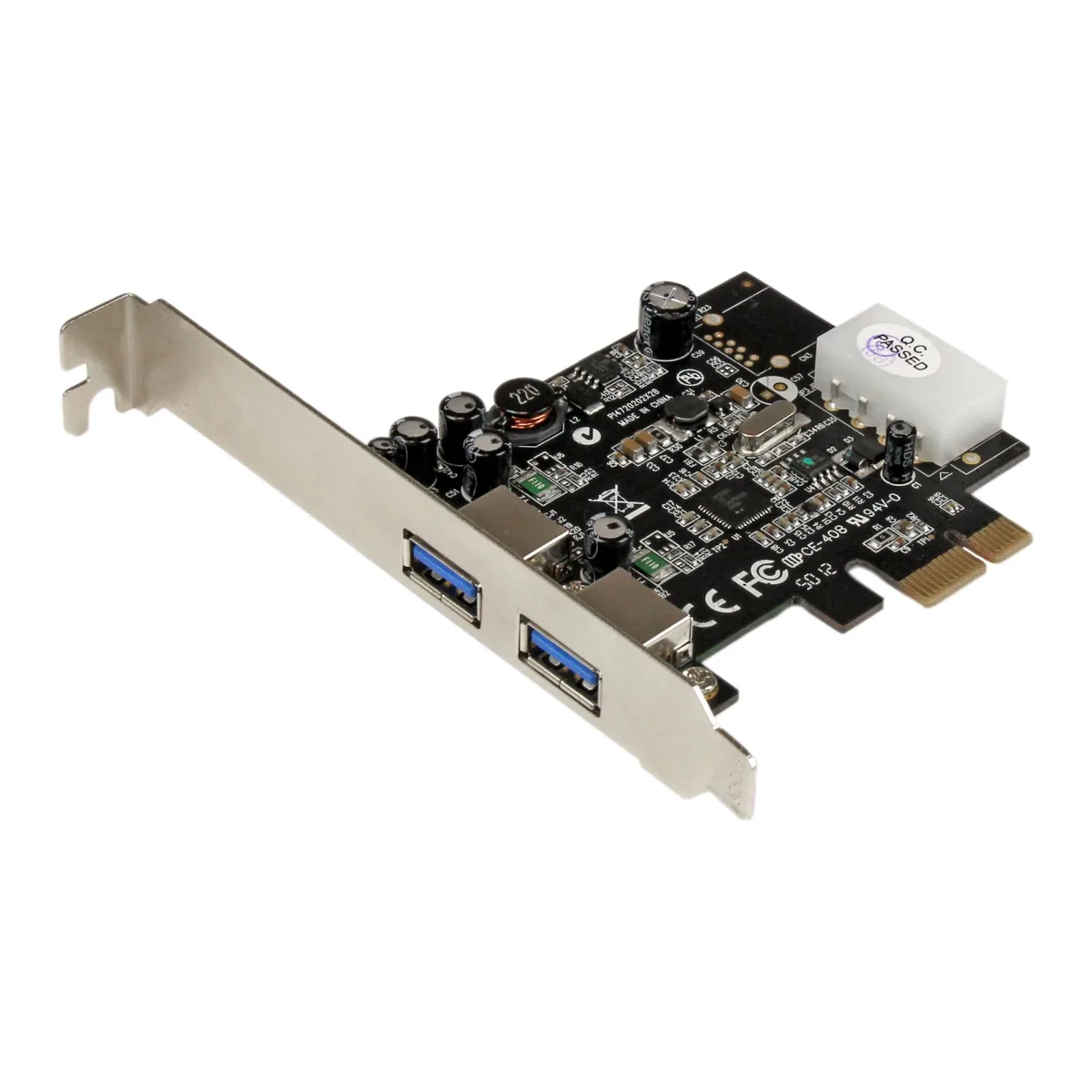

Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - Dual Port USB 3 PCIe Controller (PEXUSB3S25) - USB adapter - PCI Express x1 - USB 3.0 x 2 - for P/N: CFASTRWU3, S251SMU33EP, ST103008U2C, ST53004U1C, ST7300U3M, ST93007U2C, UNI251BMU33

Description

Manufacturer Code: PEXUSB3S25

Overview

Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - LP4 Power - Dual Port USB 3 PCIe Controller (PEXUSB3S25) - USB adapter - PCI Express x1 - USB 3.0 x 2 - for P/N: CFASTRWU3, S251SMU33EP, ST103008U2C, ST53004U1C, ST7300U3M, ST9 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• LP4 Power
• Dual Port USB 3 PCIe Controller (PEXUSB3S25)
• USB adapter
• PCI Express x1
• USB 3.0 x 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030854603

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Design

Internal	Yes
Maximum cable length	3 m
Certification	CE, FCC

Features

Chipset	Renesas / NEC - µPD720202
Data transfer rate (max)	5 Gbit/s
UASP support	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	18 mm
Depth	82 mm
Height	120 mm
Weight	51 g

Packaging data

Cables included	SATA
Drivers included	Yes
Manual	Yes
Package width	143 mm
Package depth	171 mm
Package height	30 mm
Package weight	154 g

Logistics data

Harmonized System (HS) code	84733020
