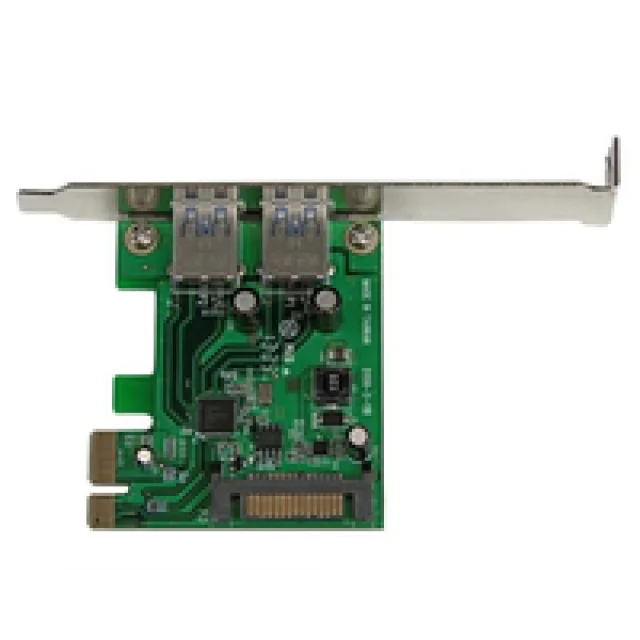

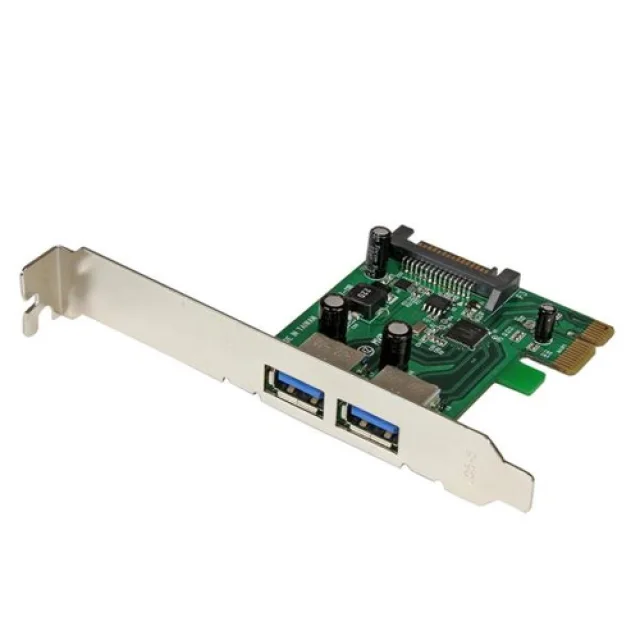

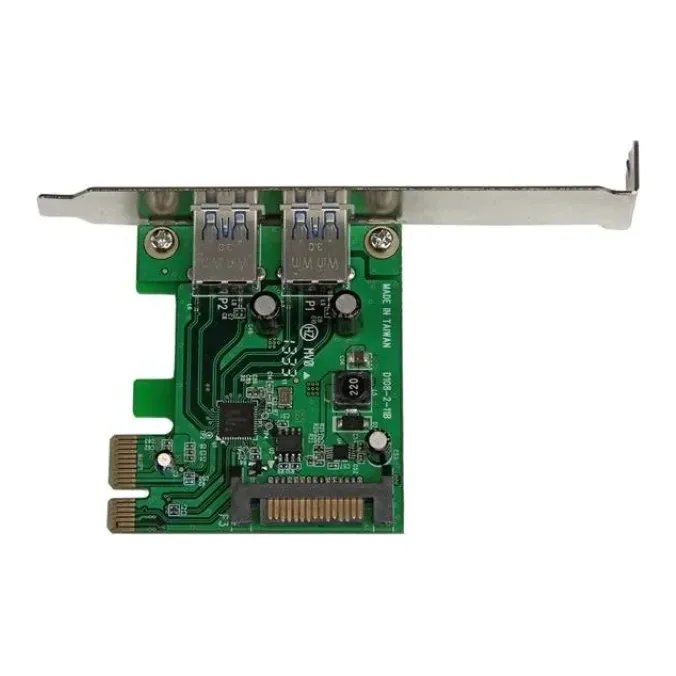

Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - Dual Port USB 3 PCIe Controller (PEXUSB3S24) - USB adapter - PCI Express x1 - USB 3.0 x 2 - for P/N: CFASTRWU3, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST7300U3M, ST7300USBME, USB3S2ESATA3

Description

Manufacturer Code: PEXUSB3S24

Overview

Startech 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power - Dual Port USB 3 PCIe Controller (PEXUSB3S24) - USB adapter - PCI Express x1 - USB 3.0 x 2 - for P/N: CFASTRWU3, ST3300GU3B, ST4300U3C1, ST4300U3C1B, ST7300U3M, ST7 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• SATA Power
• Dual Port USB 3 PCIe Controller (PEXUSB3S24)
• USB adapter
• PCI Express x1
• USB 3.0 x 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030855587

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Low-profile
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2

Design

Internal	Yes
Product colour	Green, Metallic
Certification	CE, FCC, TAA, REACH

Features

Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	5 Gbit/s
UASP support	Yes

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Weight & dimensions

Width	18 mm
Depth	65 mm
Height	120 mm
Weight	40 g

Packaging data

Mounting brackets included	Yes
Drivers included	Yes
Manual	Yes
Package width	174 mm
Package depth	145 mm
Package height	32 mm
Package weight	130 g

Logistics data

Harmonized System (HS) code	84733020
