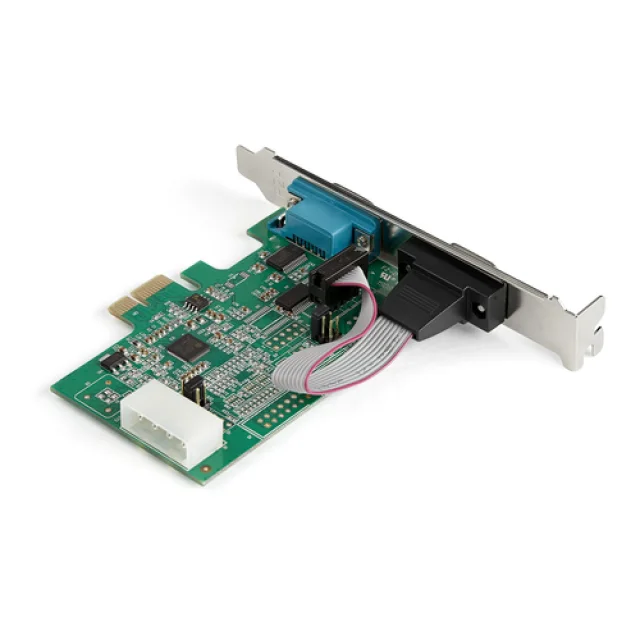

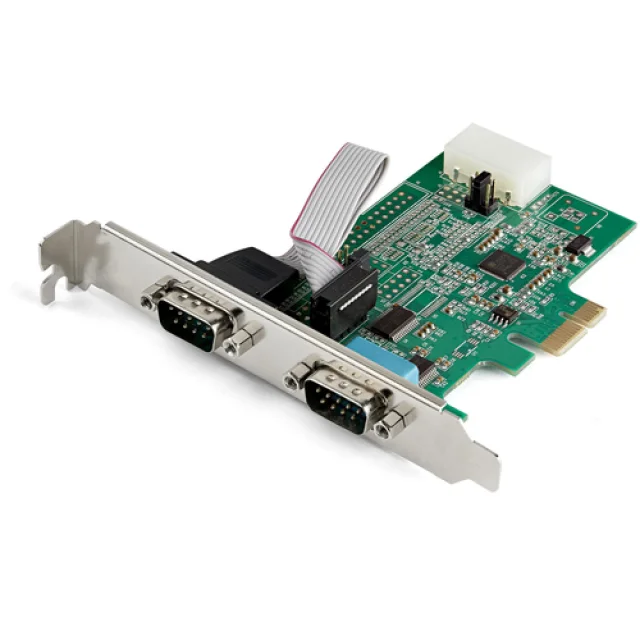

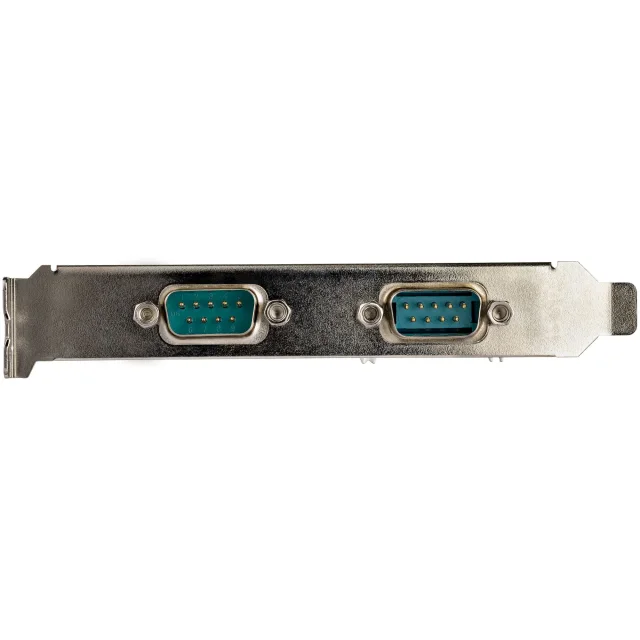

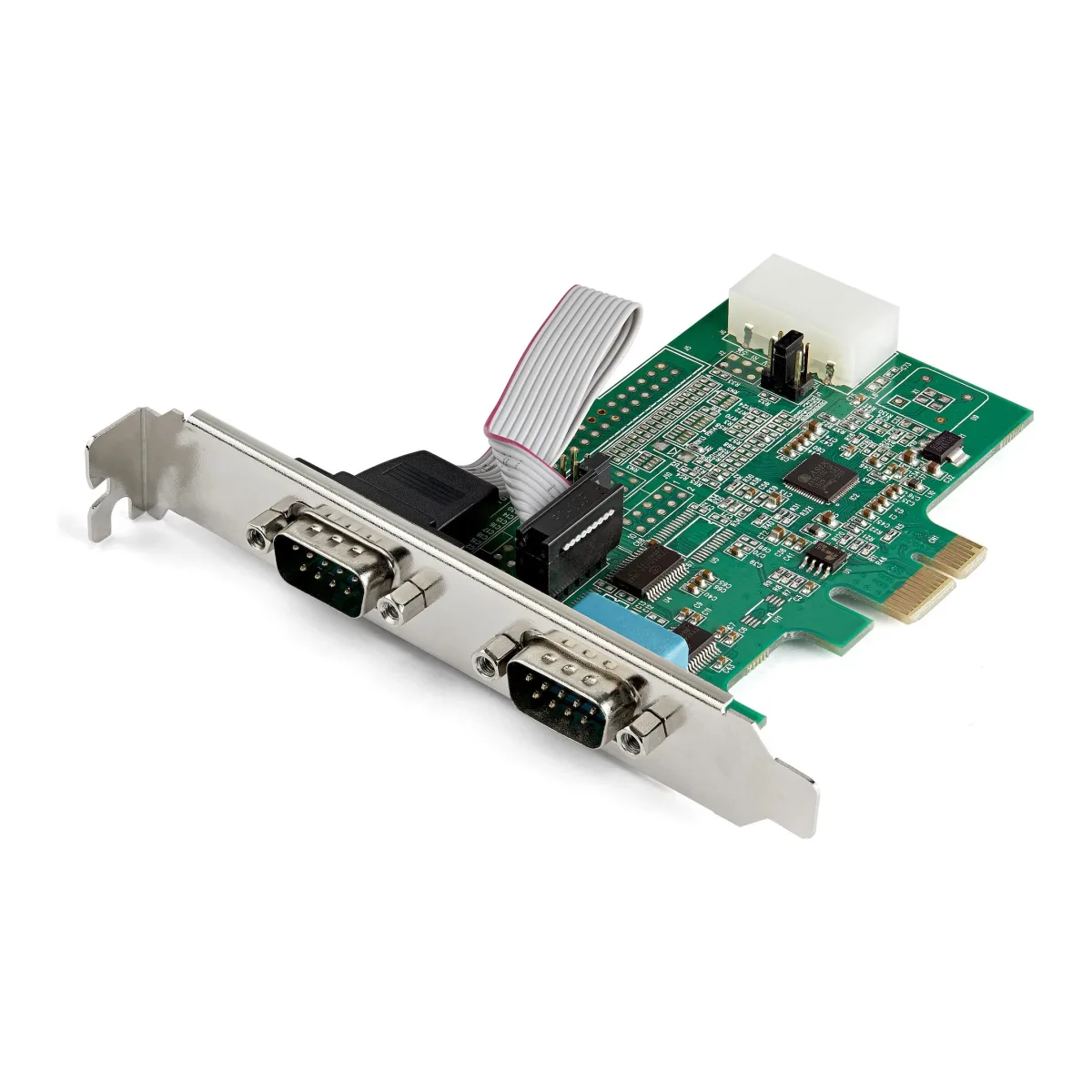

Startech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 COM Port Card, 16950 UART, Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX2S953) - Serial adapter - PCI Express x1 - RS-232 x 2

Description

Manufacturer Code: PEX2S953

Overview

Startech 2-port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Host Controller Card, PCIe to Dual Serial DB9 COM Port Card, 16950 UART, Expansion Card, Windows, macOS, Linux - Full/Low-Profile (PEX2S953) - Serial adapter - PCI Express x1 - RS-23 is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• Full/Low-Profile (PEX2S953)
• Serial adapter
• PCI Express x1
• RS-23

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030888332

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Expansion card standard	PCIe 1.1
Serial ports quantity	2
Serial interface type	RS-232

Design

Internal	Yes
Product colour	Green
Mean time between failures (MTBF)	222366 h

Features

Chipset	Asix AX99100
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8, 9
Stop bits	1, 1.5, 2
Parity bit	Even, Mark, No, Odd, Space
Flow Control type	No, RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Technical details

Sustainability compliance	Yes
Compliance certificates	CE, RoHS

Weight & dimensions

Width	63 mm
Depth	75 mm
Height	15 mm
Weight	56 g

Packaging data

Quantity	1
Quick installation guide	Yes
Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	136 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	75 pc(s)
Master (outer) case width	685 mm
Master (outer) case length	345 mm
Master (outer) case height	306 mm
