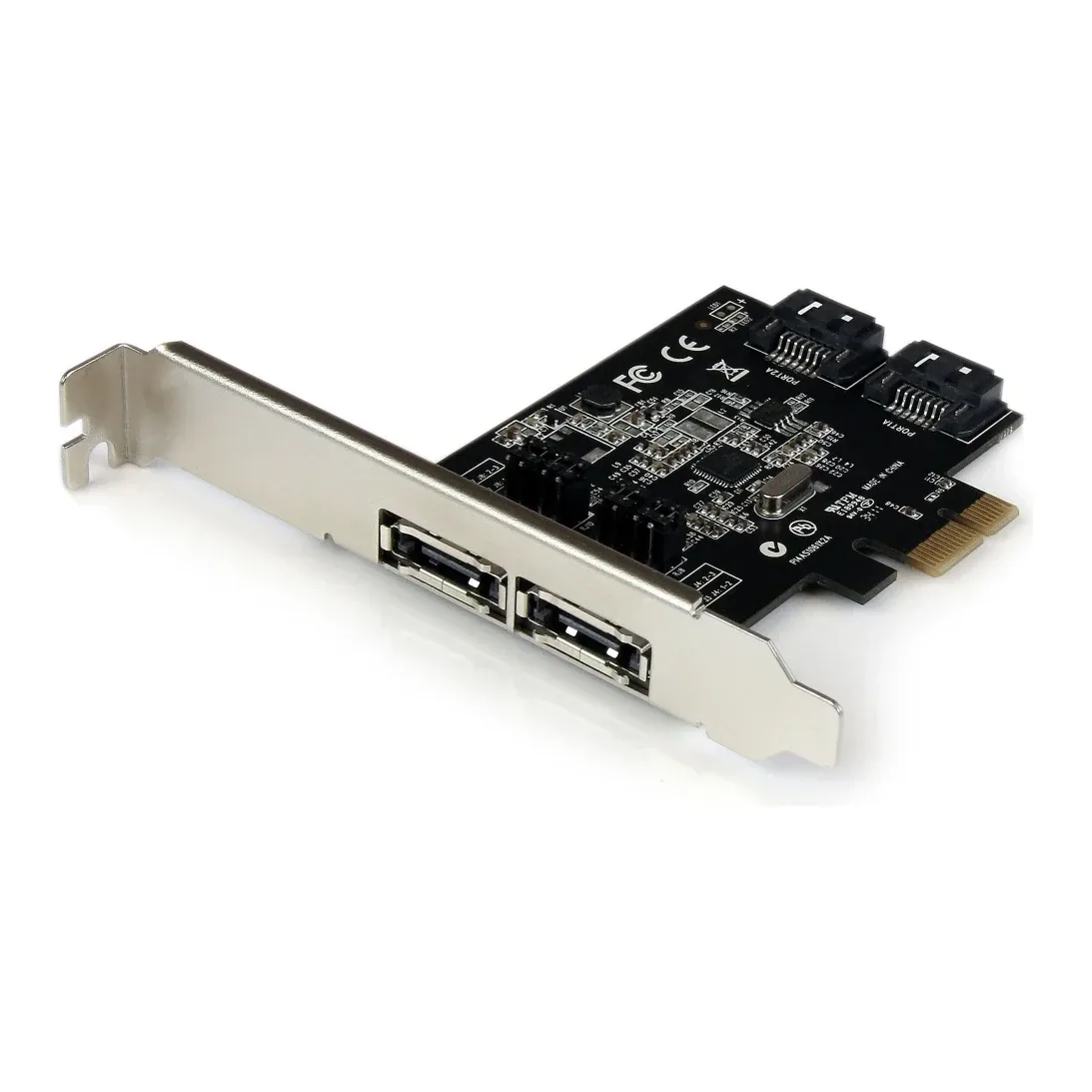

Startech 2 Port PCI Express SATA 6 Gbps eSATA Controller Card - Dual Port PCIe SATA III Card - 2 Int/2 Ext - SATA III 6Gbps (PEXESAT322I) - Storage controller - 2 Channel - SATA 6Gb/s / eSATA 6Gb/s - low profile - PCIe x1 - for P/N: S251SMU33EP, S3520BU33ER, S355BU33ERM, ST521PMINT

Description

Add 2 external or internal SATA 6 Gbps ports to a computer, through a PCI Express slot

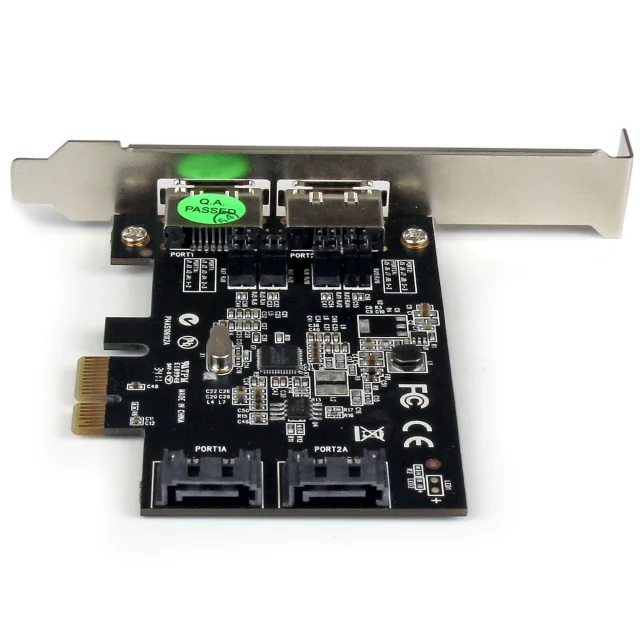

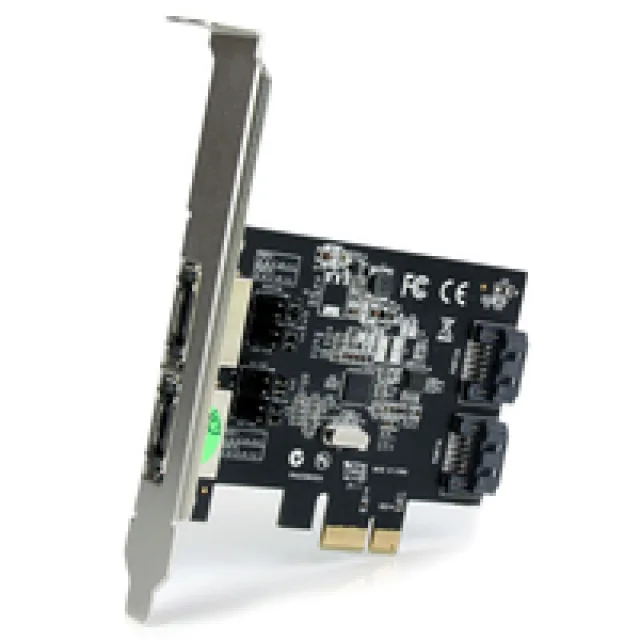

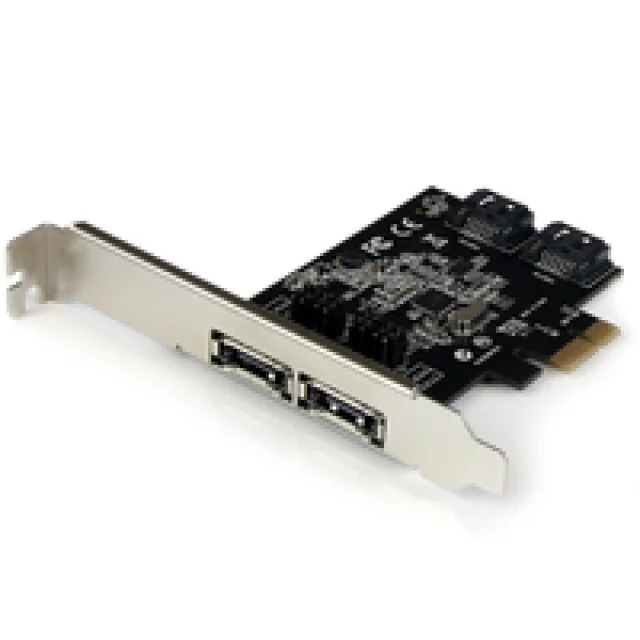

The PEXESAT322I PCI Express SATA III Controller Card (6 Gbps) gives you the option to add 2 internal or external SATA ports to your computer, through a single PCI Express (x1) card slot. The card features on board jumper selection, which enables you to configure the card to provide 2 internal or external SATA III ports, or one of each, as needed.
The SATA III card features Port Multiplier (PM) support on each port, which allows multiple drives to be connected over a single cable when necessary to maximize the number of SATA device connections while reducing the amount of cabling required.
The card is fully compliant with the SATA revision 3.0 specification (up to 6Gbps of data bandwidth), enabling you to utilize the speeds of high performance hard drives and Solid State Drives (SSD), as well as SATA-based optical drives (CD-ROM, DVD-ROM, Blu-Ray).
The PEXESAT322I SATA III Controller card is backed by our 2-year manufacturer warranty and free lifetime technical support.

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	SATA
SATA revision	3.0
eSATA ports quantity	2
Internal SATA ports quantity	2
Port multiplier	Yes

Design

Internal	Yes
Certification	CE, FCC, REACH

Features

Chipset	ASMedia - ASM1061
Logical block addressing (LBA) support	48 bit
Native Command Queuing (NCQ)	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Windows operating systems supported

Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Server operating systems supported

Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	92 mm
Depth	121 mm
Height	20 mm
Weight	48 g

Packaging data

Quantity	1
Cables included	SATA
Mounting brackets included	Yes
Drivers included	Yes
Manual	Yes
Package width	173 mm
Package depth	144 mm
Package height	30 mm
Package weight	152 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	80 pc(s)
Master (outer) case width	307 mm
Master (outer) case length	586 mm
Master (outer) case height	360 mm
