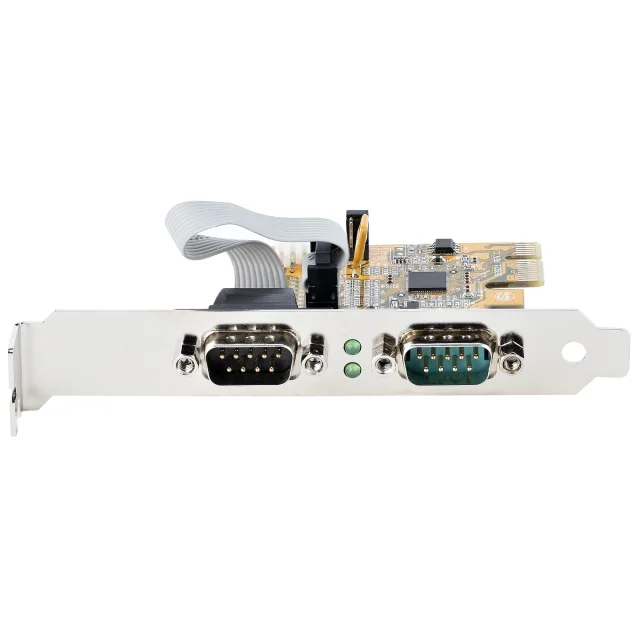

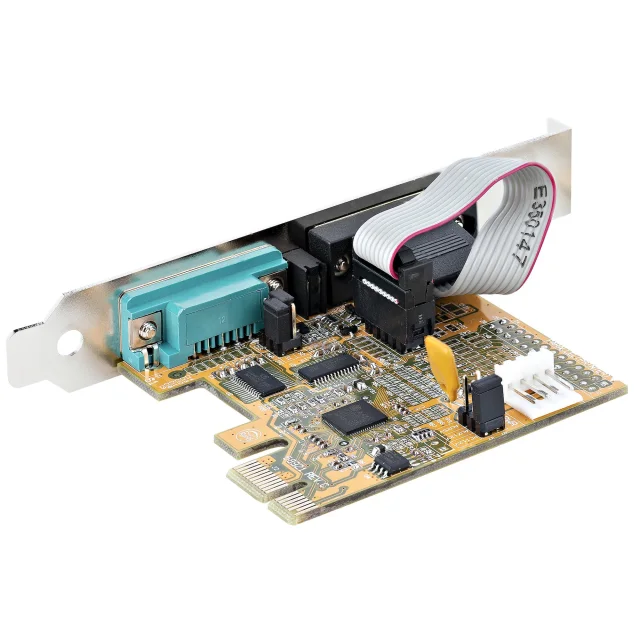

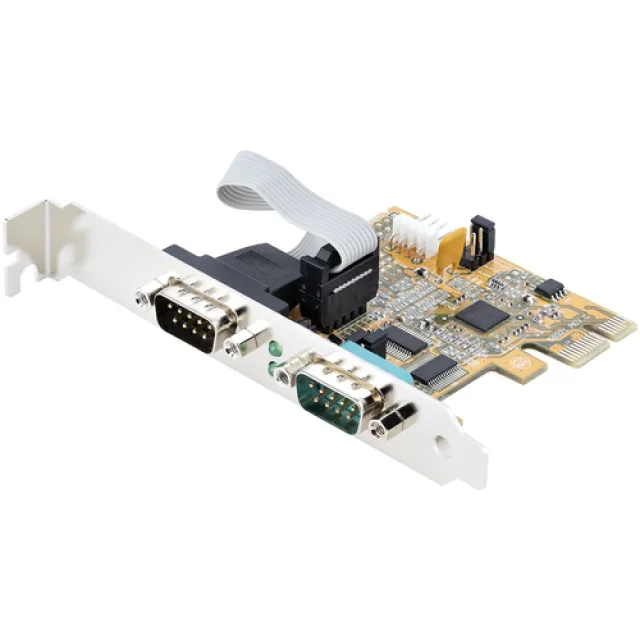

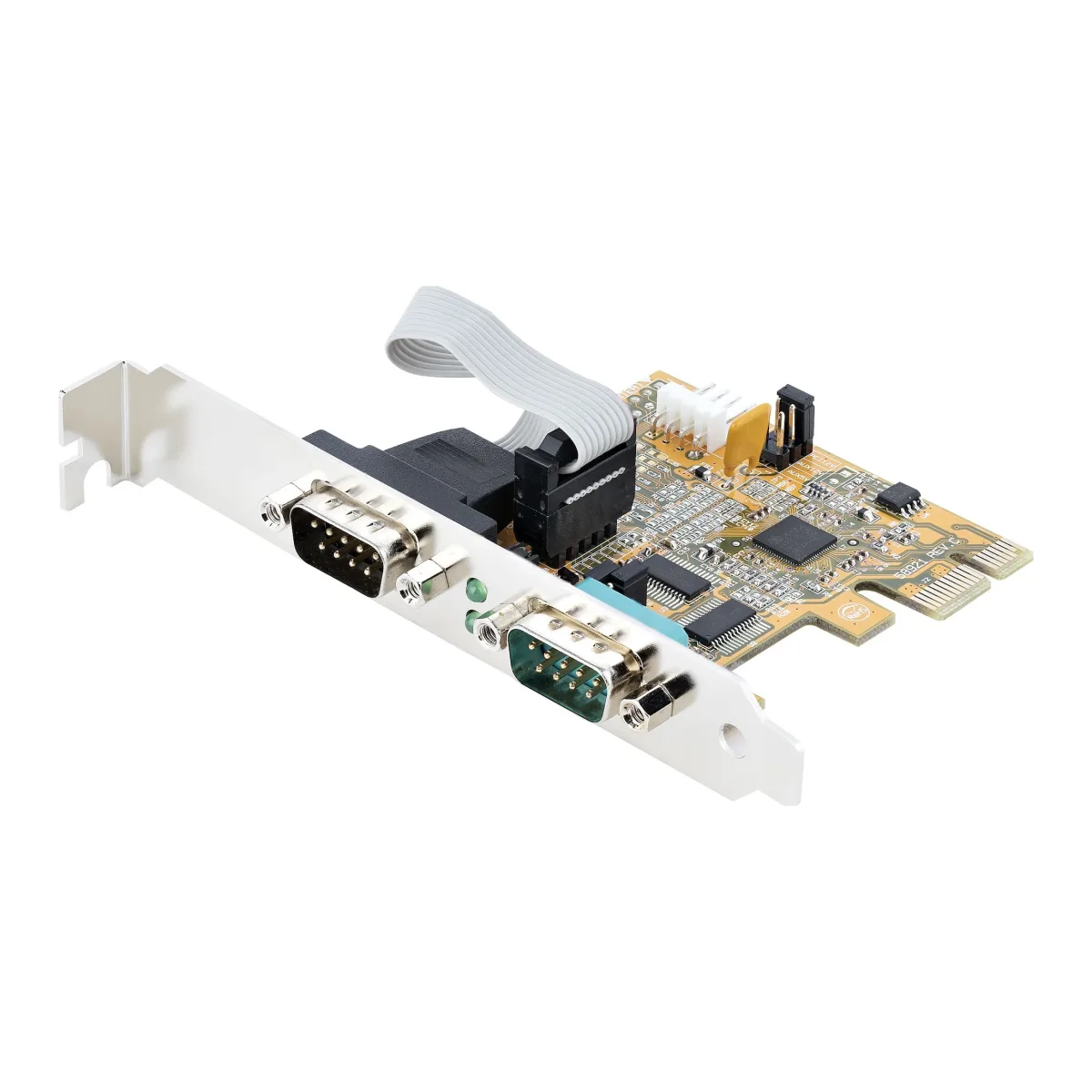

Startech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD) - Serial adapter - PCIe 2.0 low profile - RS-232 x 2 - yellow

Description

Manufacturer Code: 21050-PC-SERIAL-CARD

Overview

Startech 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Interface Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux - PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD) - Serial adapter - PCIe 2.0 low is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• PCIe to Dual DB9 Card (21050-PC-SERIAL-CARD)
• Serial adapter
• PCIe 2.0 low

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030894760

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCI 2.0
Serial ports quantity	2
Serial interface type	RS-232

Design

Internal	Yes
Product colour	Yellow
LED indicators	Activity

Features

Chipset	ASIX - AX99100, ASIX - ZT3243LFEY
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8, 9
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	CE, RoHS

Weight & dimensions

Width	65 mm
Depth	67 mm
Height	18 mm
Weight	51 g

Packaging data

Mounting brackets included	Yes
Quick installation guide	Yes
Package width	207 mm
Package depth	144 mm
Package height	38 mm
Package weight	200 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	50 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	440 mm
Master (outer) case height	340 mm
