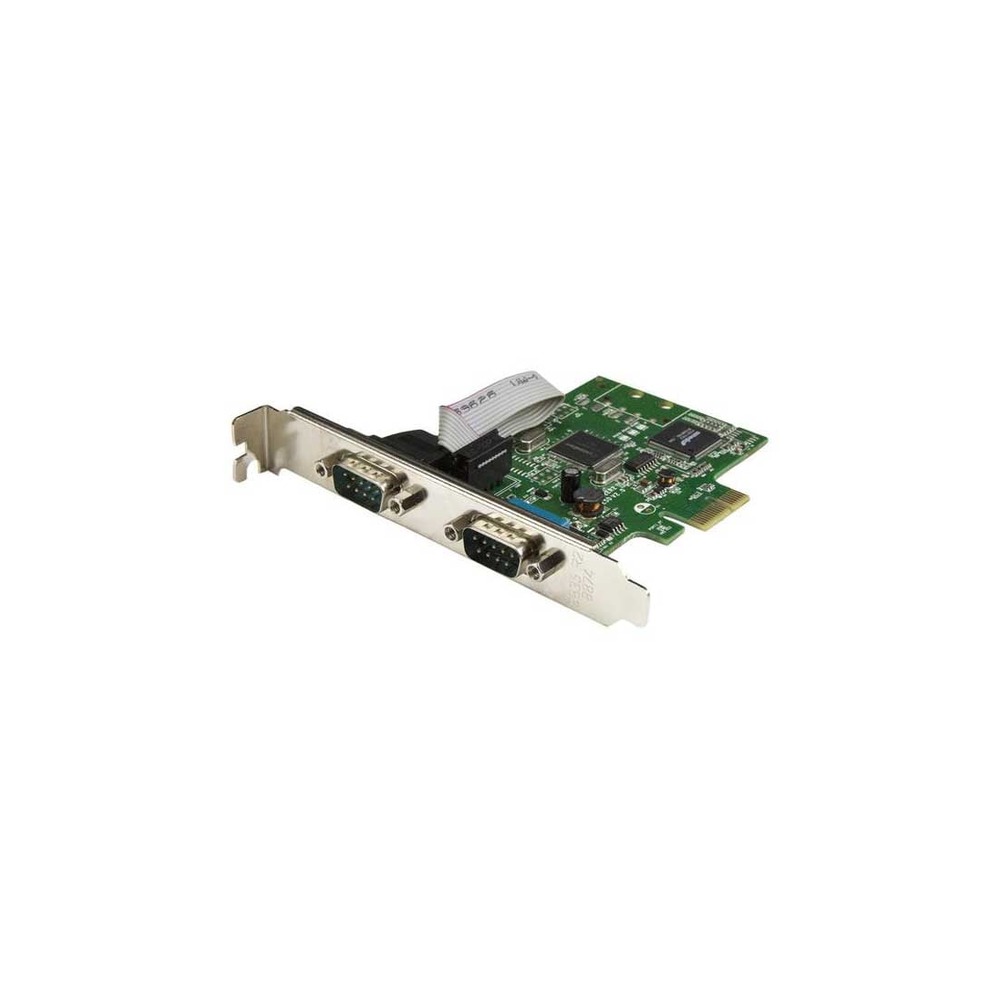

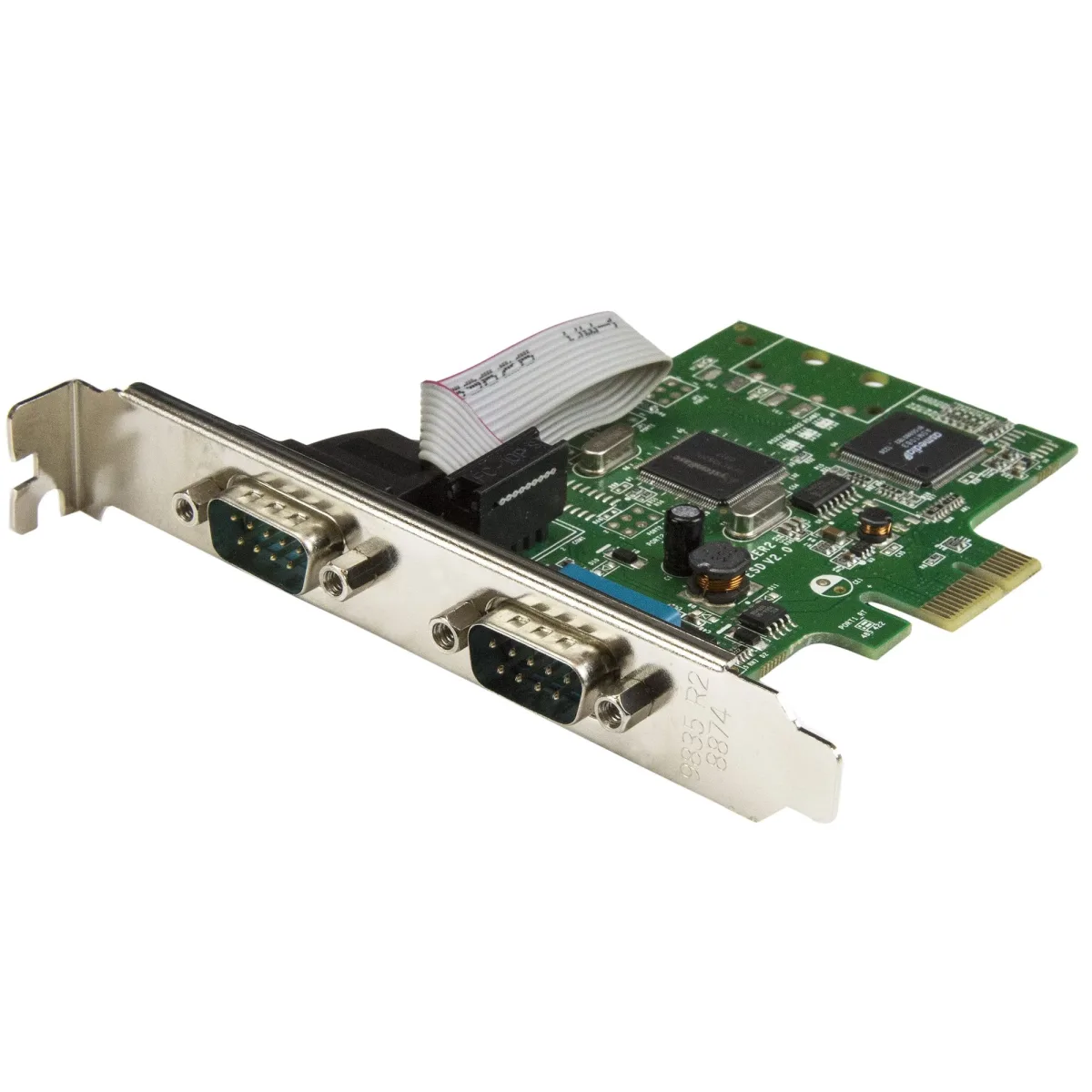

Startech 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - Serial adapter - PCI Express x1 low profile - RS-232 x 2

Description

Manufacturer Code: PEX2S1050

Overview

Startech 2-Port PCI Express Serial Card with 16C1050 UART - RS232 Low Profile Serial Card - PCI Serial Card (PEX2S1050) - Serial adapter - PCI Express x1 low profile - RS-232 x 2 is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• RS232 Low Profile Serial Card
• PCI Serial Card (PEX2S1050)
• Serial adapter
• PCI Express x1 low profile
• RS-232 x 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030868297

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Expansion card form factor	Full-height / Low-profile
Serial ports quantity	2
Serial interface type	RS-232

Design

Internal	Yes
Certification	CE, FCC, Microsoft WHQL

Features

Chipset	SystemBase - SB16C1052PCI
Baud rate	460.8 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8
Full duplex	Yes
Flow control support	Yes

Operational conditions

Operating temperature (T-T)	-10 - 80 °C
Storage temperature (T-T)	-20 - 100 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Windows operating systems supported

Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 95, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Server operating systems supported

Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	120 mm
Depth	103 mm
Height	20 mm
Weight	61 g

Packaging data

Mounting brackets included	Yes
Drivers included	Yes
Quick installation guide	Yes
Package width	143 mm
Package depth	174 mm
Package height	32 mm
Package weight	149 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	75 pc(s)
Master (outer) case width	356 mm
Master (outer) case length	691 mm
Master (outer) case height	319 mm
