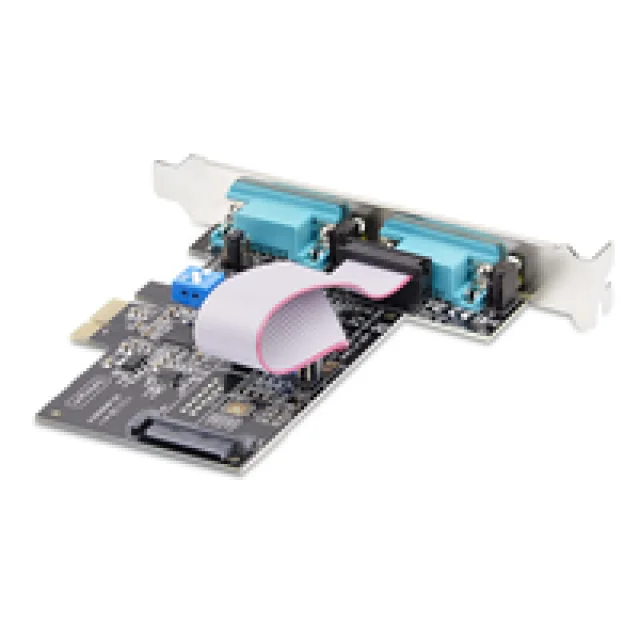

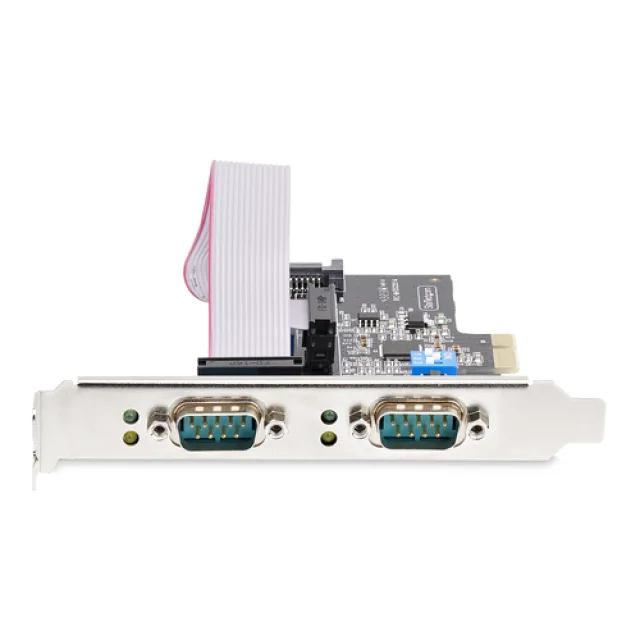

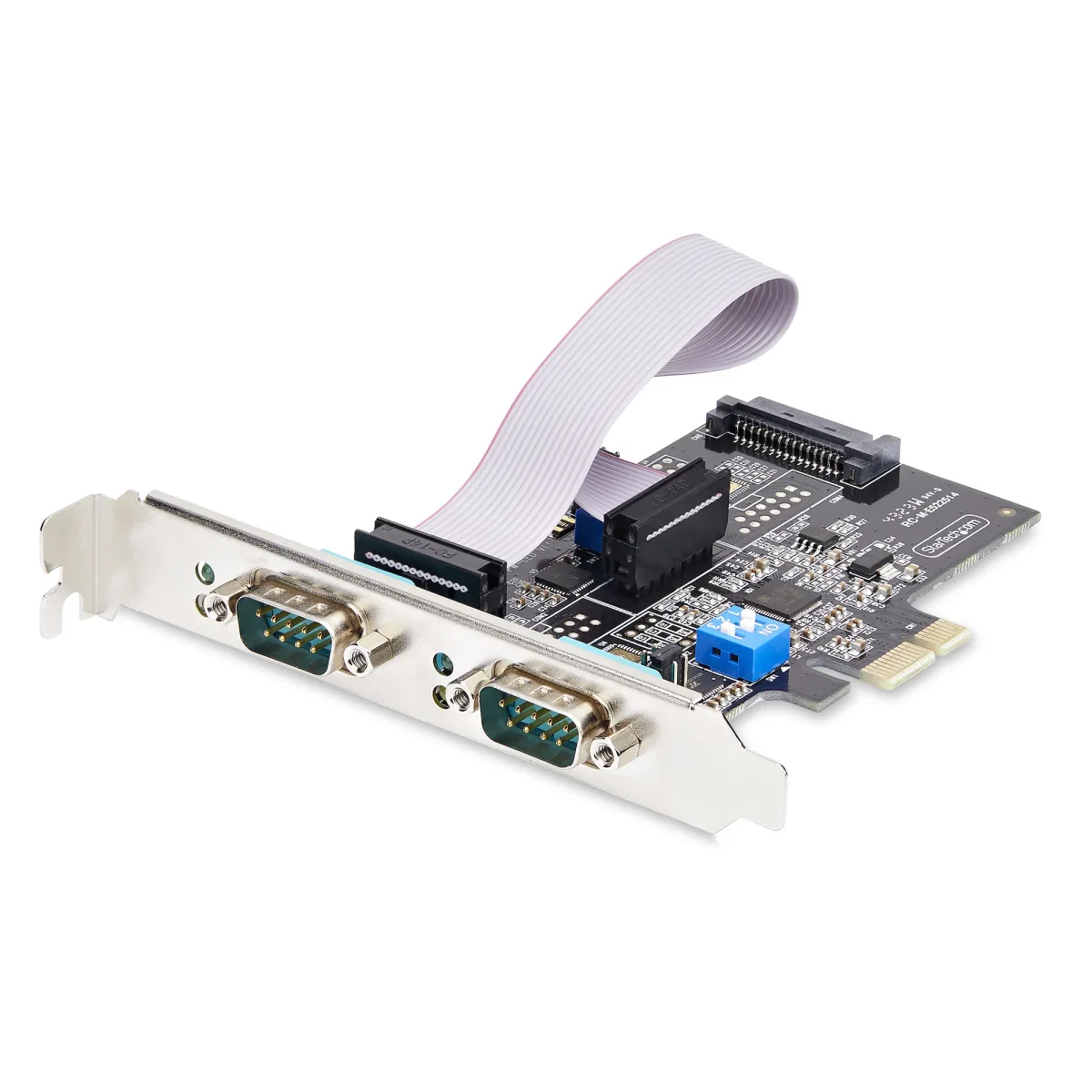

Startech 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, TAA-Compliant, Windows/Linux, TAA Compliant - Level-4 ESD Protection (2S232422485-PC-CARD) - Serial adapter - PCI Express x1 low profile - RS-232 x 2 - black - TAA Compliant

Description

Manufacturer Code: 2S232422485-PC-CARD

Overview

Startech 2-Port Serial PCIe Card, Dual-Port PCI Express to RS232/RS422/RS485 (DB9) Serial Card, Low-Profile Brackets Incl., 16C1050 UART, TAA-Compliant, Windows/Linux, TAA Compliant - Level-4 ESD Protection (2S232422485-PC-CARD) - Serial adapter - PCI Exp is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• Level-4 ESD Protection (2S232422485-PC-CARD)
• Serial adapter
• PCI Exp

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030900270

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Expansion card standard	PCIe 2.0
Serial ports quantity	2
Serial interface type	RS-232/422/485

Design

Internal	Yes
Product colour	Black

Features

Chipset	ASIX - AX99100
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8, 9
Stop bits	1, 1.5, 2
Flow control support	Yes
Parity bit	Even, Mark, No, Odd, Space

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 80 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Windows operating systems supported	Windows 11 Enterprise x64, Windows 7 Professional x64, Windows 8.1 Pro, Windows 10, Windows 11 Home, Windows 7 Starter, Windows 8.1 Pro x64, Windows 10 Education, Windows 11 Pro, Windows 7 Starter x64, Windows 8.1 x64, Windows 10 Education x64, Windows 11 x64, Windows 7 Ultimate, Windows 10 Enterprise, Windows 7 Ultimate x64, Windows 10 Enterprise x64, Windows 7 x64, Windows 10 Home, Windows 8, Windows 10 Home x64, Windows 7, Windows 8 Enterprise, Windows 10 IOT Core, Windows 7 Enterprise, Windows 8 Enterprise x64, Windows 10 IoT Enterprise, Windows 7 Enterprise x64, Windows 8 Pro, Windows 10 Pro, Windows 7 Home Basic, Windows 8 Pro x64, Windows 10 Pro x64, Windows 7 Home Basic x64, Windows 8 x64, Windows 10 x64, Windows 7 Home Premium, Windows 8.1, Windows 11, Windows 7 Home Premium x64, Windows 8.1 Enterprise, Windows 11 Enterprise, Windows 7 Professional, Windows 8.1 Enterprise x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2016, Windows Server 2019, Windows Server 2022

Technical details

Sustainability compliance	Yes
Compliance certificates	RoHS, Trade Agreements Act (TAA)

Weight & dimensions

Width	102 mm
Depth	105 mm
Height	16 mm
Weight	57 g

Packaging data

Cables included	Ribbon cable
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	147.6 g

Logistics data

Products per master (outer) case	75 pc(s)
Master (outer) case width	685 mm
Master (outer) case length	345 mm
Master (outer) case height	306 mm

Other features

Electrostatic Discharge (ESD) protection	15 kV
