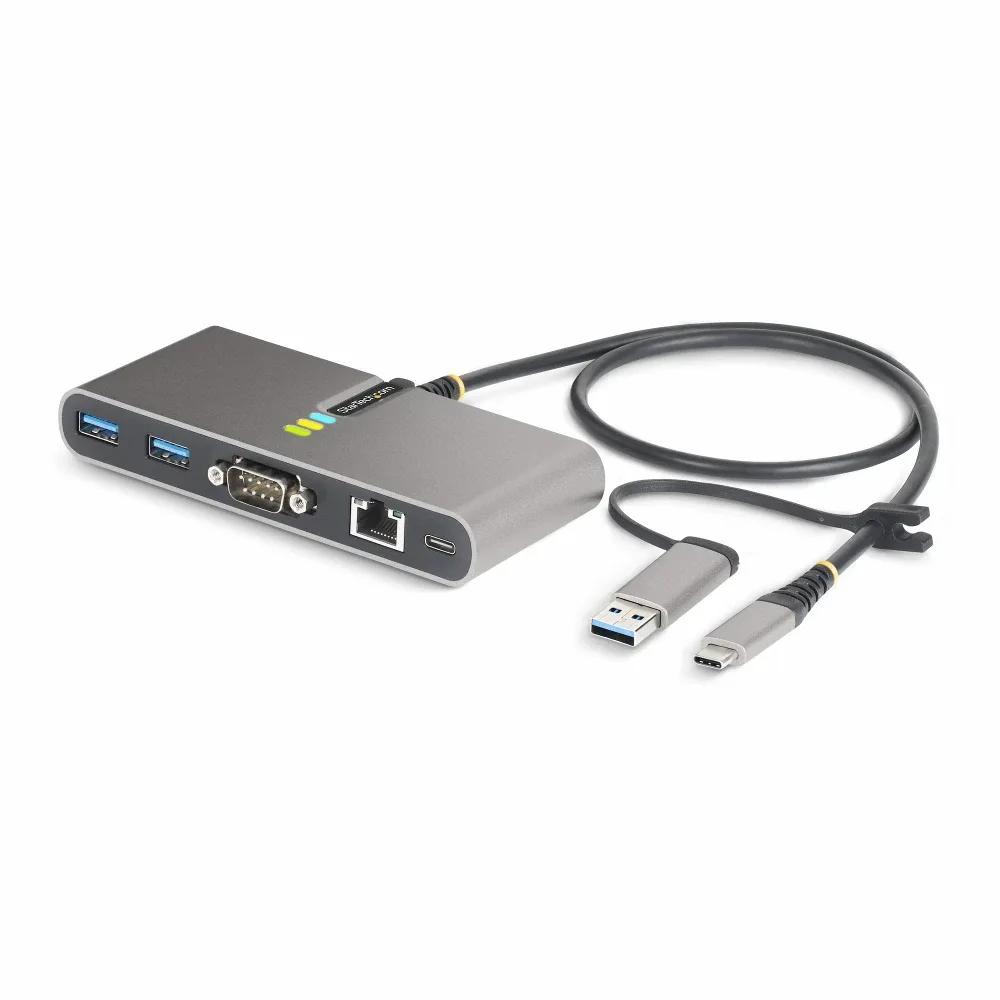

Startech 2-Port USB-C/USB-A Hub with GbE and RS232 Serial, 2x USB-A - Hub - 2 x USB 3.2 Gen 1 - desktop

Description

Manufacturer Code: 5G2A1SGBB-USB-C-HUB

Overview

Startech 2-Port USB-C/USB-A Hub with GbE and RS232 Serial, 2x USB-A - Hub - 2 x USB 3.2 Gen 1 - desktop is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• Hub
• 2 x USB 3.2 Gen 1
• desktop

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030899284

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB Power Delivery (USB PD)	Yes
USB Power Delivery up to	100 W
Microphone in	No
Serial ports quantity	1

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000,2000 Mbit/s
Wake-on-LAN ready	Yes
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Yes
Jumbo frames	9000
Flow control support	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
VLAN tagging	Yes

Performance

Colour name	Space Gray
Card reader integrated	No
Data transfer rate	5 Gbit/s
Product colour	Grey
LED indicators	Yes
UASP support	Yes

Power

Power consumption (max)	15 W

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022
Other operating systems supported	Windows XP Embedded

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	128 mm
Depth	55 mm
Height	19 mm
Weight	105 g

Packaging data

Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	110 g

Packaging content

Quick start guide	Yes
Interface adapters included	USB Type-A male - USB Type-C female

Technical details

Compliance certificates	CE, RoHS

Logistics data

Products per master (outer) case	80 pc(s)
Master (outer) case width	605 mm
Master (outer) case length	325 mm
Master (outer) case height	385 mm

Other features

Chipset	VIA - VL817-Q7, VIA - VL103-Q4, ASIX - AX88179A, FTDI - FT232RL
