Manufacturer Code: RK2236BKF
Overview

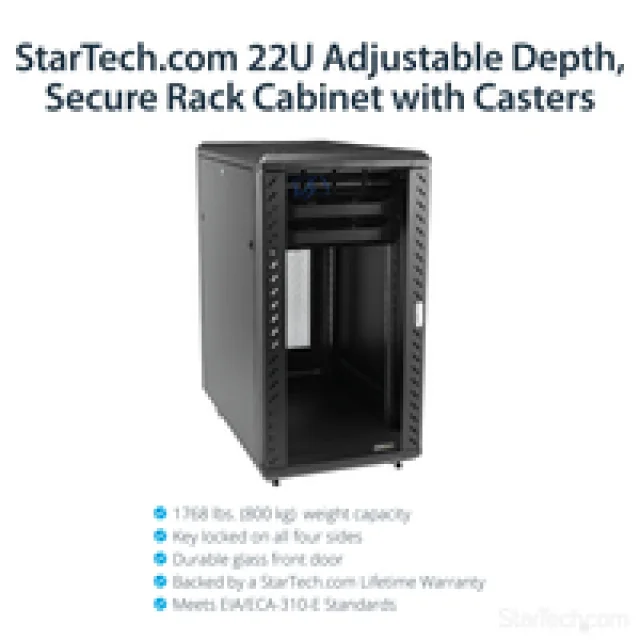

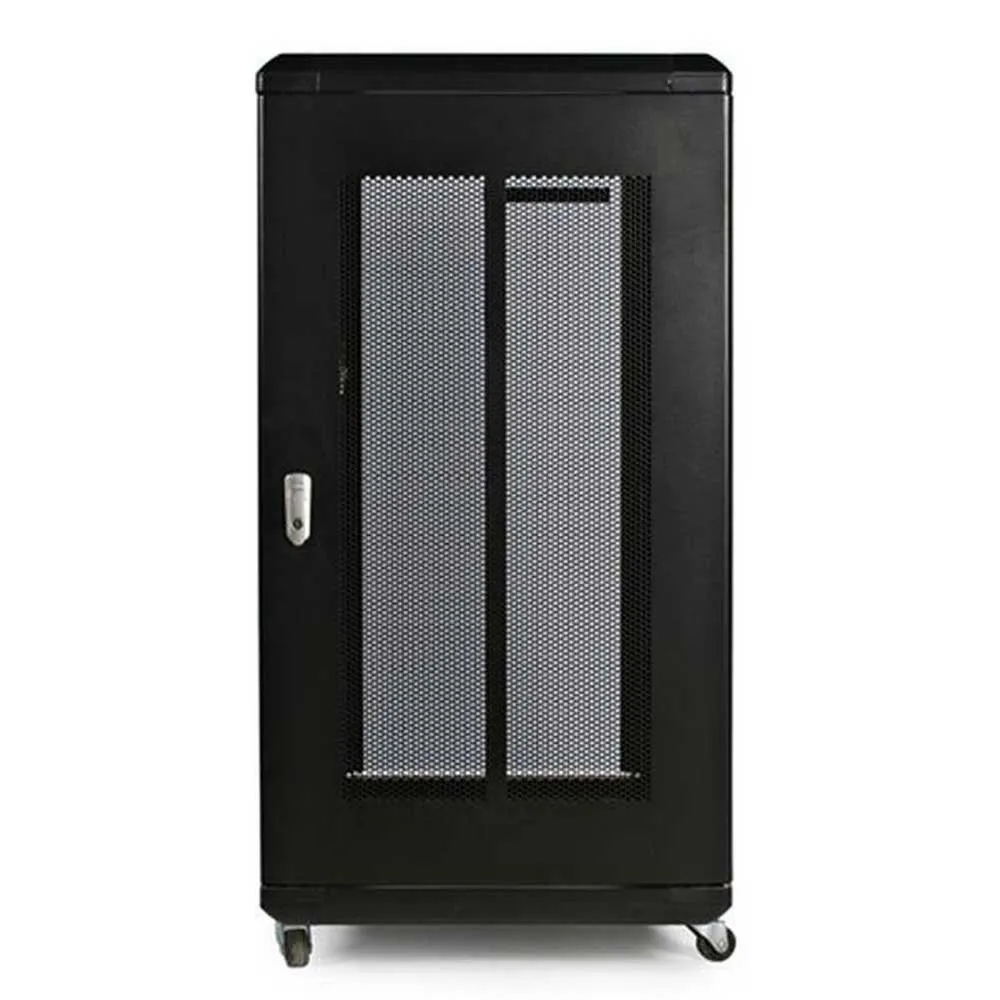

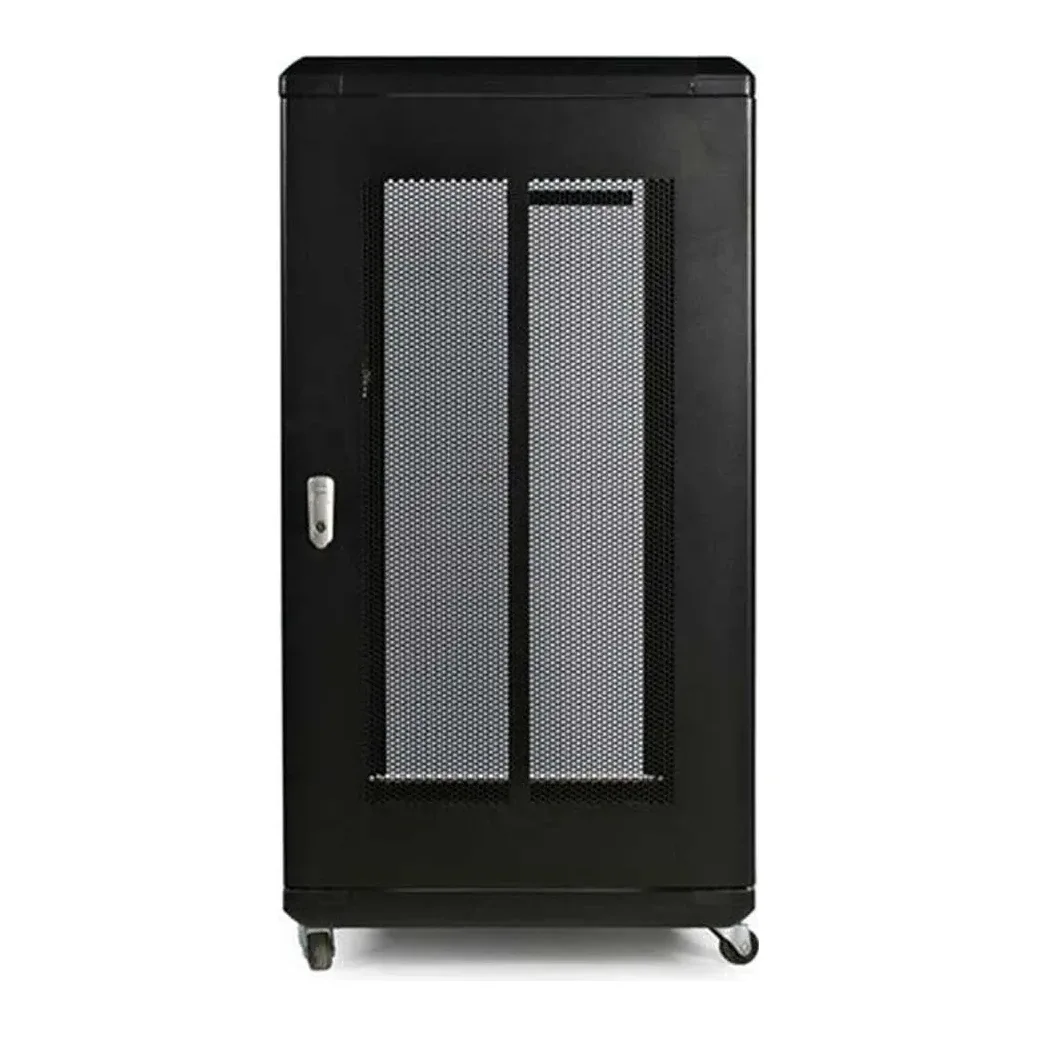

Startech 22U Server Rack Cabinet with secure locking door - 4 Post Adjustable Depth (5.5" to 28.7") - 1768 lb capacity - 19 inch Portable Network Equipment Enclosure on wheels/casters (RK2236BKF) - Rack - 22U - for P/N: CABCAGENUTS6, CABSCREWM52, CABSCREW is available through DCS Components. It sits within the Racking & Cabinets category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030820752
| Rack capacity | 22U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 800 kg |
| Product colour | Black |
| Material | Steel |
| Frame type | Closed |
| Product design | 4-post |
| Back door construction | Steel |
| Front door construction | Steel |
| Removable front door | Yes |
| Key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | No |
| Number of fans | 0 fan(s) |
| Cable management | No |
| Mounting hole shape | Square |

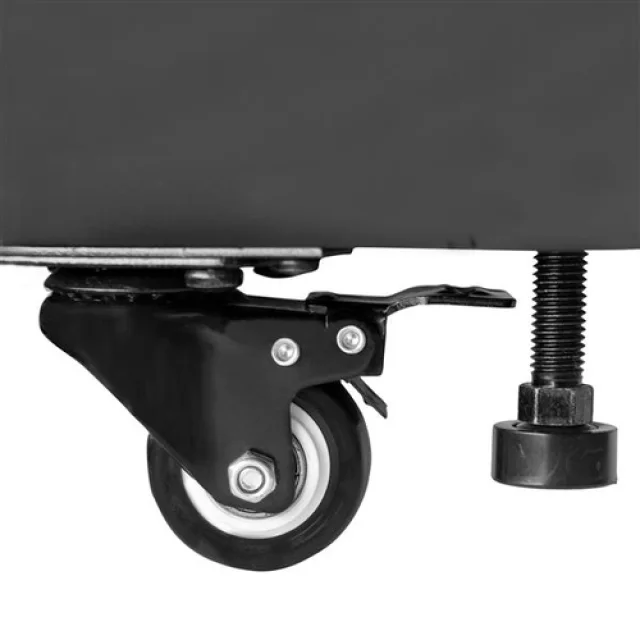

| Castor wheels | Yes |
| Certification | REACH |
| Width | 603 mm |
|---|---|
| Depth | 1005 mm |
| Height | 1112 mm |
| Inner width | 58 cm |
| Inner depth | 99 cm |
| Weight | 62.6 kg |
| Mounting depth (min) | 14 cm |
| Mounting depth (max) | 83 cm |
| Nuts included | Yes |
|---|---|
| Number of nuts | 20 |
| Screws included | Yes |
| Number of screws | 20 |
| Mounting kit | Yes |
| Package width | 1068 mm |
| Package depth | 1175 mm |
| Package height | 292 mm |
| Package weight | 75.3 kg |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85381000 |
|---|
| Compliance industry standards | EIA/ECA-310-E |
|---|
