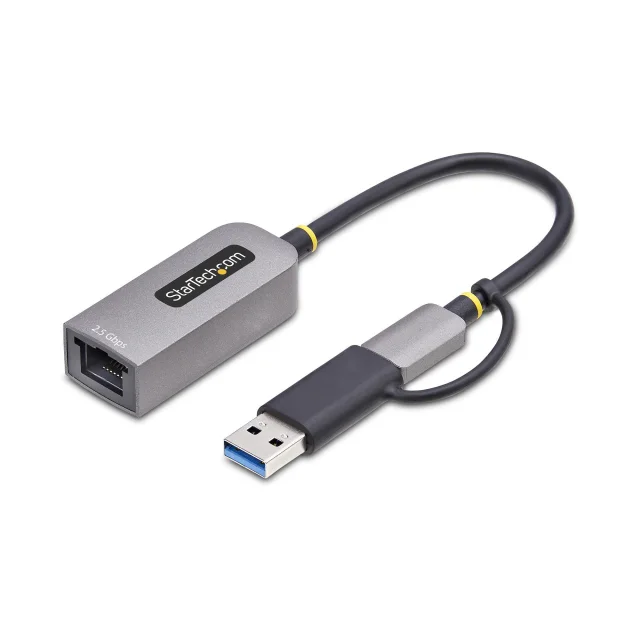

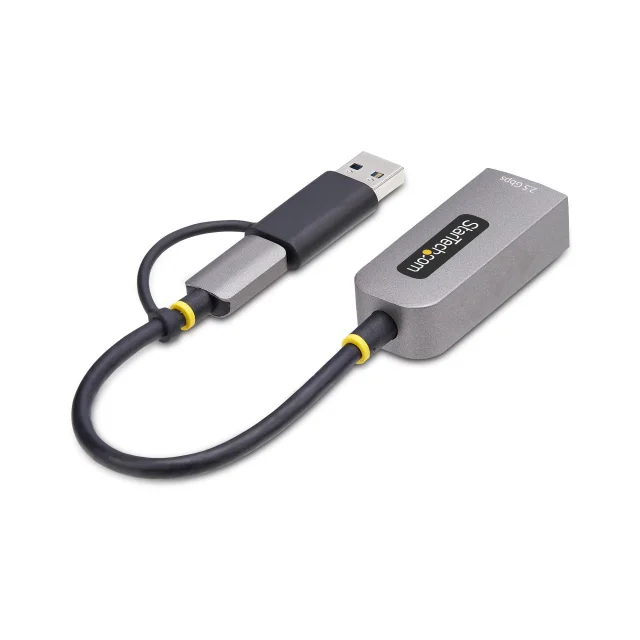

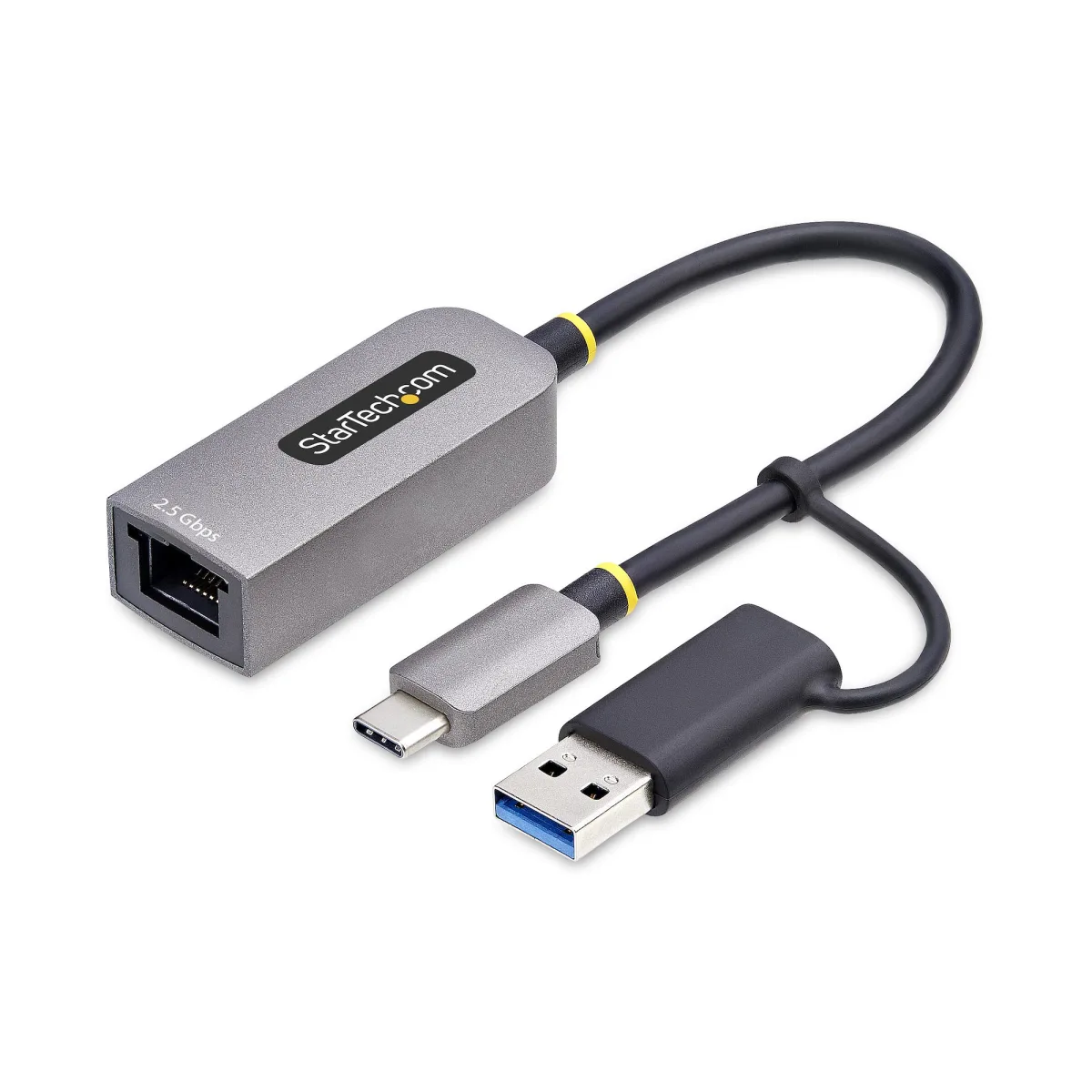

Startech 2.5GbE USB-C to Ethernet Adapter with USB-A Converter - Network adapter - USB-C 3.2 Gen 1 / Thunderbolt 3 - 10M/100M/1G/2.5 Gigabit Ethernet - space grey

Description

Manufacturer Code: U2GA-USB-C-ETHERNET

Overview

Startech 2.5GbE USB-C to Ethernet Adapter with USB-A Converter - Network adapter - USB-C 3.2 Gen 1 / Thunderbolt 3 - 10M/100M/1G/2.5 Gigabit Ethernet - space grey is available through DCS Components. It sits within the NIC & Network Adapters category.

Key product details

• Network adapter
• USB-C 3.2 Gen 1 / Thunderbolt 3
• 10M/100M/1G/2.5 Gigabit Ethernet
• space grey

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030905176

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1
USB connector form factor	Straight
USB version	3.2 Gen 1 (3.1 Gen 1)

Network

Maximum data transfer rate	5000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Cabling technology	NBase-T
Wake-on-LAN ready	Yes
Auto MDIX IEEE	Yes
Full duplex	Yes
Jumbo frames support	Yes
Jumbo frames	16000
VLAN support	Yes

Design

Component for	PC/Laptop
Product colour	Grey
Internal	No
Chipset	Realtek RTL8156BG
LED indicators	Yes
Mean time between failures (MTBF)	1612526 h

Power

Output voltage	5 V
USB powered	Yes

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012 R2, Windows Server 2016, Windows Server 2022

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Weight & dimensions

Width	22 mm
Depth	353 mm
Height	15 mm
Weight	26 g

Packaging data

Package width	220 mm
Package depth	128 mm
Package height	14 mm
Package weight	28 g

Technical details

Compliance certificates	CE, RoHS

Logistics data

Master (outer) case width	500 mm
Master (outer) case length	320 mm
Master (outer) case height	210 mm
Products per master (outer) case	250 pc(s)

Other features

Cable length	0.152 m
