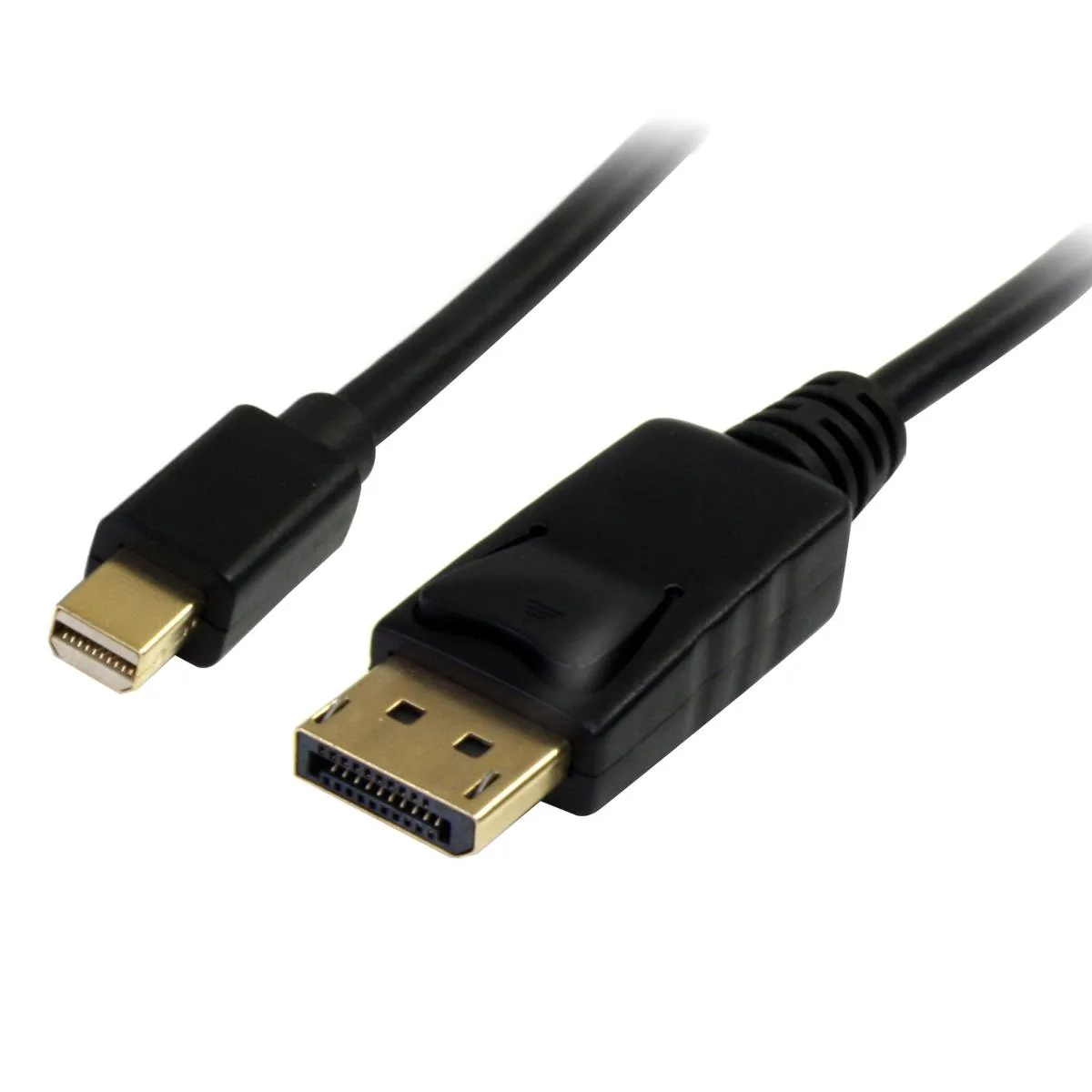

StarTech 2m Mini DisplayPort to DisplayPort 1.2 Cable DisplayPort 4k - DisplayPort cable - Mini DisplayPort (M) to DisplayPort (M) - 2 m - latched - black

Description

StarTech.com 2m (6ft) Mini DisplayPort to DisplayPort 1.2 Cable, 4K x 2K mDP to DisplayPort Adapter Cable, Mini DP to DP Cable for Monitor - 2m/6.6ft Mini-DP to DisplayPort v1.2 cable; 4Kx2K(3840x2400 60Hz)/21.6 Gbps bandwidth/HBR2/8Ch Audio/MST - Durable PVC strain relief; Latching connectors - For office/boardroom with laptop/workstation and monitor/projector; Samsung/Sony/Dell

Overview

Startech 2M MINI DISPLAYPORT TO DISPLAY is listed under manufacturer code MDP2DPMM2M. It sits within the Monitor Cables category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: MDP2DPMM2M
• Category: Monitor Cables
• EAN: 65030844468

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Features

Connector 1 form factor	Straight
Connector 2 form factor	Straight
Connector contacts plating	Nickel
DisplayPort version	1.2
Maximum resolution	3840 x 2400 pixels
Supported graphics resolutions	3840 x 2400, 2560 x 1600 (WQXGA)
Maximum refresh rate	120 Hz
Cable length	2 m
Connector 1	mini DisplayPort
Connector 2	DisplayPort
Connector 1 gender	Male
Connector 2 gender	Male
Product colour	Black
Cable rating	CMG (CM)
Cable shielding	Aluminum mylar foil
Jacket material	Polyvinyl chloride (PVC)
AWG wire size	32
Bandwidth	21600 MB/s
Plug and Play	Yes
Multi-Stream Transport (MST)	Yes
Number of conductors	19

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Certificates

Compliance certificates	CE, RoHS

Weight & dimensions

Weight	60 g

Packaging data

Package width	200 mm
Package depth	220 mm
Package height	27 mm
Package weight	80 g

Packaging content

Quantity per pack	1 pc(s)

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	324 mm
Master (outer) case length	505 mm
Master (outer) case height	220 mm
Products per master (outer) case	80 pc(s)
