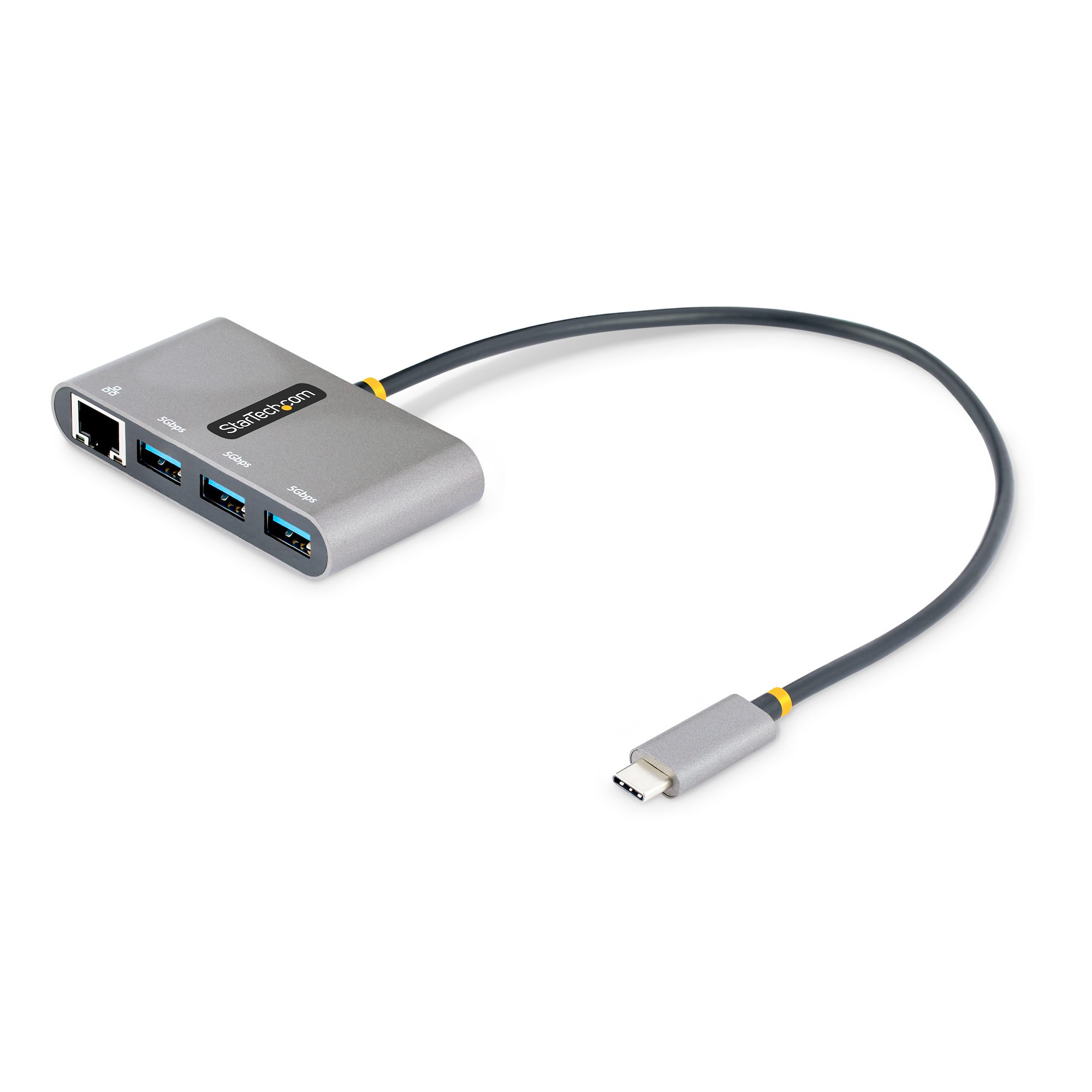

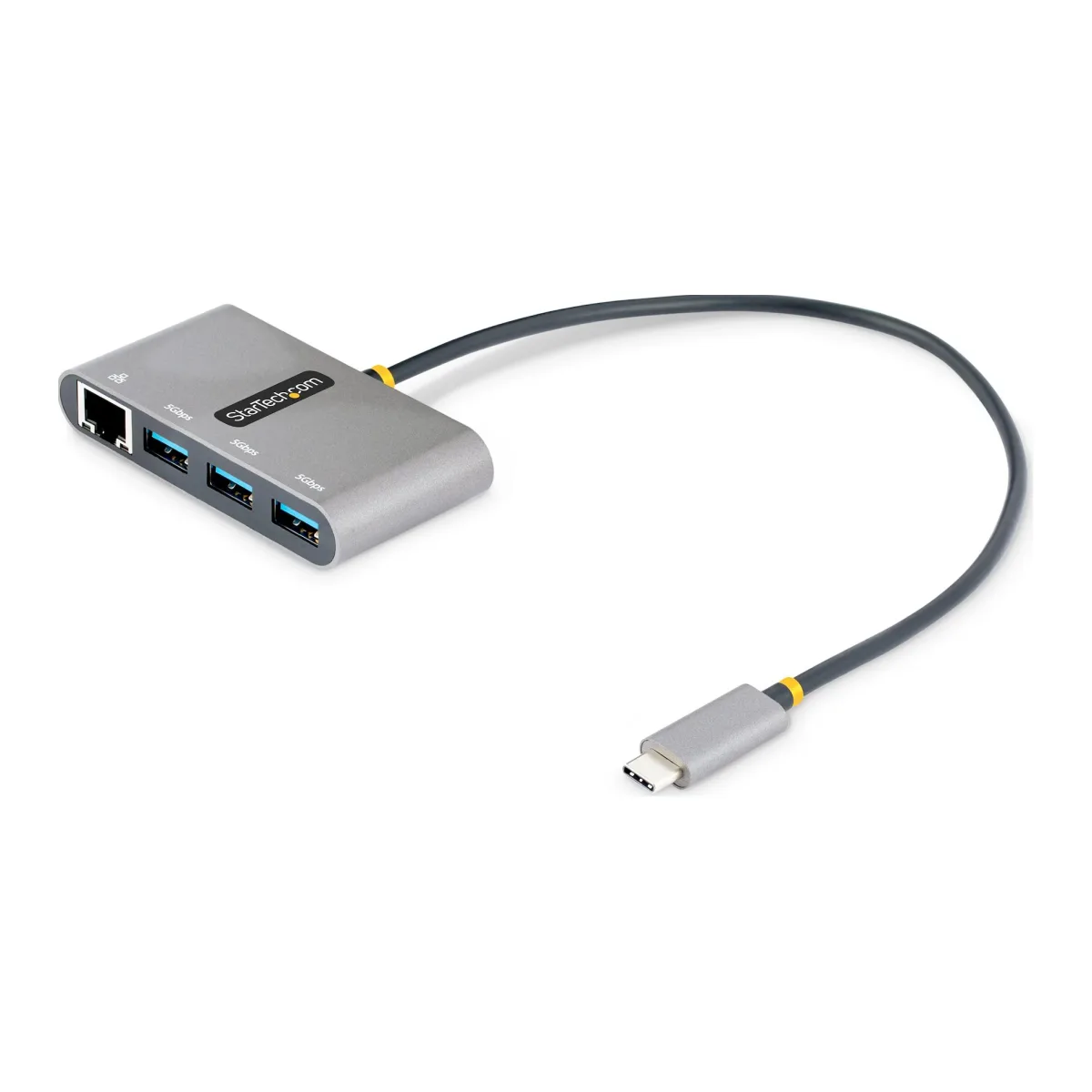

Startech 3-Port USB-C Hub with Ethernet, 3x USB-A Ports, Gigabit Ethernet, USB 3.0 5Gbps, Bus-Powered, USB Type-C Hub w/ GbE and 1ft/30cm Long Cable, Portable USB-C to USB-A Laptop Hub - USB Expansion Hub (HB30C3A1GEA2) - Hub - 3 x SuperSpeed USB 3.0 + 1 x 10/100/1000 - desktop

Description

Manufacturer Code: HB30C3A1GEA2

Overview

Startech 3-Port USB-C Hub with Ethernet, 3x USB-A Ports, Gigabit Ethernet, USB 3.0 5Gbps, Bus-Powered, USB Type-C Hub w/ GbE and 1ft/30cm Long Cable, Portable USB-C to USB-A Laptop Hub - USB Expansion Hub (HB30C3A1GEA2) - Hub - 3 x SuperSpeed USB 3.0 + 1 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• USB Expansion Hub (HB30C3A1GEA2)
• Hub
• 3 x SuperSpeed USB 3.0 + 1

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030897709

Specifications

Ports & interfaces

Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
Microphone in	No

Network

Ethernet LAN	Yes
Ethernet LAN (RJ-45) ports	1
Ethernet LAN data rates	10,100,1000 Mbit/s
Networking standards	IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Jumbo frames support	Yes
Jumbo frames	9000
Flow control support	Yes
Auto MDI/MDI-X	Yes
Full duplex	Yes
VLAN tagging	Yes

Performance

Card reader integrated	No
Product colour	Grey
Hub interfaces	RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
LED indicators	Activity, Link
UASP support	Yes
Housing material	Plastic

Power

Power source type	USB

Software

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Android

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 85%

Sustainability

Sustainability compliance	Yes

Weight & dimensions

Width	80 mm
Depth	40 mm
Height	14 mm
Weight	37 g

Packaging data

Package width	170 mm
Package depth	142 mm
Package height	30 mm
Package weight	104 g

Technical details

Compliance certificates	CE, RoHS

Logistics data

Products per master (outer) case	60 pc(s)
Master (outer) case width	530 mm
Master (outer) case length	335 mm
Master (outer) case height	315 mm

Other features

Cable length	0.3 m
Chipset	VIA/VLI - VL817, ASIX - AX88179A
