Startech 4 Port DisplayPort KVM Switch - DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals - 4K 30Hz (SV431DPU3A2) - KVM / USB switch - 4 x KVM / audio / USB + 3 x SuperSpeed USB - 1 local user - rack-mountable - AC 120/230 V / DC 9 - 12 V - for P/N: SV431RACK

Description

Manufacturer Code: SV431DPU3A2

Overview

Startech 4 Port DisplayPort KVM Switch - DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals - 4K 30Hz (SV431DPU3A2) - KVM / USB switch - 4 x KVM / audio / USB + 3 x SuperSpeed USB - 1 local user - rack-mountable - AC 120/230 V / DC 9 - 12 V is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• DP KVM Switch with Audio and Built-in USB 3.0 Hub for Peripherals
• 4K 30Hz (SV431DPU3A2)
• KVM / USB switch
• 4 x KVM / audio / USB + 3 x SuperSpeed USB
• 1 local user

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030863728

Specifications

Ports & interfaces

Number of computers controlled	4
Keyboard port type	USB
Mouse port type	USB
Video port type	DisplayPort
Console ports	3.5mm headphone, DisplayPort, USB A
Console USB ports quantity	4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity	3
USB connector type	USB Type-A
USB version	3.2 Gen 1 (3.1 Gen 1)
Audio connections	Yes
Headphone outputs	4
DC-in jack	Yes

Network

Ethernet LAN	No

Performance

HD type	4K Ultra HD
Maximum resolution	3840 x 2160 pixels
HDCP	Yes
Plug and Play	Yes
Daisy chain	No
Maximum operating distance	10 m
Audio channels	2.0

Design

Rack mounting	Yes
Product colour	Black
LED indicators	Link, Power
Hot keys	Yes
Certification	CE, FCC, UL, PSE

Display

Built-in display	No

Power

Input voltage	100-240 V
Output voltage	12 V
Output current	1.5 A
Power consumption (typical)	18 W
Power plug type	Type M
Compatible power plug types	AU, EU, UK, US

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	130 mm
Depth	220 mm
Height	43 mm
Weight	1.06 kg

Packaging data

Package width	244 mm
Package depth	297 mm
Package height	85 mm
Package weight	1.61 kg

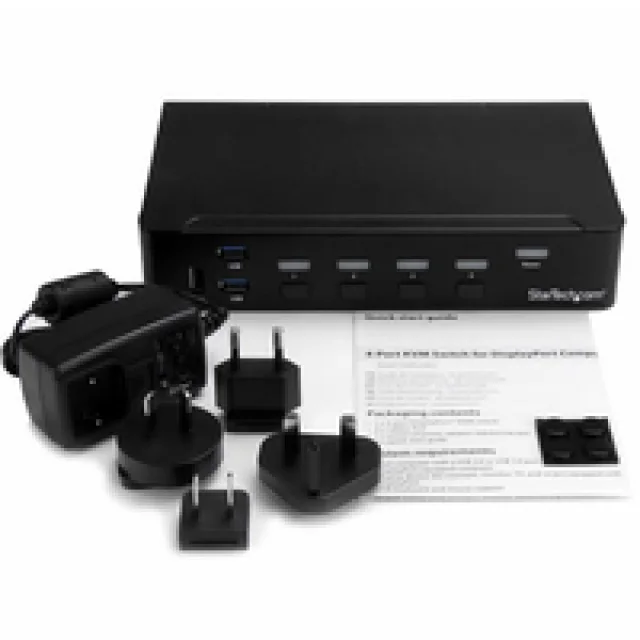

Packaging content

Quick installation guide	Yes
Rubber feet	Yes

Other features

Audio support	Yes
IP control	No

Logistics data

Harmonized System (HS) code	85176200
