Manufacturer Code: SV431HU34K6
Overview

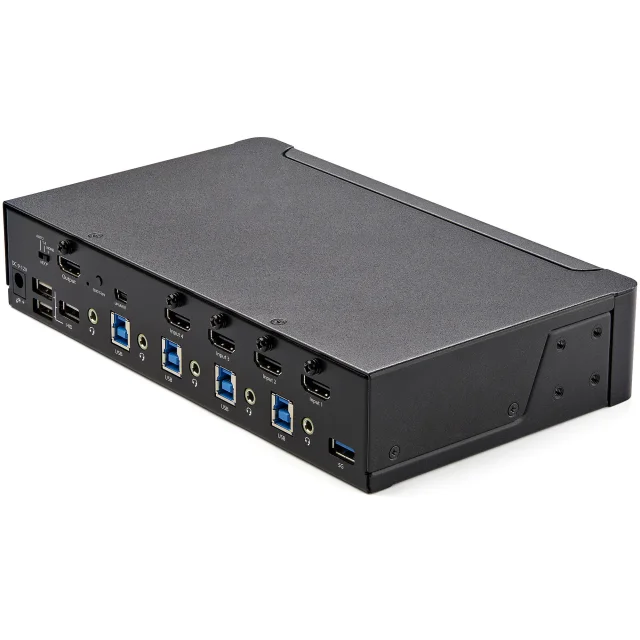

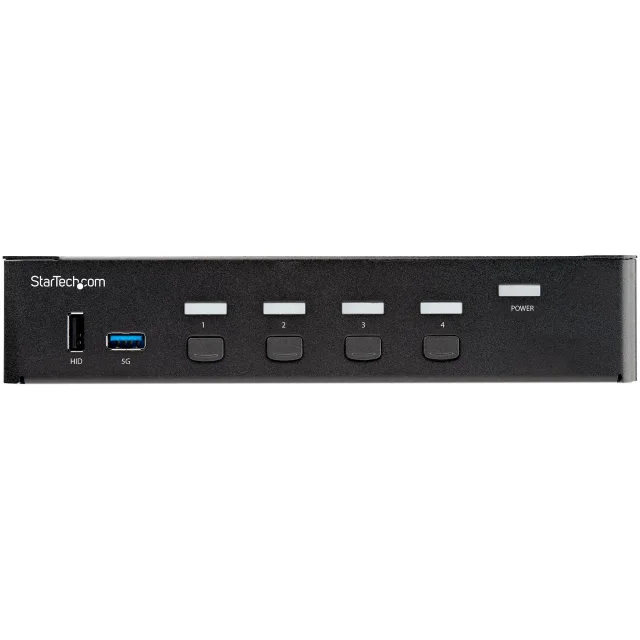

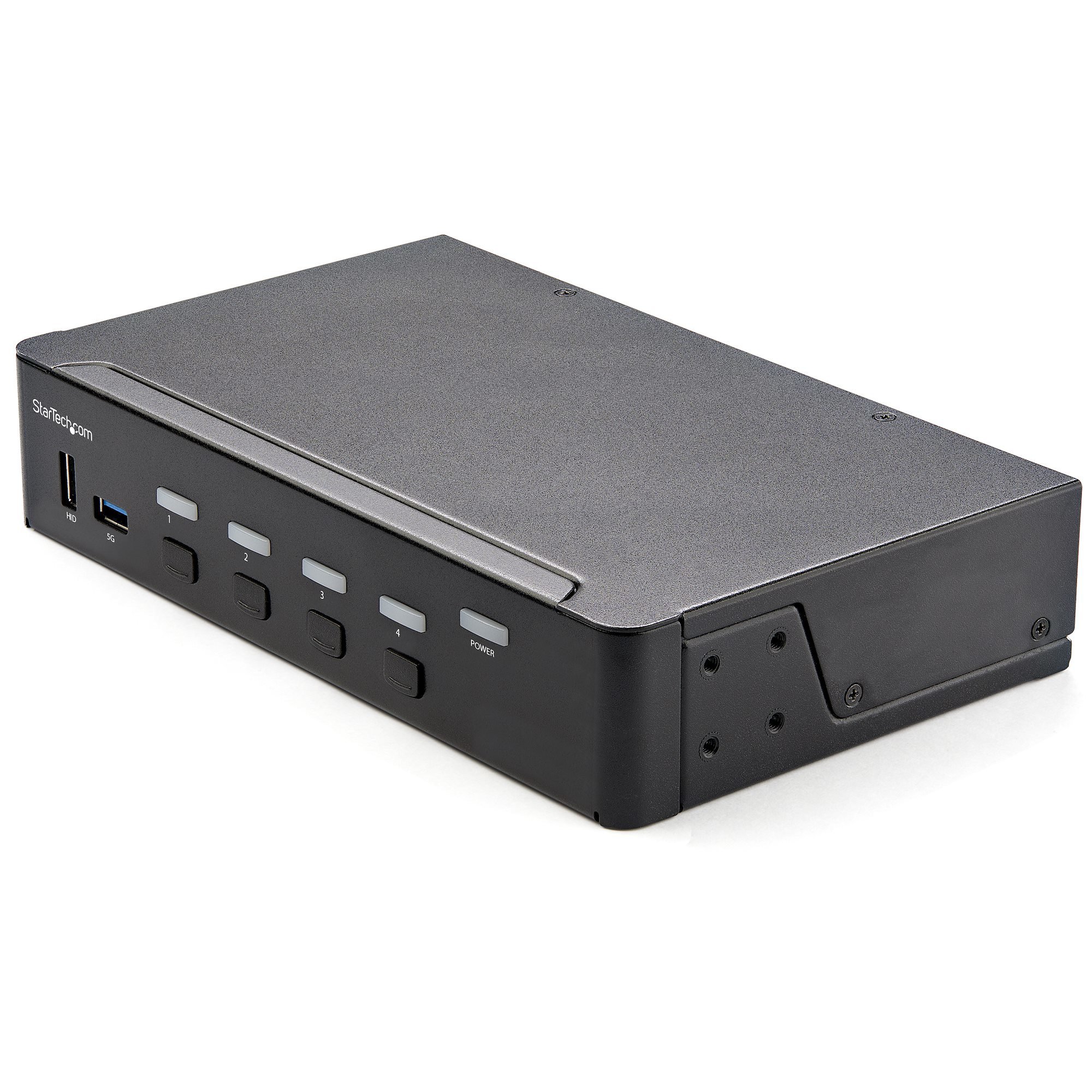

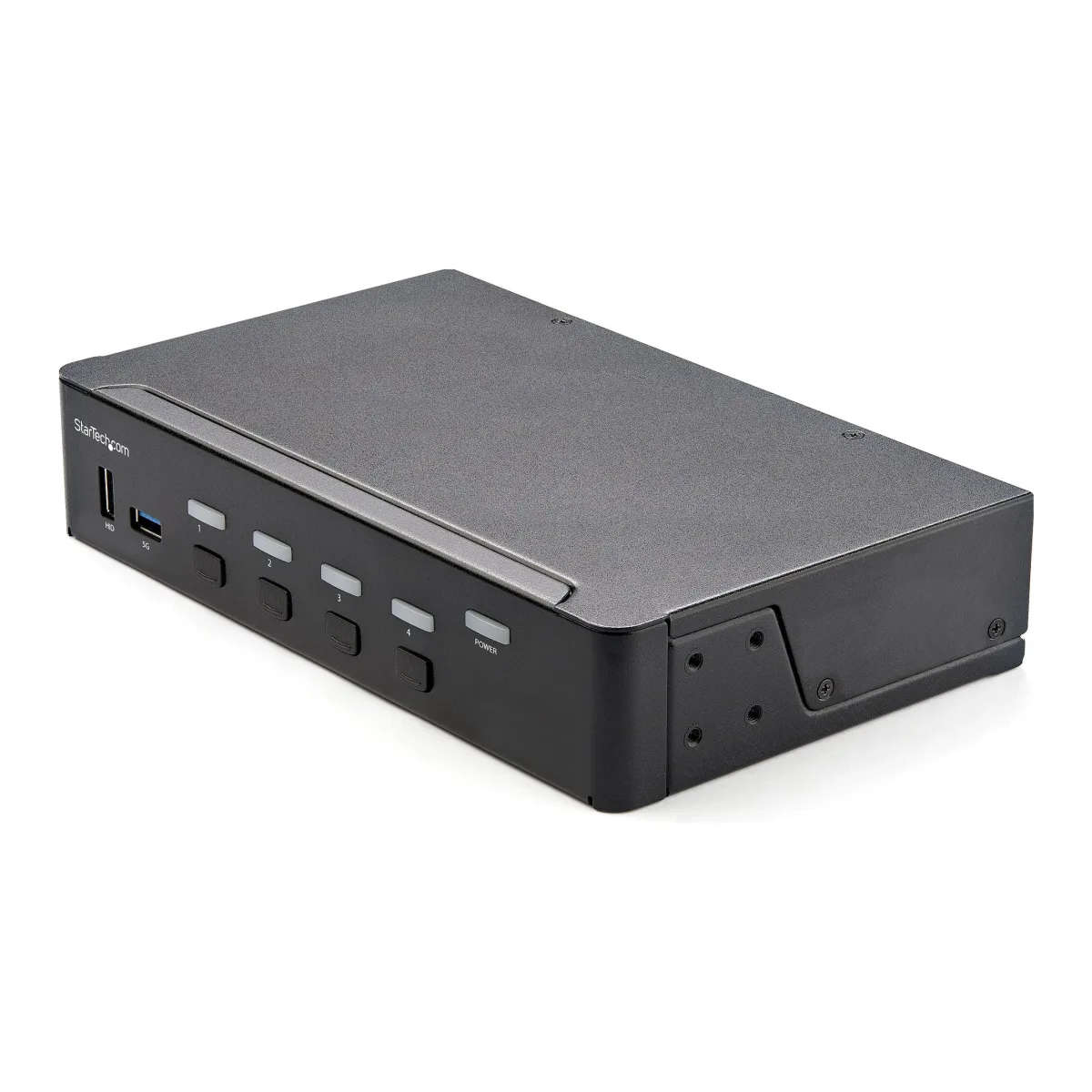

Startech 4 Port HDMI KVM Switch, Single Monitor 4K 60Hz Ultra HD HDR, Desktop HDMI 2.0 KVM Switch with 2 Port USB 3.0 Hub (5Gbps) & 4x USB 2.0 HID Ports, Audio, Hotkey Switching, TAA - KVM with Fast Switching - KVM / audio switch - 4 x KVM / audio - 1 loc is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030882019
| Number of computers controlled | 1 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 5 |
| HDMI version | 2.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Console USB ports quantity | 4 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 5 |
| Number of microphone inputs | 5 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Audio channels | 7.1 |
| Product colour | Black |
|---|---|
| Housing material | Steel |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 143000 h |
| Certification | CE, FCC, RoHS |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Input voltage | 100 - 240 V |
|---|---|
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Width | 130 mm |
|---|---|
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Package width | 212 mm |
|---|---|
| Package depth | 409 mm |
| Package height | 87 mm |
| Package weight | 1.8 kg |
| Manual | Yes |
|---|---|
| Rubber feet | Yes |
| IP control | No |
|---|
| Harmonized System (HS) code | 85176200 |
|---|---|
| Master (outer) case width | 545 mm |
| Master (outer) case length | 438 mm |
| Master (outer) case height | 258 mm |
| Products per master (outer) case | 6 pc(s) |
