Manufacturer Code: 4P-SATA-M2-ADAPTER
Overview

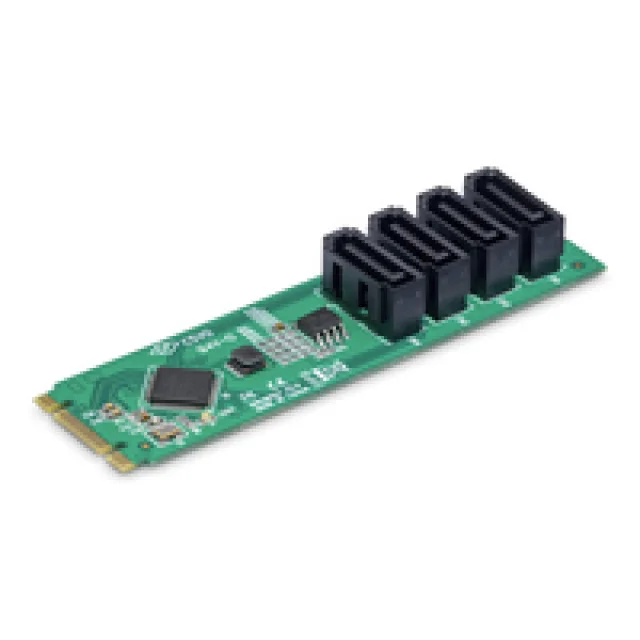

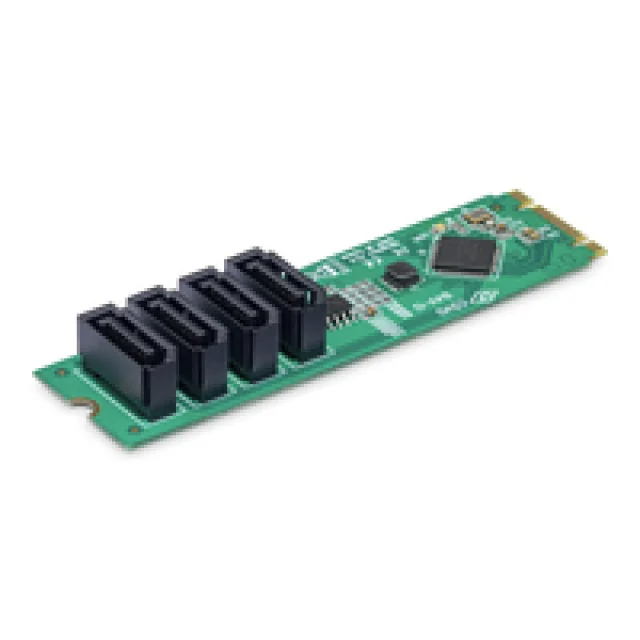

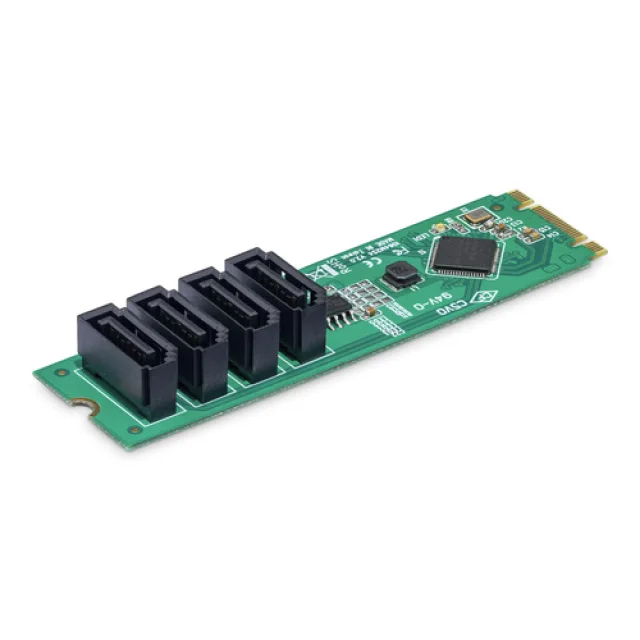

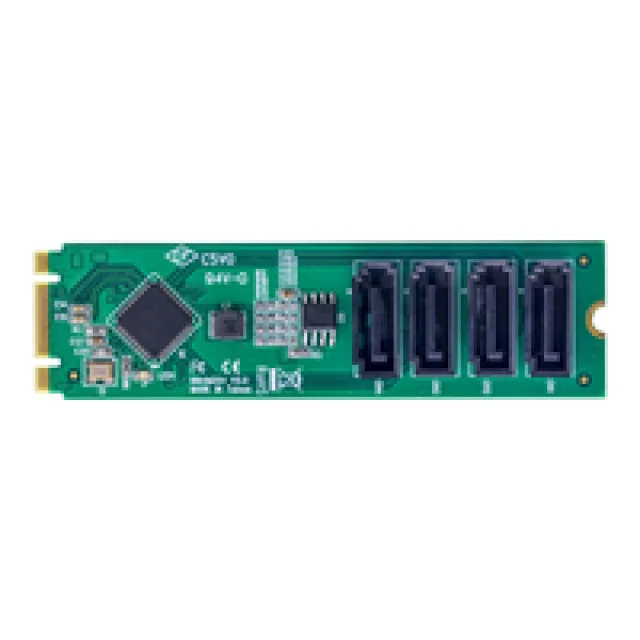

Startech 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux - Interface adapter - SATA - M.2 Card - green is available through DCS Components. It sits within the Storage Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030903745
| Host interface | M.2 |
|---|---|
| Output interface | SATA |
| Expansion card standard | PCI 3.0 |
| Internal SATA ports quantity | 4 |
| Port multiplier | Yes |
| Internal | Yes |
|---|---|
| Product colour | Green |
| LED indicators | Power |
| Mean time between failures (MTBF) | 68555579 h |
| Hot-swap | Yes |
| Chipset | ASMedia ASM1064 |
|---|---|
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64 |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma |
| Linux operating systems supported | Yes |
| Compliance certificates | RoHS |
|---|
| Width | 22 mm |
|---|---|
| Depth | 80 mm |
| Height | 11 mm |
| Weight | 8 g |
| Cables included | SATA |
|---|---|
| User guide | Yes |
| Package width | 142 mm |
| Package depth | 170 mm |
| Package height | 30 mm |
| Package weight | 142 g |
