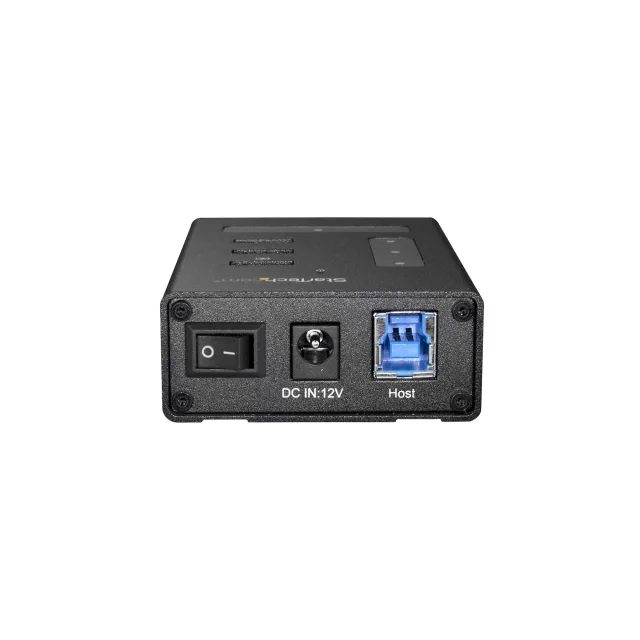

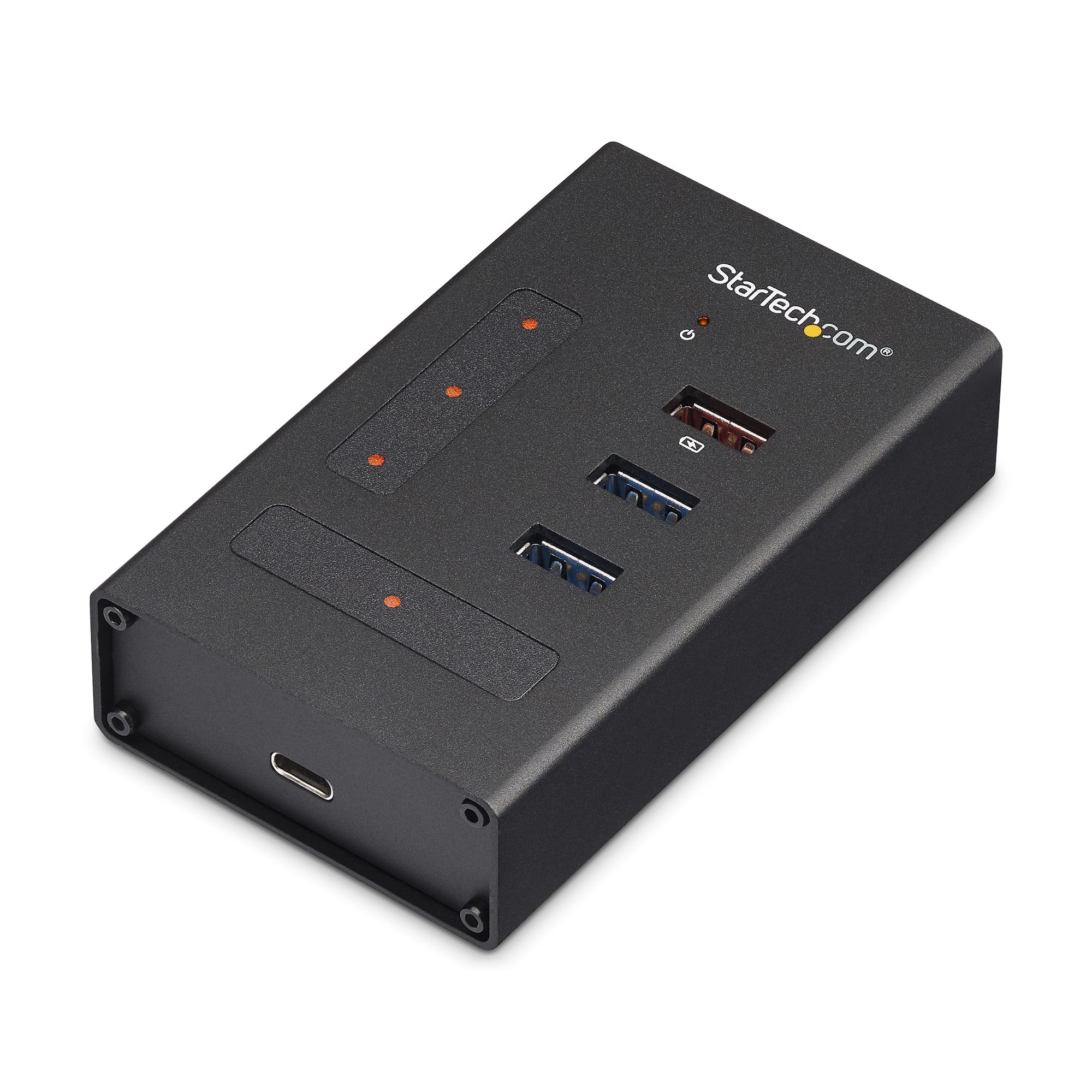

Startech 4 Port USB 3.0 Hub, USB Type-A to 1x USB-C & 3x USB-A, Commercial Metal USB Hub, SuperSpeed 5Gbps USB 3.1/3.2 Gen 1, Self Powered, BC 1.2 Fast Charge/Sync, Mountable/Rugged - Windows/macOS/Linux (HB30A3A1CST) - Hub - 3 x SuperSpeed USB 3.0 + 1 x USB-C - desktop - for P/N: SVA12M2NEUA, SVA12M5NA

Description

Manufacturer Code: HB30A3A1CST

Overview

Startech 4 Port USB 3.0 Hub, USB Type-A to 1x USB-C & 3x USB-A, Commercial Metal USB Hub, SuperSpeed 5Gbps USB 3.1/3.2 Gen 1, Self Powered, BC 1.2 Fast Charge/Sync, Mountable/Rugged - Windows/macOS/Linux (HB30A3A1CST) - Hub - 3 x SuperSpeed USB 3.0 + 1 x is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• Windows/macOS/Linux (HB30A3A1CST)
• Hub
• 3 x SuperSpeed USB 3.0 + 1 x

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030867887

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
Ports quantity	5
DC-in jack	Yes

Features

Data transfer rate	5000 Mbit/s
Product colour	Black
Housing material	Aluminium
LED indicators	Power
Hot-swap	Yes
Cable length	0.1 m
Plug and Play	Yes
Certification	CE, FCC, RoHS, REACH

Power

Power consumption (typical)	24 W
Input voltage	100 - 240 V
Input current	0.6 A
Output voltage	12 V
Output current	2 A
Power plug type	Type M

Weight & dimensions

Width	60 mm
Depth	100 mm
Height	26 mm
Weight	135 g

Packaging data

Package width	98 mm
Package depth	147 mm
Package height	95 mm
Package weight	535 g

Packaging content

AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA
Cables included	USB
Wall mounting kit	Yes
Quick installation guide	Yes

Operational conditions

Operating temperature (T-T)	5 - 35 °C
Storage temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	20 - 80%

Logistics data

Master (outer) case width	315 mm
Master (outer) case length	315 mm
Master (outer) case height	335 mm
Products per master (outer) case	18 pc(s)
Harmonized System (HS) code	84719000

Other features

Chipset	Realtek - RTS5411
