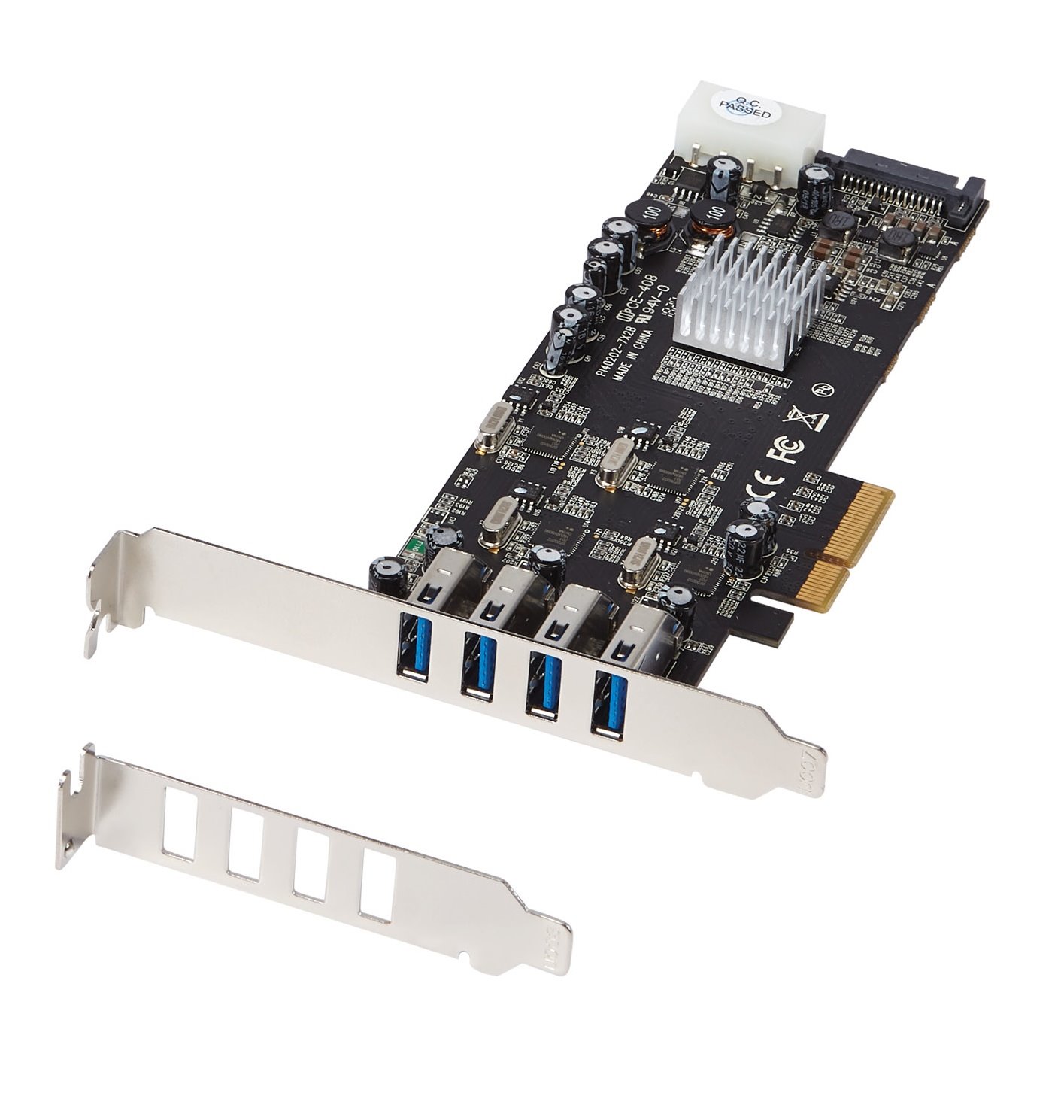

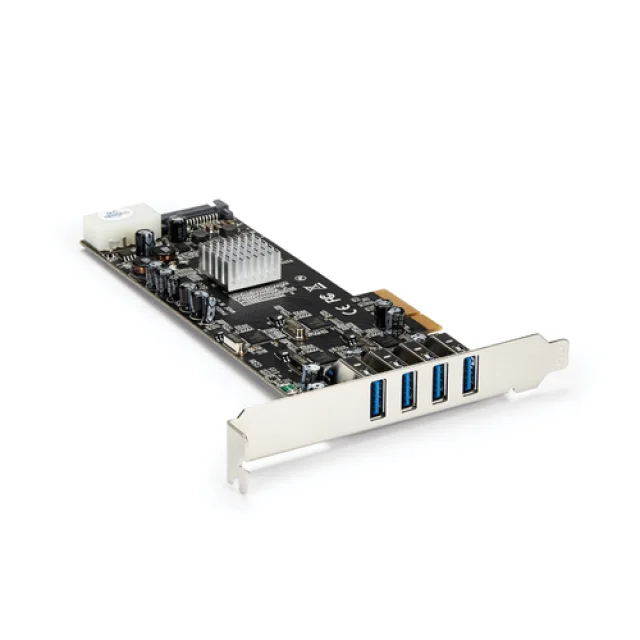

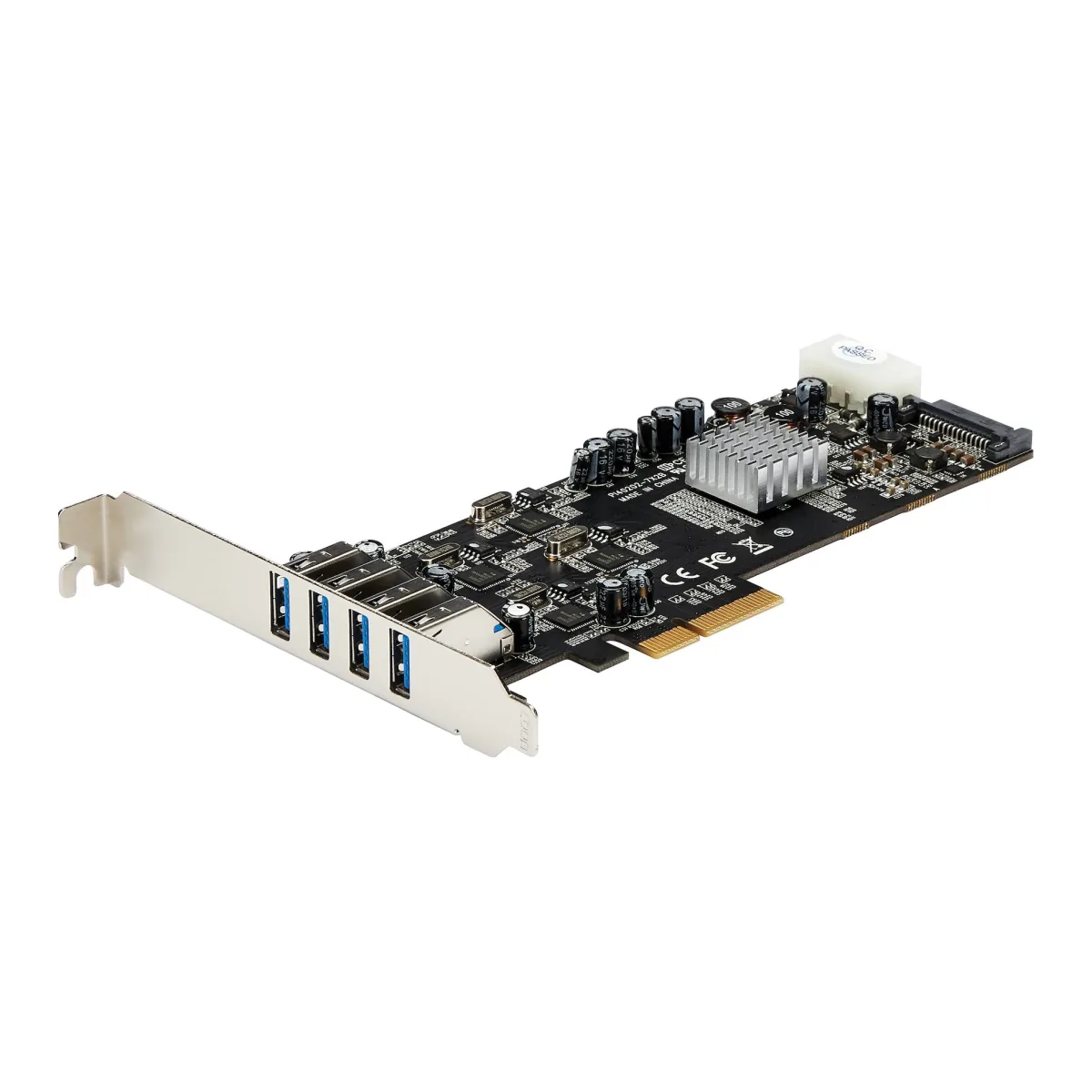

Startech 4 Port USB 3.0 PCIe Card w/ 4 Dedicated Channels - UASP - USB 3.0 PCI Express Card Adapter - USB adapter - PCIe x4 - USB 3.0 x 4 - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142

Description

Manufacturer Code: PEXUSB3S44V

Overview

Startech 4 Port USB 3.0 PCIe Card w/ 4 Dedicated Channels - UASP - USB 3.0 PCI Express Card Adapter - USB adapter - PCIe x4 - USB 3.0 x 4 - for P/N: BNDTB10GI, BNDTB210GSFP, BNDTB310GNDP, BNDTB410GSFP, BNDTB4M2E1, BNDTBUSB3142 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• UASP
• USB 3.0 PCI Express Card Adapter
• USB adapter
• PCIe x4
• USB 3.0 x 4

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030854627

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	USB 3.2 Gen 1 (3.1 Gen 1)
Expansion card form factor	Full-height / Low-profile
Expansion card standard	PCIe 2.0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Peripheral (Molex) power connectors (4-pin)	1

Design

Internal	Yes
Product colour	Black
Maximum cable length	3 m

Features

Chipset	Renesas/NEC - µPD720202
Data transfer rate (max)	20 Gbit/s
UASP support	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	5 - 85%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	15 mm
Depth	167 mm
Height	120 mm
Weight	92 g

Packaging data

Drivers included	Yes
Manual	Yes
User guide	Yes
Package width	145 mm
Package depth	208 mm
Package height	41 mm
Package weight	202 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	40 pc(s)
Master (outer) case width	418 mm
Master (outer) case length	441 mm
Master (outer) case height	313 mm
