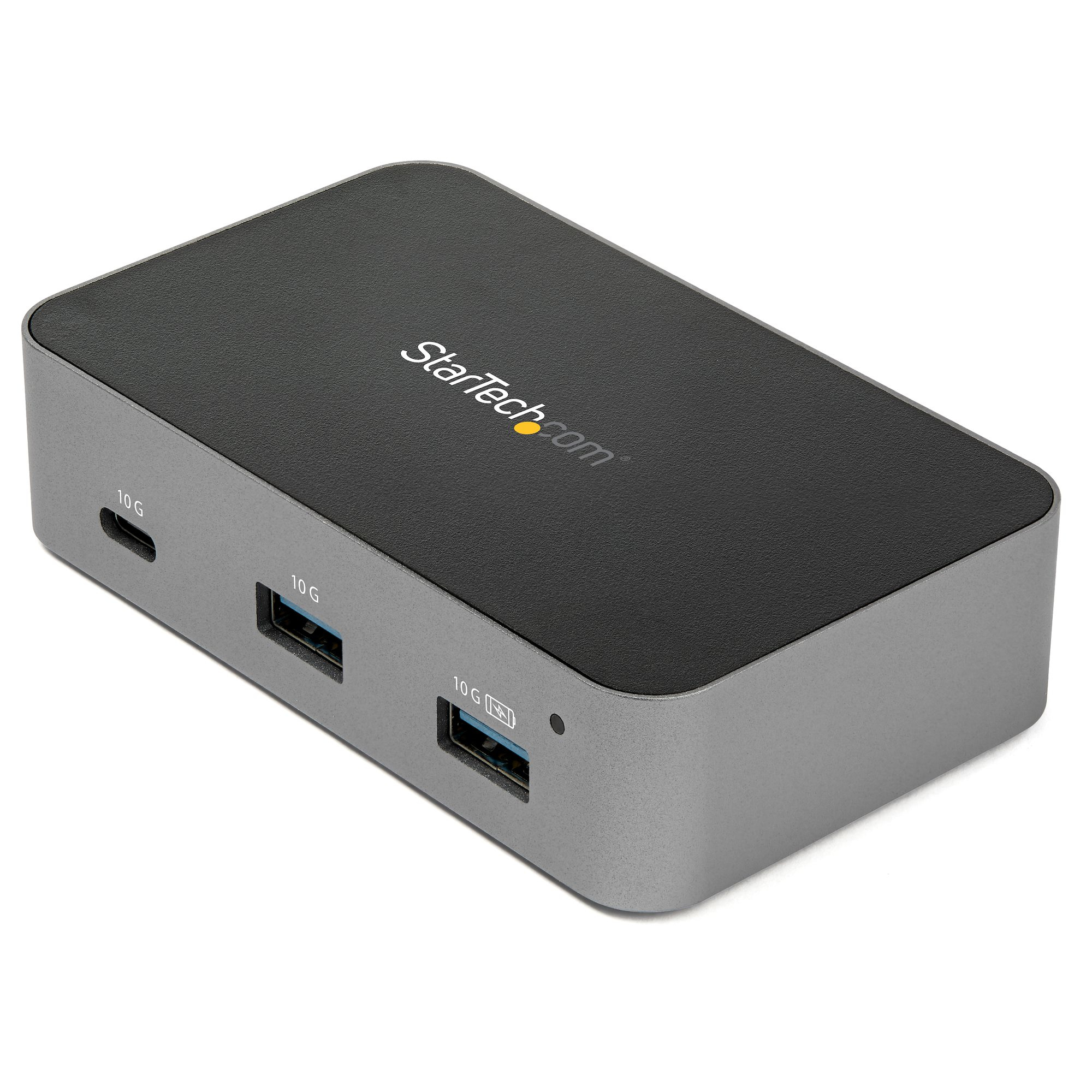

Startech 4-Port USB C Hub - USB 3.1 Gen 2 (10Gbps) - 3x USB-A & 1x USB-C - Powered - Universal Power Adapter Included (HB31C3A1CS) - Hub - 1 x USB-C + 3 x USB 3.1 - desktop - AC 110/240 V - for P/N: PEXUSB321C

Description

Manufacturer Code: HB31C3A1CS

Overview

Startech 4-Port USB C Hub - USB 3.1 Gen 2 (10Gbps) - 3x USB-A & 1x USB-C - Powered - Universal Power Adapter Included (HB31C3A1CS) - Hub - 1 x USB-C + 3 x USB 3.1 - desktop - AC 110/240 V - for P/N: PEXUSB321C is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• USB 3.1 Gen 2 (10Gbps)
• 3x USB-A & 1x USB-C
• Powered
• Universal Power Adapter Included (HB31C3A1CS)
• Hub

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030877930

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
Ports quantity	4
DC-in jack	Yes

Features

Data transfer rate	10000 Mbit/s
Product colour	Black, Grey
Housing material	Aluminium, Plastic
LED indicators	Link, Power
Cable length	1 m
Plug and Play	Yes
Certification	CE, FCC, REACH, RoHS

Network

UASP support	Yes

Power

Power supply type	AC
Power consumption (typical)	24 W
Input voltage	110 - 240 V
Input current	0.8 A
Output voltage	12 V
Output current	2 A
Power plug type	Type M

Weight & dimensions

Width	60 mm
Depth	100 mm
Height	25 mm
Weight	87 g

Packaging data

Quantity per pack	1 pc(s)
Package width	150 mm
Package depth	220 mm
Package height	50 mm
Package weight	500 g

Packaging content

AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB Type-C

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Logistics data

Master (outer) case width	325 mm
Master (outer) case length	450 mm
Master (outer) case height	580 mm
Products per master (outer) case	40 pc(s)
Harmonized System (HS) code	84719000

Other features

Chipset	Realtek - RTS5423
