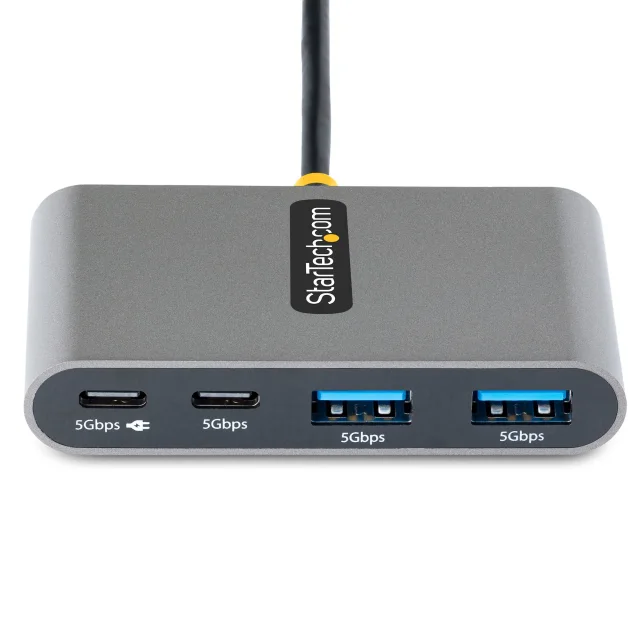

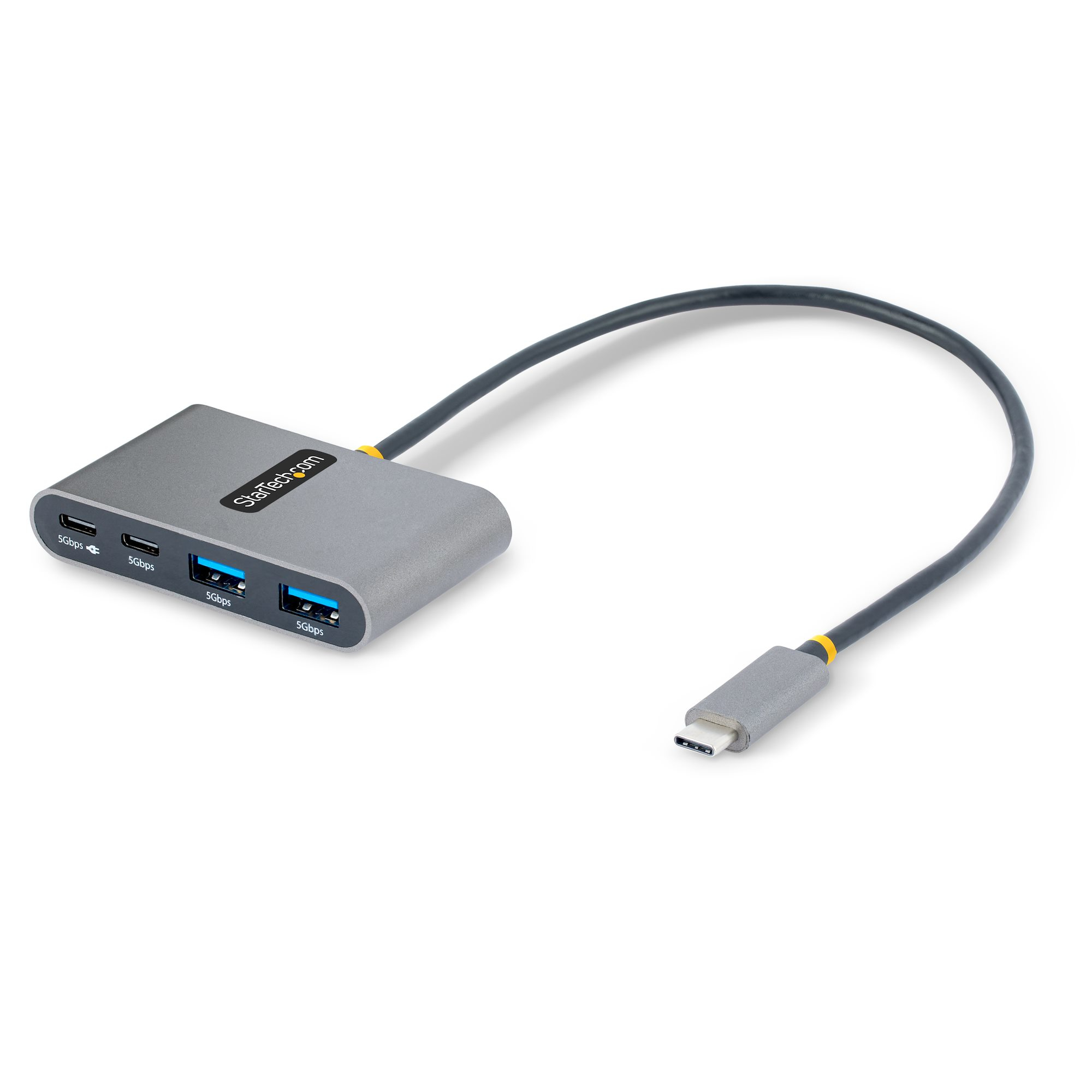

Startech 4-Port USB-C Hub with 100W Power Delivery Pass-Through Charging, 2x USB-A + 2x USB-C, 5Gbps, USBC Hub w/ 1ft (30cm) Long Cable, Portable Laptop USB Type-C to USB-A/C Hub - USB 3.0 Expansion Hub (5G2A2CPDB-USB-C-HUB) - Hub - 2 x USB 3.2 Gen 1 + 2 x USB-C 3.2 Gen 1 - desktop

Description

Manufacturer Code: 5G2A2CPDB-USB-C-HUB

Overview

Startech 4-Port USB-C Hub with 100W Power Delivery Pass-Through Charging, 2x USB-A + 2x USB-C, 5Gbps, USBC Hub w/ 1ft (30cm) Long Cable, Portable Laptop USB Type-C to USB-A/C Hub - USB 3.0 Expansion Hub (5G2A2CPDB-USB-C-HUB) - Hub - 2 x USB 3.2 Gen 1 + 2 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• USB 3.0 Expansion Hub (5G2A2CPDB-USB-C-HUB)
• Hub
• 2 x USB 3.2 Gen 1 + 2

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030894807

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A, USB 3.2 Gen 1 (3.1 Gen 1) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	2
Ports quantity	4

Features

Data transfer rate	5000 Mbit/s
Product colour	Grey
Housing material	Plastic
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Cable length	0.3 m

Network

UASP support	Yes

Power

Power supply type	USB
Power consumption (typical)	15 W
Output voltage	5 V
Output current	0.9 A

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Other operating systems supported	Android

Weight & dimensions

Width	75 mm
Depth	42 mm
Height	14 mm
Weight	41 g

Packaging data

Package width	142 mm
Package depth	175 mm
Package height	30 mm
Package weight	94 g

Operational conditions

Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-5 - 70 °C
Operating relative humidity (H-H)	5 - 85%

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	530 mm
Master (outer) case length	330 mm
Master (outer) case height	310 mm
Products per master (outer) case	60 pc(s)

Technical details

Compliance certificates	RoHS

Other features

Chipset	Fresco - FL7102, Fresco - FL5001
