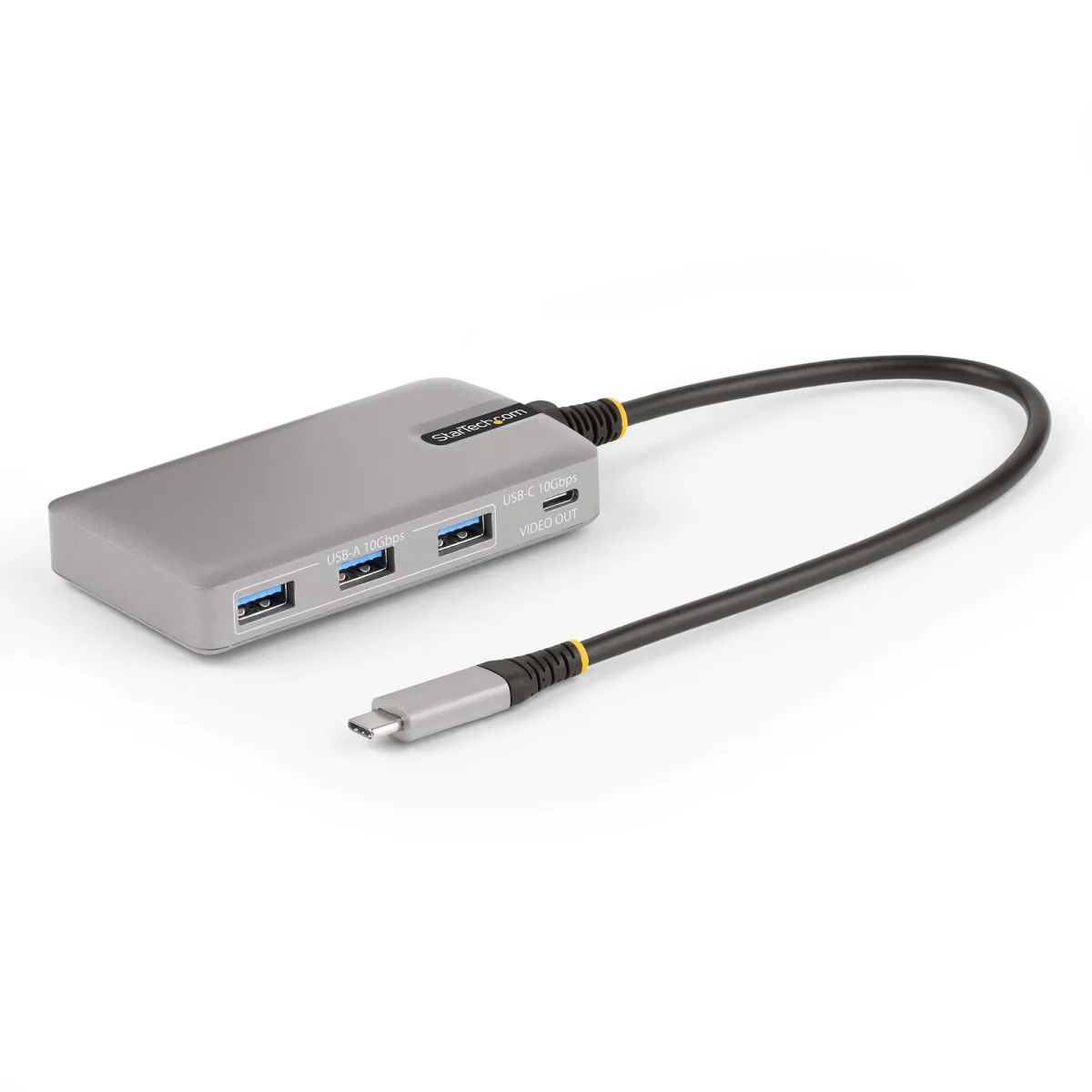

Startech 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz, 3x USB-A, 1x USB-C, 100W Power Delivery Pass-Through, USB 3.2 Gen 2 (10Gbps), Portable USB Type-C to USB Type-A/C - 1ft (30cm) Host Cable (HB31C3A1CDPPD3) - Hub - 1 x USB-C + 3 x USB 3.2 Gen 2 - desktop

Description

Manufacturer Code: HB31C3A1CDPPD3

Overview

Startech 4-Port USB-C Hub with USB-C DP Alt Mode Video Output 4K 60Hz, 3x USB-A, 1x USB-C, 100W Power Delivery Pass-Through, USB 3.2 Gen 2 (10Gbps), Portable USB Type-C to USB Type-A/C - 1ft (30cm) Host Cable (HB31C3A1CDPPD3) - Hub - 1 x USB-C + 3 x USB 3 is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• 1ft (30cm) Host Cable (HB31C3A1CDPPD3)
• Hub
• 1 x USB-C + 3 x USB 3

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030893022

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-C, USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	1
DisplayPort version	1.4
Ports quantity	4
USB Type-C DisplayPort Alternate Mode	Yes

Features

Data transfer rate	10000 Mbit/s
Maximum refresh rate	60 Hz
Supported graphics resolutions	4096 x 2160
Product colour	Silver
USB Power Delivery (USB PD)	Yes
USB Power Delivery revision	3.0
USB Power Delivery up to	100 W
Overcurrent protection	Yes

Network

UASP support	Yes

Power

Power supply type	USB
Power consumption (max)	18 W

Weight & dimensions

Width	54 mm
Depth	98 mm
Height	16 mm
Weight	98 g

Packaging data

Package width	142 mm
Package depth	170 mm
Package height	30 mm
Package weight	133 g

Packaging content

Quick start guide	Yes

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	473 mm
Master (outer) case length	331 mm
Master (outer) case height	440 mm
Products per master (outer) case	70 pc(s)

Technical details

Compliance certificates	CE, RoHS

Other features

Chipset	VIA - VL103-Q4, VIA - VL822-Q7, Parade - PS8802, Parade - FL7102-2L0, TMI - IM2605, Realtek - RTD2186
