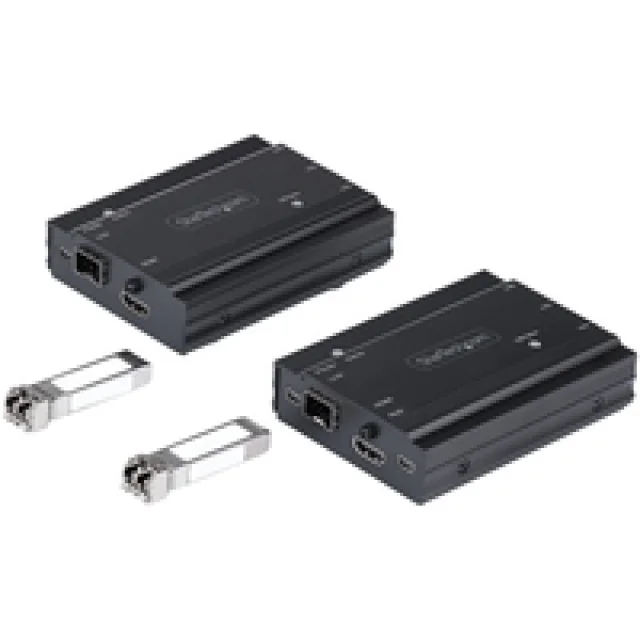

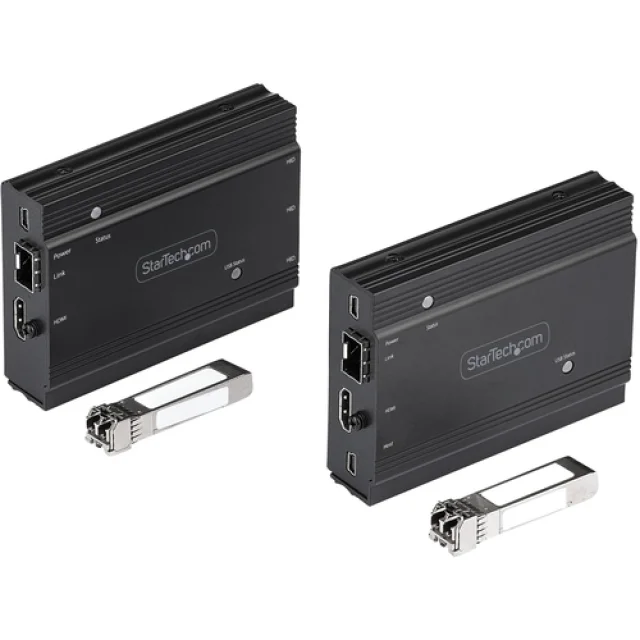

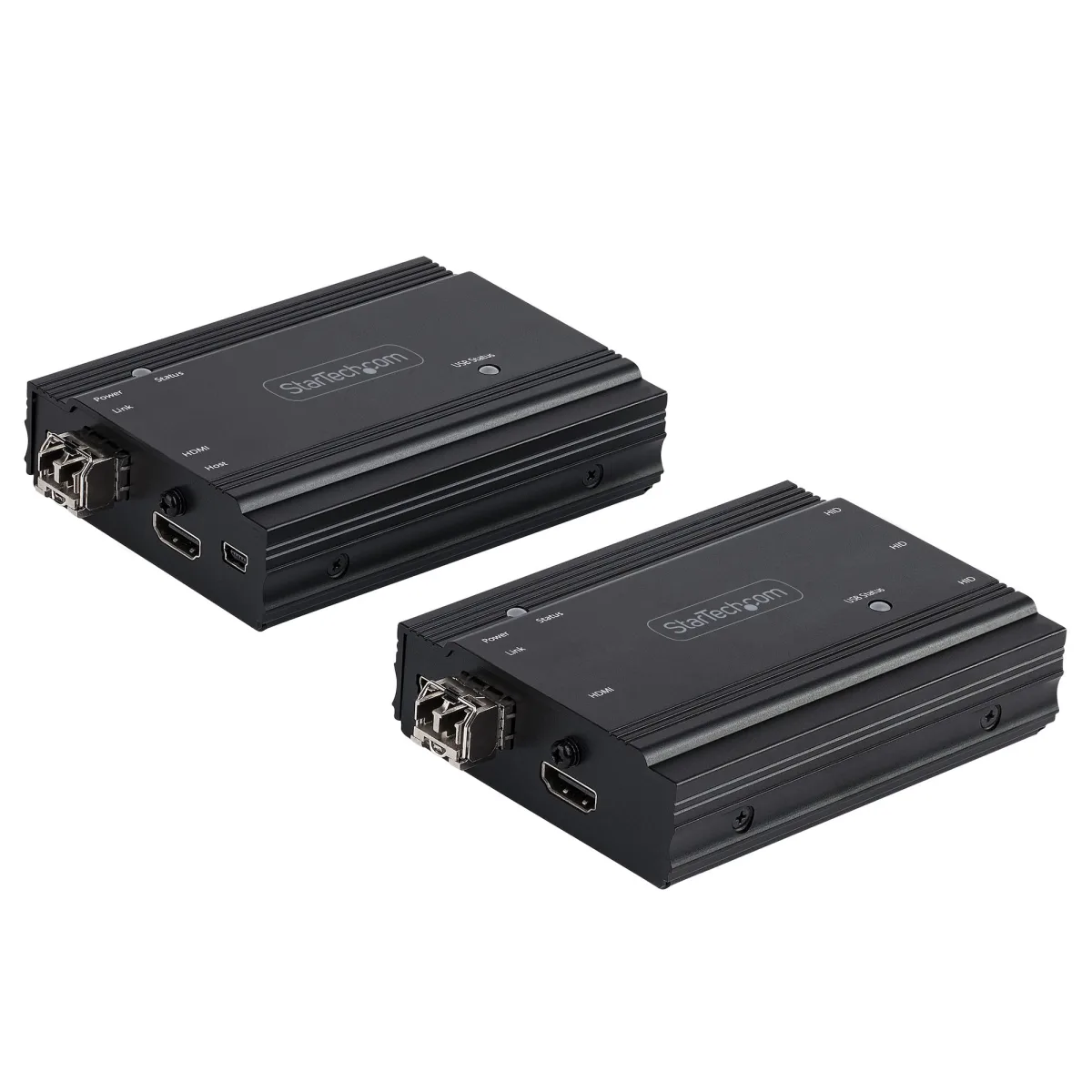

Startech 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ modules, Remote KVM Switch/Console Extender, KVM Extension Kit (TX/RX) - Transmitter & Receiver - KVM / audio extender - 10GbE - over fibre optic - USB - 10GBase-SR - up to 300 m - 850 nm

Description

Manufacturer Code: SV565FXHD4KU

Overview

Startech 4K HDMI KVM Extender over Fiber, HDMI Video & USB over Fiber, up to 984ft/300m (MultiMode), 10G MMF SFP+ modules, Remote KVM Switch/Console Extender, KVM Extension Kit (TX/RX) - Transmitter & Receiver - KVM / audio extender - 10GbE - over fibre o is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• Transmitter & Receiver
• KVM / audio extender
• 10GbE
• over fibre o

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030887694

Specifications

Features

Type	Transmitter & receiver
Connectivity technology	Wired
Maximum transfer distance	500 m
Rack mounting	No
Maximum digital resolution	3840 x 2160 pixels
Maximum refresh rate	60 Hz
On Screen Display (OSD)	No
Product colour	Black
Material	Metal
LED indicators	Power, Status

Transmitter

Transmitter video port type	HDMI
Number of displays supported	1

Receiver

Receiver local video port type	HDMI

Ports & interfaces

USB 1.1 ports quantity	3

Power

AC input voltage	100 - 240 V
Input current	0.3 A
AC adapter output voltage	5 V
AC adapter output current	2 A
Power consumption (transmitter) (max)	10 W
Power consumption (receiver) (max)	10 W

Weight & dimensions

Transmitter width	7.5 cm
Transmitter depth	10 cm
Transmitter height	2.8 cm
Transmitter weight	450 g
Receiver width	7.5 cm
Receiver depth	10 cm
Receiver height	2.8 cm
Receiver weight	450 g

Packaging data

Package width	180 mm
Package depth	310 mm
Package height	75 mm
Package weight	140 g

Packaging content

AC adapter included	Yes
Cables included	Mini-USB
Quick installation guide	Yes

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Other features

Compliance certificates	CE, RoHS

Technical details

Weight	500 g

Logistics data

Harmonized System (HS) code	84733080
Master (outer) case width	405 mm
Master (outer) case length	330 mm
Master (outer) case height	265 mm
Products per master (outer) case	6 pc(s)
