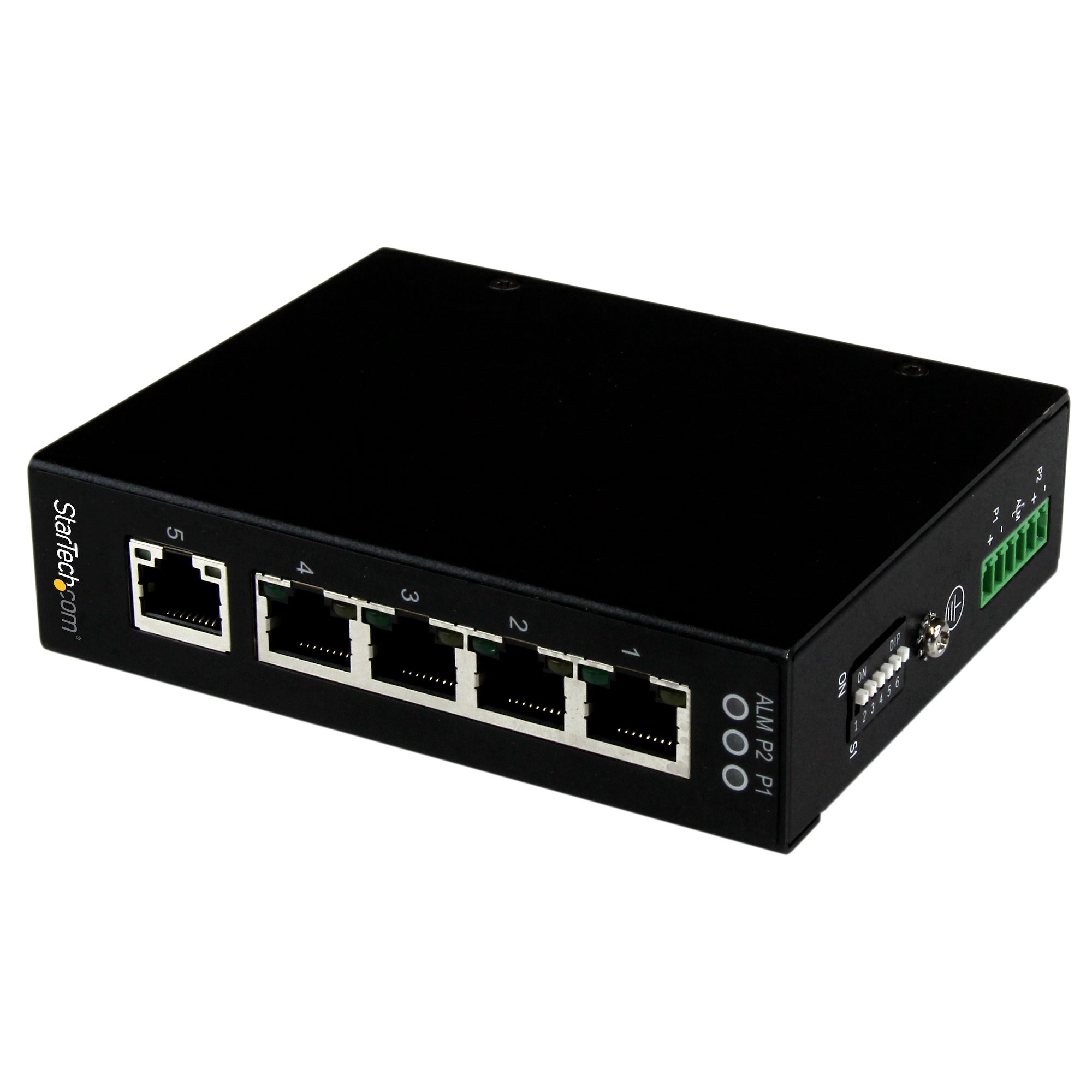

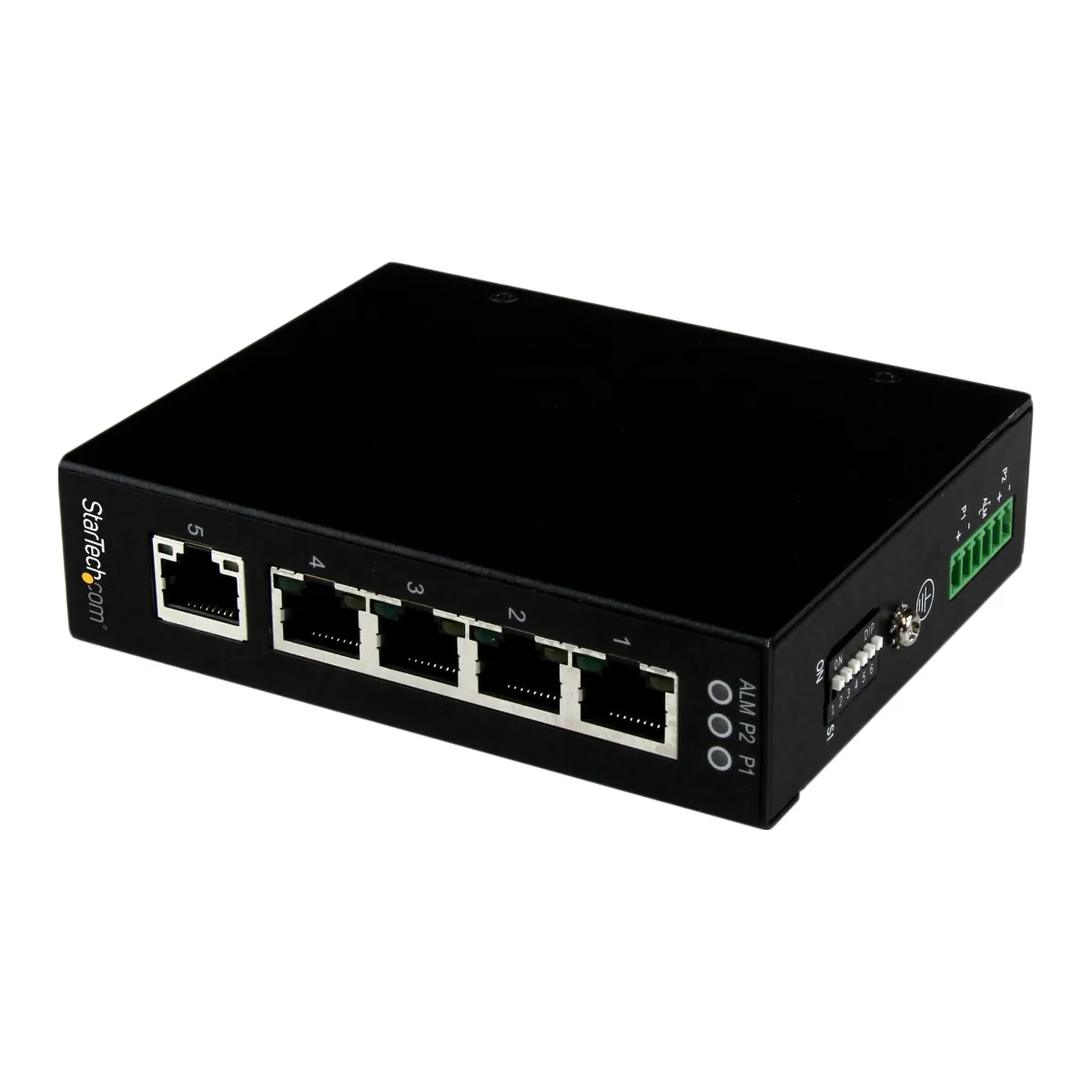

Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch (IES51000) - Switch - 5 x 10/100/1000 - desktop, DIN rail mountable, wall-mountable - DC power

Description

Manufacturer Code: IES51000

Overview

Startech 5 Port Unmanaged Industrial Gigabit Ethernet Switch - DIN Rail / Wall-Mountable Network Switch - Rugged IP30 Gigabit Switch (IES51000) - Switch - 5 x 10/100/1000 - desktop, DIN rail mountable, wall-mountable - DC power is available through DCS Components. It sits within the Managed Switches category.

Key product details

• DIN Rail / Wall-Mountable Network Switch
• Rugged IP30 Gigabit Switch (IES51000)
• Switch
• 5 x 10/100/1000
• desktop, DIN rail mountable, wall-mountable

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030859318

Specifications

Management features

Switch type	Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity	5
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Power connector	DC-in jack

Network

Networking standards	IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u
10G support	No
Full duplex	Yes
Link aggregation	Yes
Auto MDI/MDI-X	Yes

Data transmission

Switching capacity	2 Gbit/s
Store-and-forward	Yes
Jumbo frames support	Yes

Design

Product colour	Black
Housing material	Steel
LED indicators	Activity, Link, Power
International Protection (IP) code	IP30
Wall mountable	Yes

Performance

Maximum cable length	100 m
Buffer size	128 KB

Power

Input voltage	12 - 58 V
Power consumption (typical)	3.63 W

Power over Ethernet (PoE)

Power over Ethernet (PoE)	No

Operational conditions

Operating temperature (T-T)	-40 - 75 °C
Storage temperature (T-T)	-40 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Width	89 mm
Depth	111 mm
Height	28 mm
Weight	328 g

Packaging content

Manual	Yes

Packaging data

Wall mounting kit	Yes
Terminal block included	Yes
Mounting brackets included	Yes
Screws included	Yes
DIN rail included	Yes
Package width	139 mm
Package depth	176 mm
Package height	83 mm
Package weight	523 g

Certificates

Certification	CE, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code	85176990
