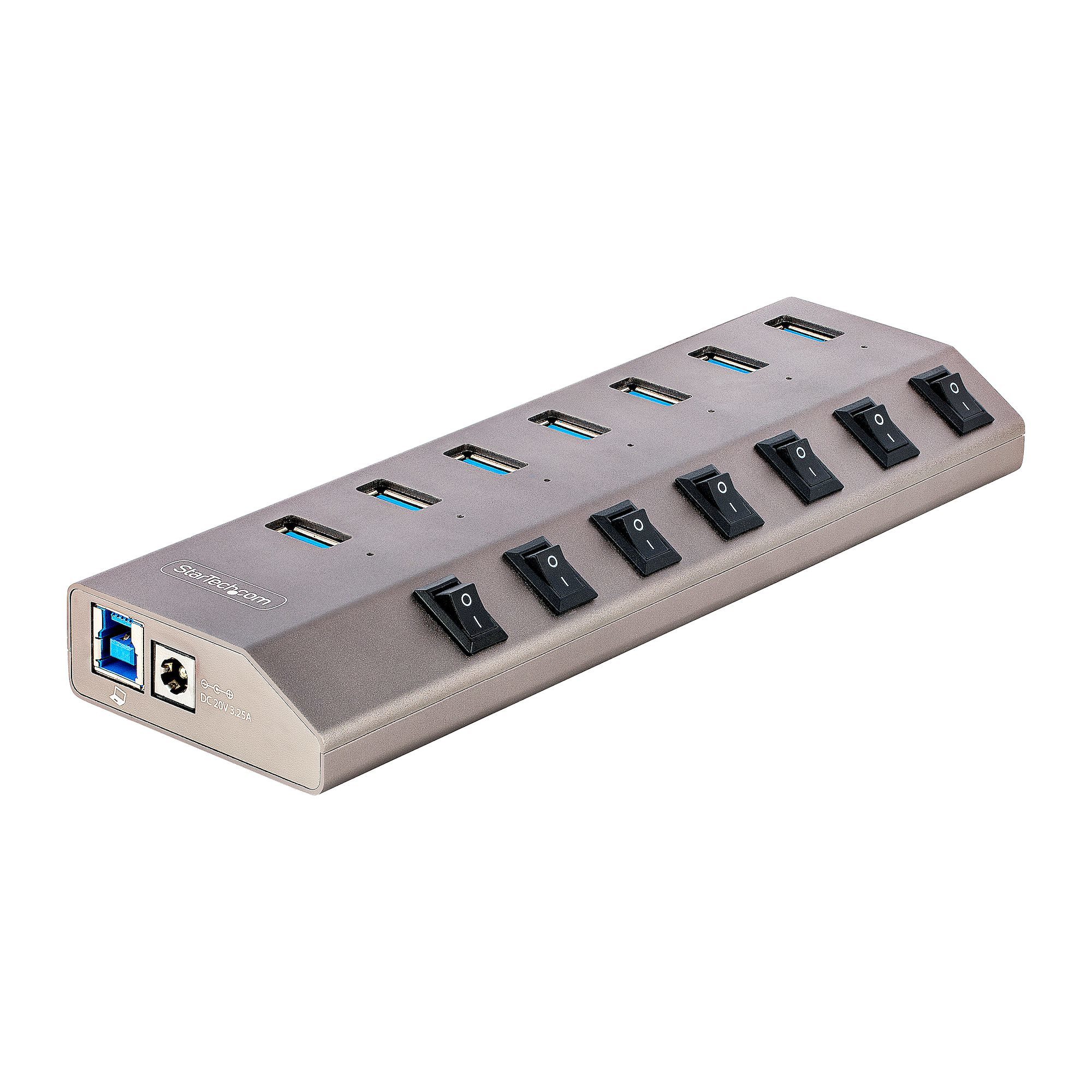

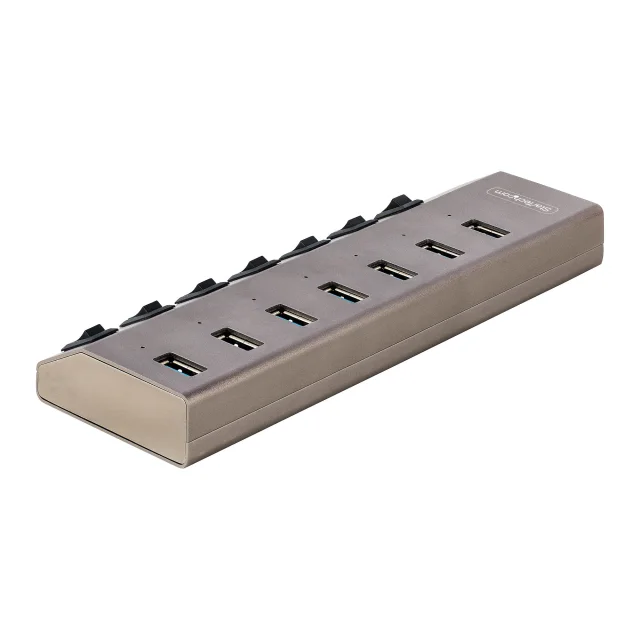

Startech 7-Port Self-Powered USB-C Hub with Individual On/Off Switches, USB 3.0 5Gbps Expansion Hub w/Power Supply, Desktop/Laptop USB-C to USB-A Hub, 7x BC 1.2 (1.5A), USB Type C Hub - USB-C/A Host Cables (5G7AIBS-USB-HUB-EU) - Hub - 7 x USB 3.2 Gen 1 - desktop

Description

Manufacturer Code: 5G7AIBS-USB-HUB-EU

Overview

Startech 7-Port Self-Powered USB-C Hub with Individual On/Off Switches, USB 3.0 5Gbps Expansion Hub w/Power Supply, Desktop/Laptop USB-C to USB-A Hub, 7x BC 1.2 (1.5A), USB Type C Hub - USB-C/A Host Cables (5G7AIBS-USB-HUB-EU) - Hub - 7 x USB 3.2 Gen 1 - is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• USB-C/A Host Cables (5G7AIBS-USB-HUB-EU)
• Hub
• 7 x USB 3.2 Gen 1 -

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030895507

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Ports quantity	7
DC-in jack	Yes

Features

Data transfer rate	5000 Mbit/s
Product colour	Grey
Housing material	Plastic
Fast charging	Yes
LED indicators	Yes
Cable length	1 m
Plug and Play	Yes

Network

UASP support	Yes

Power

Power supply type	DC
Power consumption (typical)	65 W
Input voltage	110 - 240 V
Output voltage	20 V
Output current	3.25 A
Power plug type	Type M

Weight & dimensions

Width	188 mm
Depth	59 mm
Height	21 mm
Weight	208 g

Packaging data

Package width	225 mm
Package depth	170 mm
Package height	70 mm
Package weight	5 kg

Packaging content

AC adapter included	Yes
Included power plug types	EU, UK
Cables included	USB

Operational conditions

Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	10 - 90%

Performance

Mean time between failures (MTBF)	50000 h

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	470 mm
Master (outer) case length	380 mm
Master (outer) case height	190 mm
Products per master (outer) case	10 pc(s)
Harmonized System (HS) code	84719000

Technical details

Compliance certificates	CE, RoHS

Other features

Chipset	VIA - VL817
