Manufacturer Code: ST7300USBME
Overview

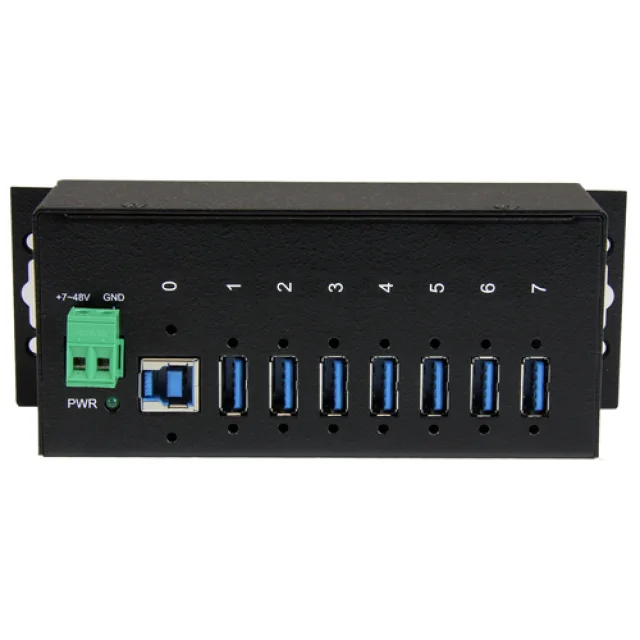

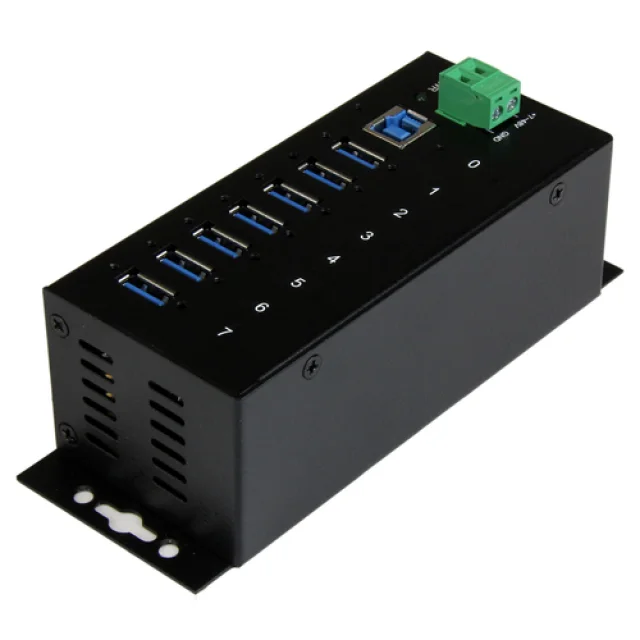

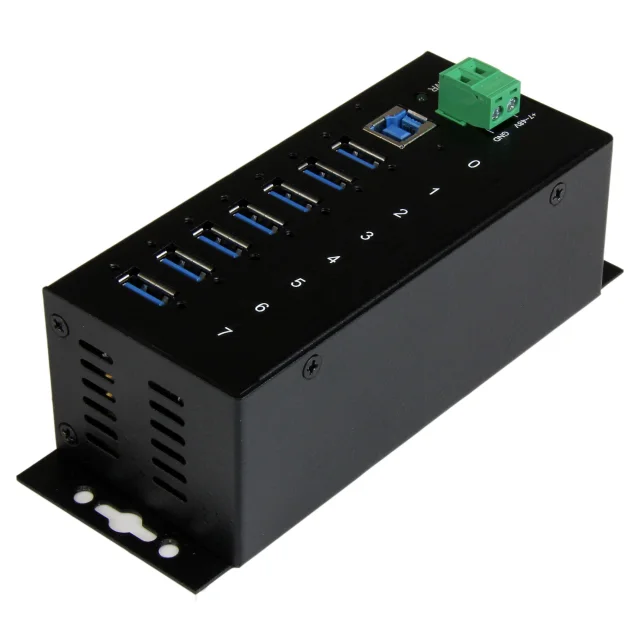

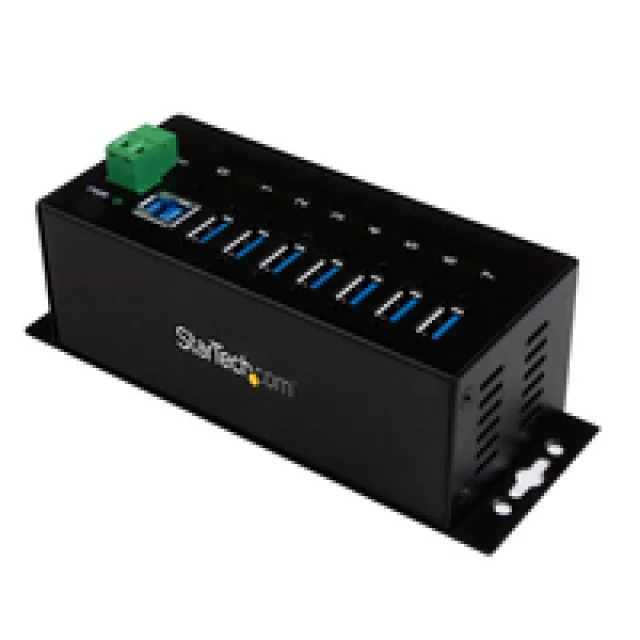

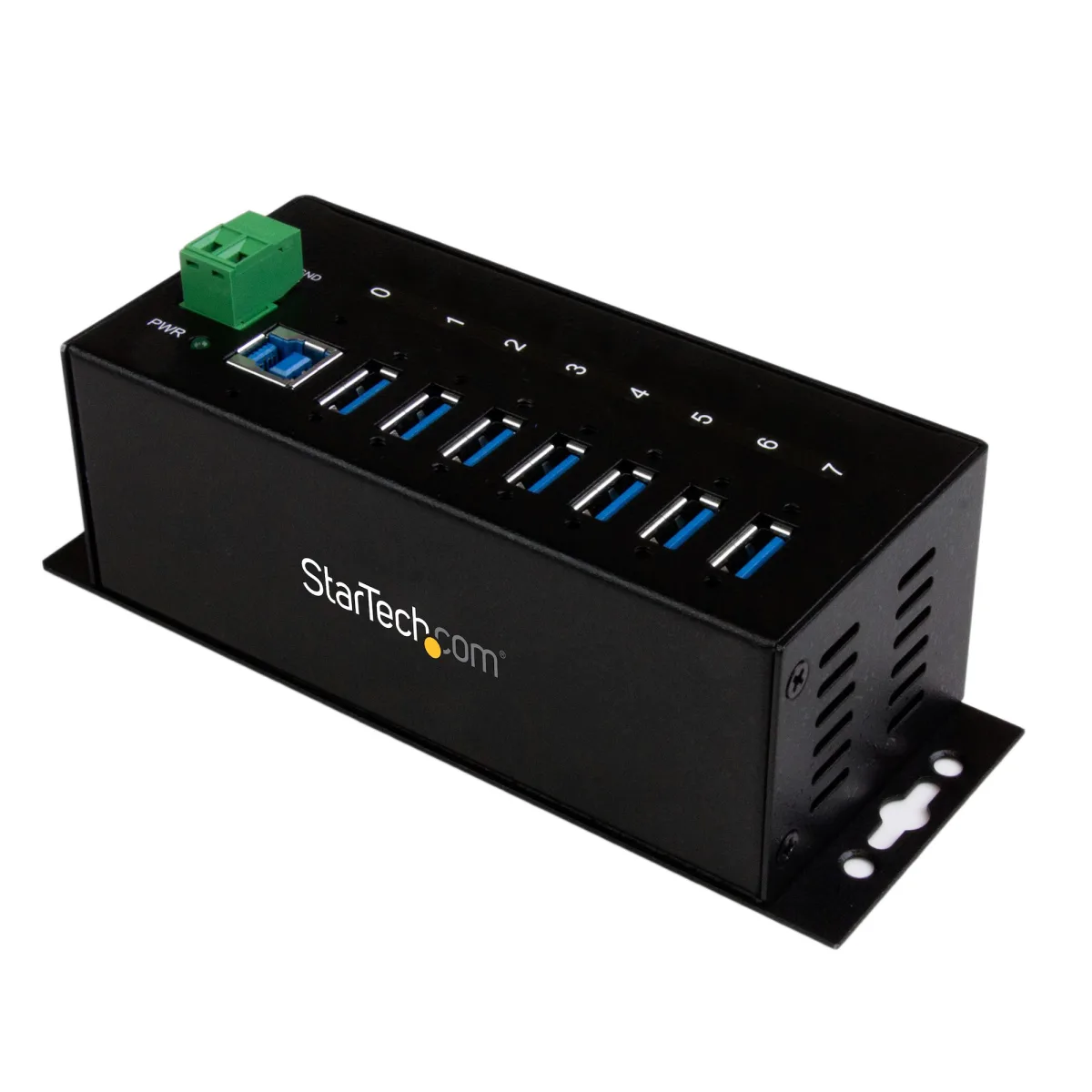

Startech 7-Port USB 3.0 Hub - Metal Industrial USB-A Hub with ESD Protection & 350W Surge Protection - Din Rail, Wall or Desk Mountable - TAA Compliant USB Expander Hub (ST7300USBME) - Hub - 7 x SuperSpeed USB 3.0 - DIN rail mountable, wall-mountable - DC is available through DCS Components. It sits within the General Catalogue category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030860352
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
|---|---|
| Hub interfaces | USB 3.2 Gen 1 (3.1 Gen 1) Type-A |
| Ports quantity | 7 |
| Terminal block port | Yes |
| Data transfer rate | 5000 Mbit/s |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| Surge protection | Yes |
| LED indicators | Power |
| Certification | CE, FCC, RoHS, TAA, REACH |
| Power source type | DC |
|---|---|
| Input voltage | 7 - 48 V |
| Width | 54 mm |
|---|---|
| Depth | 145 mm |
| Height | 45 mm |
| Weight | 325 g |
| Package width | 295 mm |
|---|---|
| Package depth | 190 mm |
| Package height | 69 mm |
| Package weight | 600 g |
| Cables included | USB |
|---|---|
| Manual | Yes |
| Terminal block included | Yes |
| DIN rail kit included | Yes |
| Operating temperature (T-T) | 0 - 70 °C |
|---|---|
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Mean time between failures (MTBF) | 126106 h |
|---|
| Master (outer) case width | 397 mm |
|---|---|
| Master (outer) case length | 511 mm |
| Master (outer) case height | 326 mm |
| Products per master (outer) case | 14 pc(s) |
| Harmonized System (HS) code | 84719000 |
| Chipset | Genesys Logic - GL3520 |
|---|
