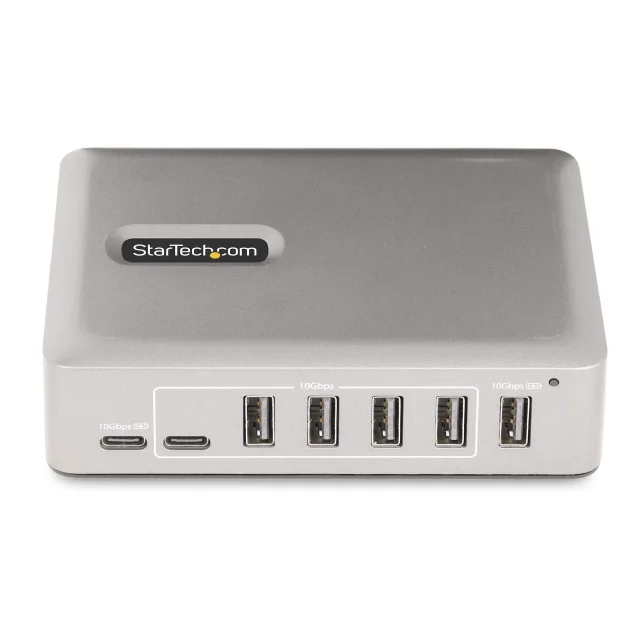

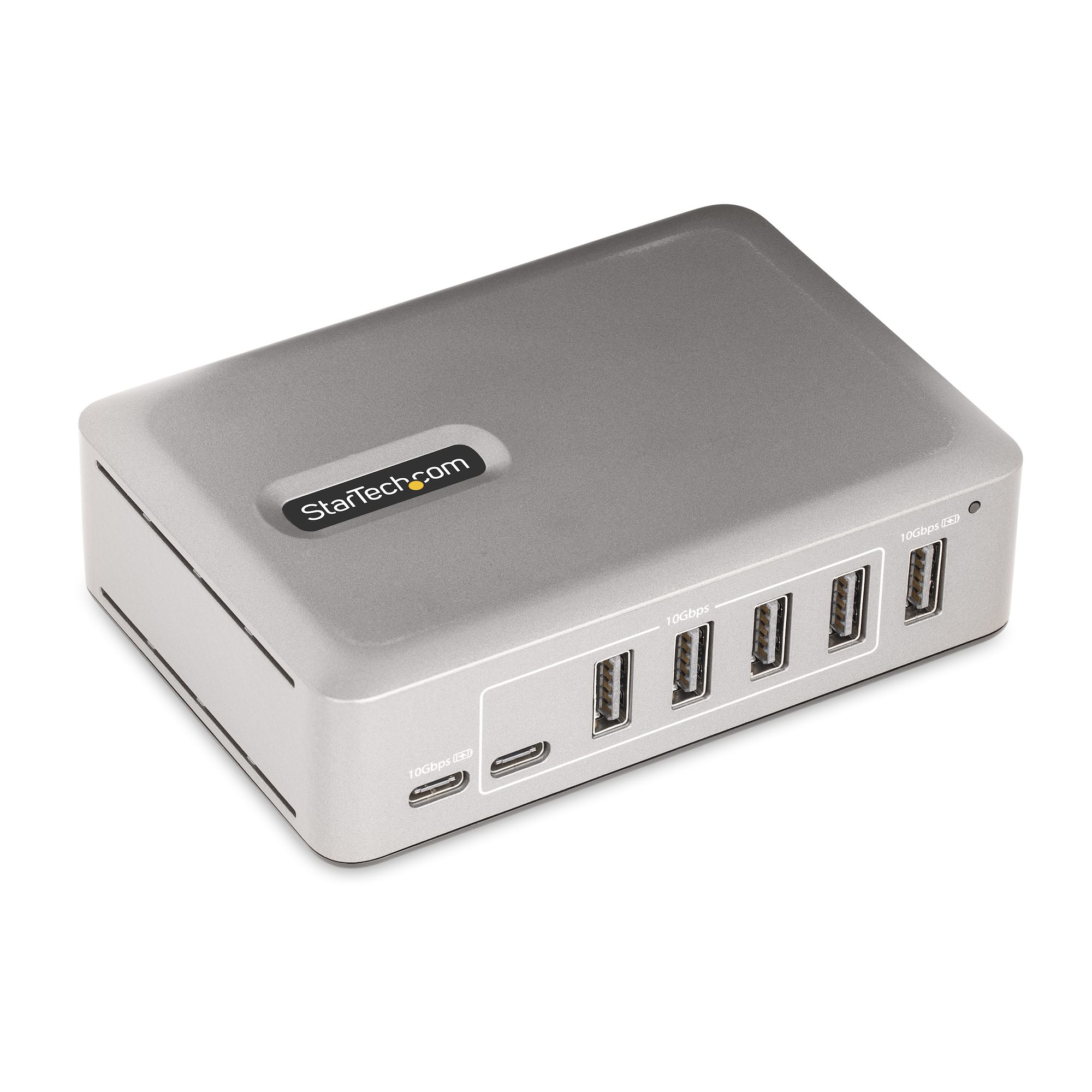

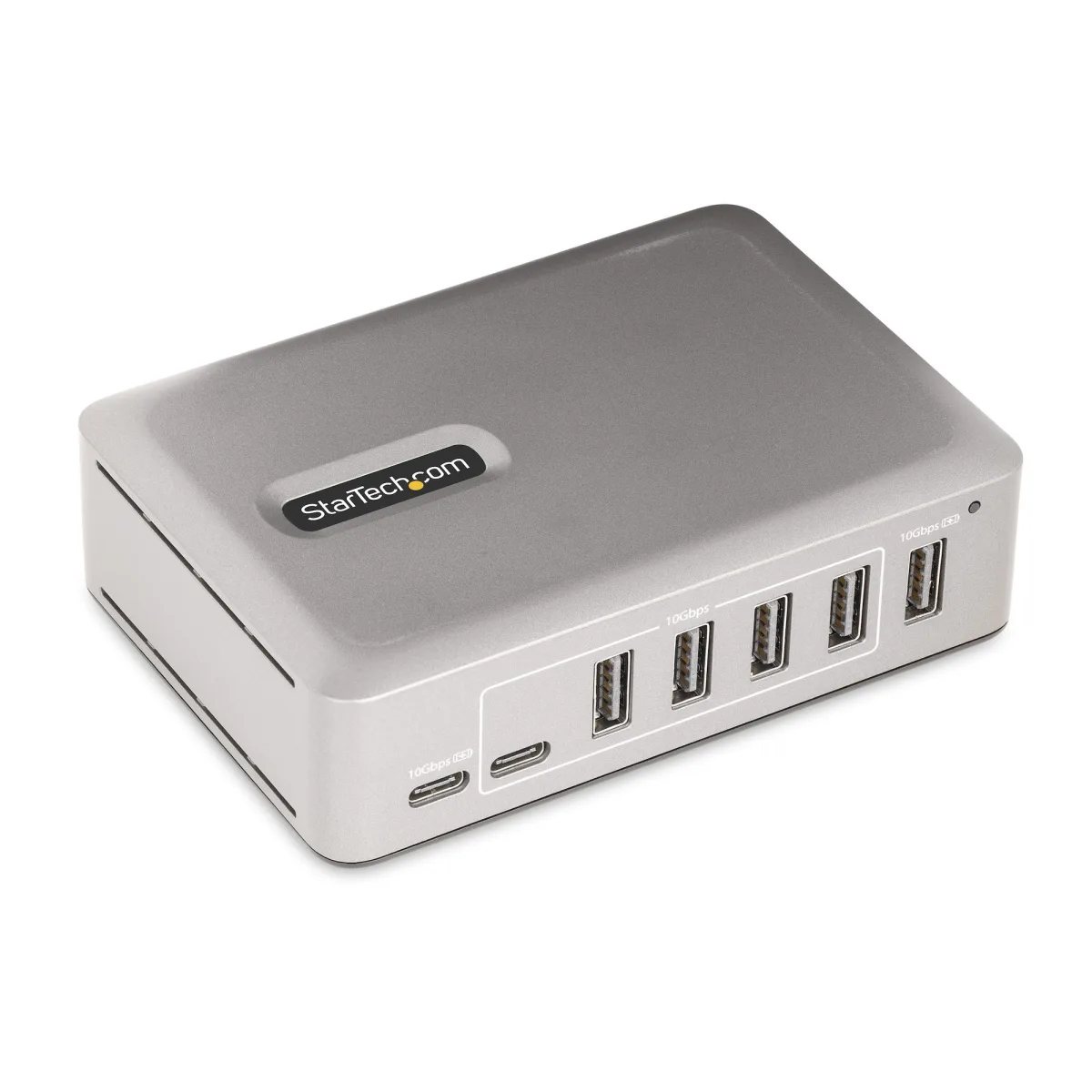

Startech 7-Port USB-C Hub, 5x USB-A + 2x USB-C, Self-Powered w/ 65W Power Supply, USB 3.1 10Gbps Hub w/ BC1.2 Charging, Desktop/Laptop USB Hub with 3ft Locking USB-IF Certified Cable - USB Expansion Hub (10G5A2CS-USB-C-HUB) - Hub - 5 x USB 3.2 Gen 2 + 2 x USB-C 3.2 Gen 2 - desktop

Description

Manufacturer Code: 10G5A2CS-USB-C-HUB

Overview

Startech 7-Port USB-C Hub, 5x USB-A + 2x USB-C, Self-Powered w/ 65W Power Supply, USB 3.1 10Gbps Hub w/ BC1.2 Charging, Desktop/Laptop USB Hub with 3ft Locking USB-IF Certified Cable - USB Expansion Hub (10G5A2CS-USB-C-HUB) - Hub - 5 x USB 3.2 Gen 2 + 2 x is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• USB Expansion Hub (10G5A2CS-USB-C-HUB)
• Hub
• 5 x USB 3.2 Gen 2 + 2 x

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030899086

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 2 (3.1 Gen 2) Type-C
Hub interfaces	USB 3.2 Gen 2 (3.1 Gen 2) Type-A, USB 3.2 Gen 2 (3.1 Gen 2) Type-C
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
Ports quantity	7
DC-in jack	Yes

Features

Data transfer rate	10000 Mbit/s
Product colour	Silver
LED indicators	Status
Cable jacket material	Thermoplastic elastomer (TPE)
Cable length	1 m

Network

UASP support	Yes

Power

Power supply type	DC
Power consumption (typical)	65 W
Input voltage	100 - 240 V
Output voltage	19 V
Output current	3.42 A
Power plug type	Type M

Weight & dimensions

Width	80 mm
Depth	115 mm
Height	30 mm
Weight	287 g

Packaging data

Package width	170 mm
Package depth	225 mm
Package height	93 mm
Package weight	287 g

Packaging content

AC adapter included	Yes
Included power plug types	EU, UK, US
Cables included	USB Type-C to USB Type-C

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-20 - 70 °C
Operating relative humidity (H-H)	0 - 95%

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	272 mm
Master (outer) case length	380 mm
Master (outer) case height	510 mm
Products per master (outer) case	10 pc(s)

Technical details

Compliance certificates	CE, RoHS

Other features

Chipset	VIA - VL822-Q7, VIA - VL162
