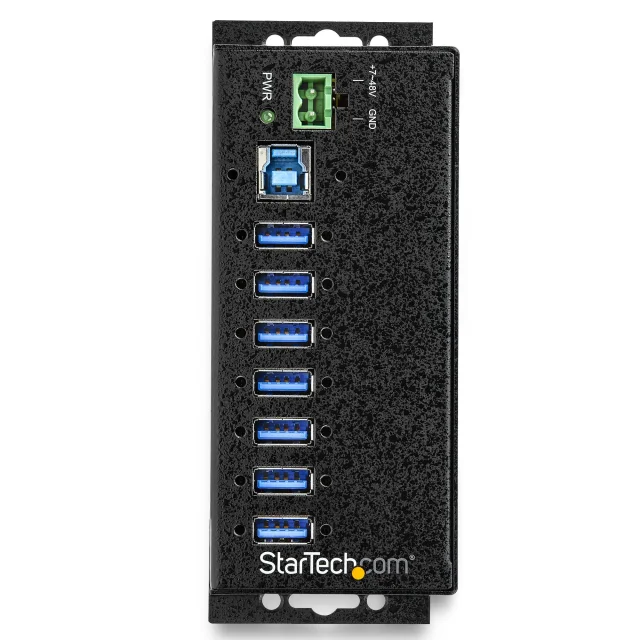

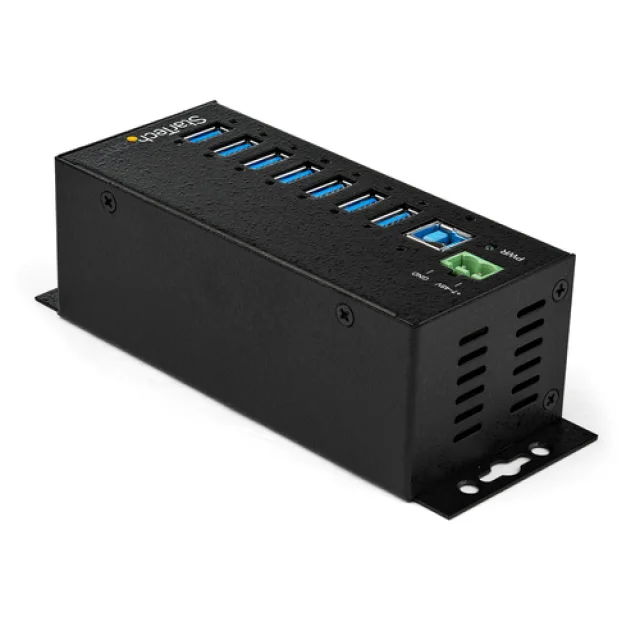

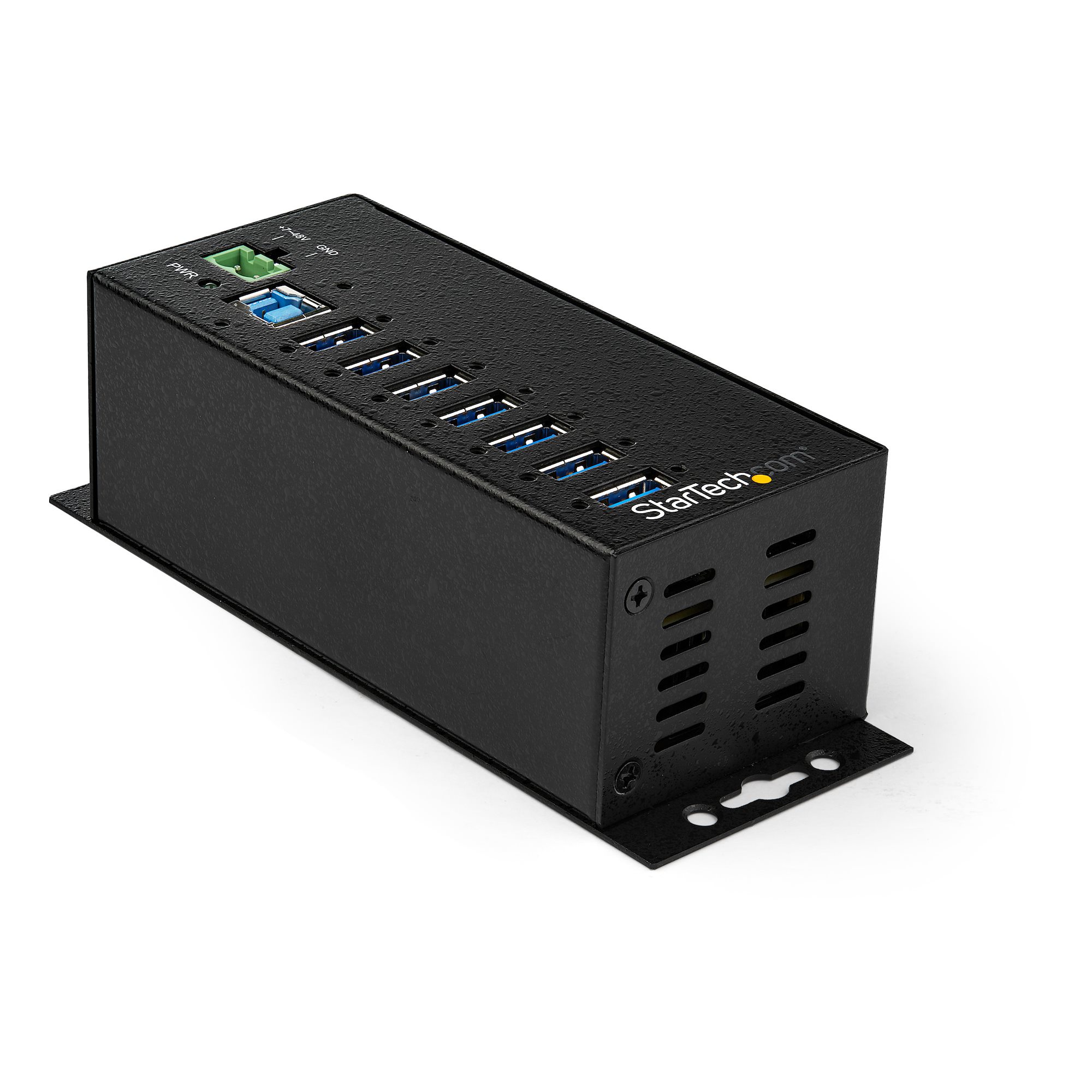

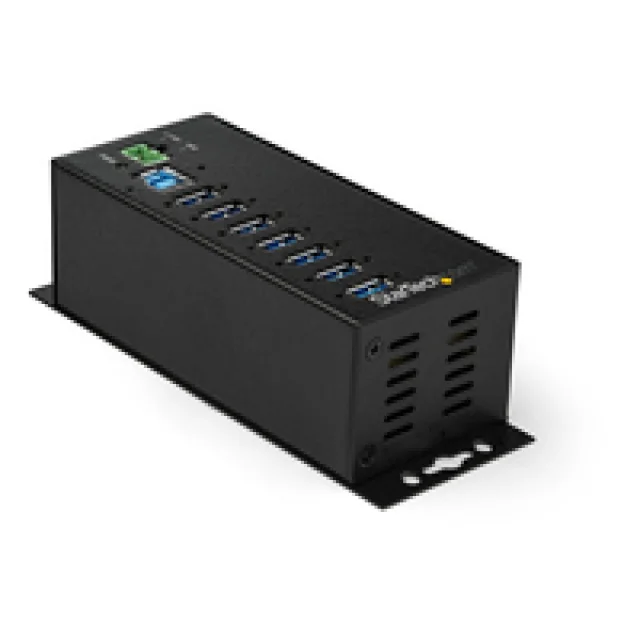

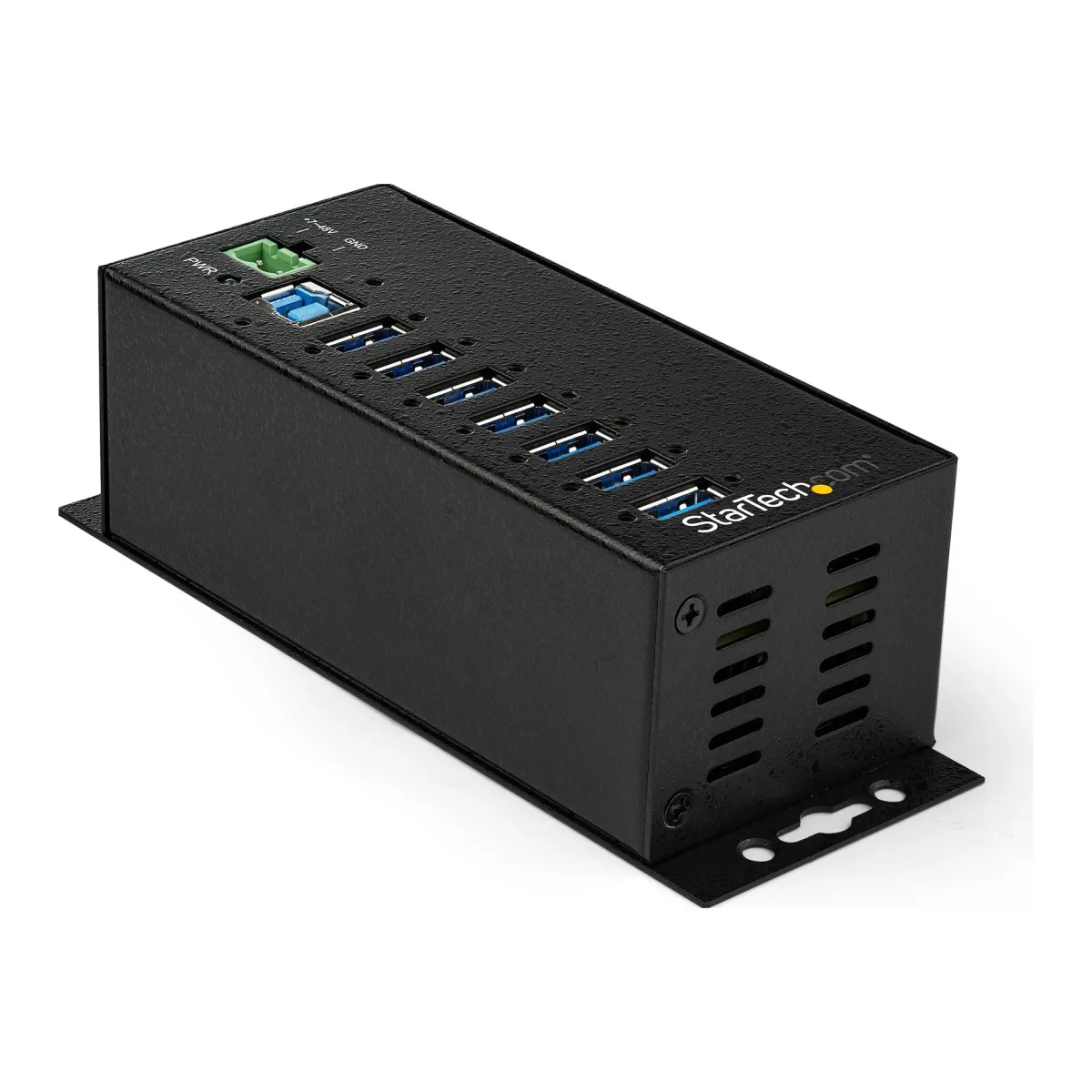

Startech 7 Port USB Hub with Power Adapter, Surge Protection, Metal Industrial USB 3.0 Data Transfer Hub, Din Rail, Wall or Desk Mountable, High Speed USB 3.1/USB 3.2 Gen 1 5Gbps Hub - Windows/macOS/Linux (HB30A7AME) - Hub - 7 x USB 3.2 Gen 1 - DIN rail mountable, wall-mountable - TAA Compliant - for P/N: ITB20D3250

Description

Manufacturer Code: HB30A7AME

Overview

Startech 7 Port USB Hub with Power Adapter, Surge Protection, Metal Industrial USB 3.0 Data Transfer Hub, Din Rail, Wall or Desk Mountable, High Speed USB 3.1/USB 3.2 Gen 1 5Gbps Hub - Windows/macOS/Linux (HB30A7AME) - Hub - 7 x USB 3.2 Gen 1 - DIN rail m is available through DCS Components. It sits within the USB Hubs & Controllers category.

Key product details

• Windows/macOS/Linux (HB30A7AME)
• Hub
• 7 x USB 3.2 Gen 1
• DIN rail m

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030881876

Specifications

Ports & interfaces

Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-B
Hub interfaces	USB 3.2 Gen 1 (3.1 Gen 1) Type-A
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	7
Ports quantity	7
Terminal block port	Yes

Features

Data transfer rate	5000 Mbit/s
Product colour	Black
Surge protection	Yes
LED indicators	Power
Plug and Play	Yes
Certification	RoHS, REACH, CE, FCC, TAA

Network

UASP support	Yes

Power

Power supply type	AC
Power consumption (typical)	65 W
Input voltage	100 - 240 V
Input current	1.4 A
Output voltage	20 V
Output current	3.25 A

Weight & dimensions

Width	55 mm
Depth	145 mm
Height	45 mm
Weight	326 g

Packaging data

Quantity per pack	1 pc(s)
Package width	190 mm
Package depth	294 mm
Package height	70 mm
Package weight	1.3 kg

Packaging content

AC adapter included	Yes
Included power plug types	ANZ, EU, JP, NA, UK
Cables included	USB
Quick installation guide	Yes
DIN rail kit included	Yes

Operational conditions

Operating temperature (T-T)	0 - 70 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Mean time between failures (MTBF)	126106 h

Logistics data

Master (outer) case width	400 mm
Master (outer) case length	520 mm
Master (outer) case height	315 mm
Products per master (outer) case	14 pc(s)
Harmonized System (HS) code	84719000

Other features

Chipset	Genesys Logic - GL3523
