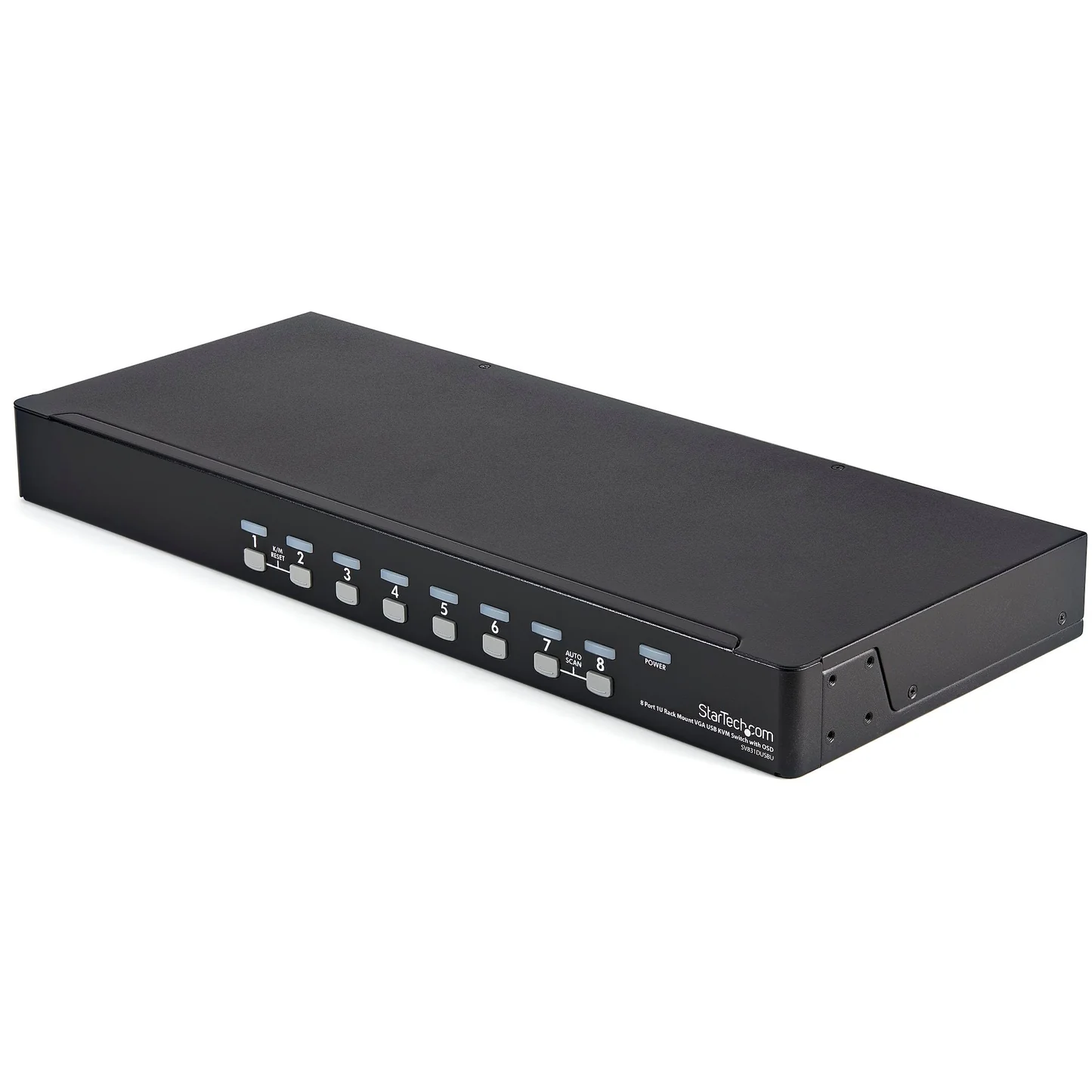

Startech 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK) - KVM switch - 8 x KVM port(s) - 1 local user - rack-mountable - for P/N: RK12OD2, RK3236BKF, RK4236BKB, RK4242BK30, RKCONS1701, RKCONS17HD, RKQMCAB12V2

Description

Manufacturer Code: SV831DUSBUK

Overview

Startech 8 Port 1U Rackmount USB KVM Switch Kit with OSD and Cables - Rack mount KVM - VGA KVM Switch - 8 Port KVM Switch (SV831DUSBUK) - KVM switch - 8 x KVM port(s) - 1 local user - rack-mountable - for P/N: RK12OD2, RK3236BKF, RK4236BKB, RK4242BK30, RK is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• Rack mount KVM
• VGA KVM Switch
• 8 Port KVM Switch (SV831DUSBUK)
• KVM switch
• 8 x KVM port(s)

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030843331

Specifications

Ports & interfaces

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	9
Console ports	USB A, VGA (D-Sub)
Console USB ports quantity	2
USB 2.0 ports quantity	2
USB connector type	USB Type-A
DC-in jack	Yes

Performance

Maximum resolution	1920 x 1440 pixels
Maximum analog resolution	1920 x 1440 pixels
Plug and Play	Yes
Daisy chain	Yes

Design

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Steel
Cascadable	Yes
LED indicators	Power
Hot keys	Yes
Certification	CE, FCC, TAA, REACH

Display

On Screen Display (OSD)	Yes

Power

Input voltage	100 - 240 V
Output voltage	12 V
Output current	1 A
Power consumption (typical)	12 W
External power adapter	Yes
Compatible power plug types	AU, EU, UK, US

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	435 mm
Depth	180 mm
Height	45 mm
Weight	2.2 kg

Packaging data

Package width	262 mm
Package depth	606 mm
Package height	121 mm
Package weight	4.7 kg

Packaging content

Cables included	KVM
Manual	Yes
AC adapter included	Yes
Rack mount kit	Yes

Other features

Audio support	No
IP control	No

Logistics data

Harmonized System (HS) code	85176200
