Manufacturer Code: R8AH202-KVM-SWITCH
Overview

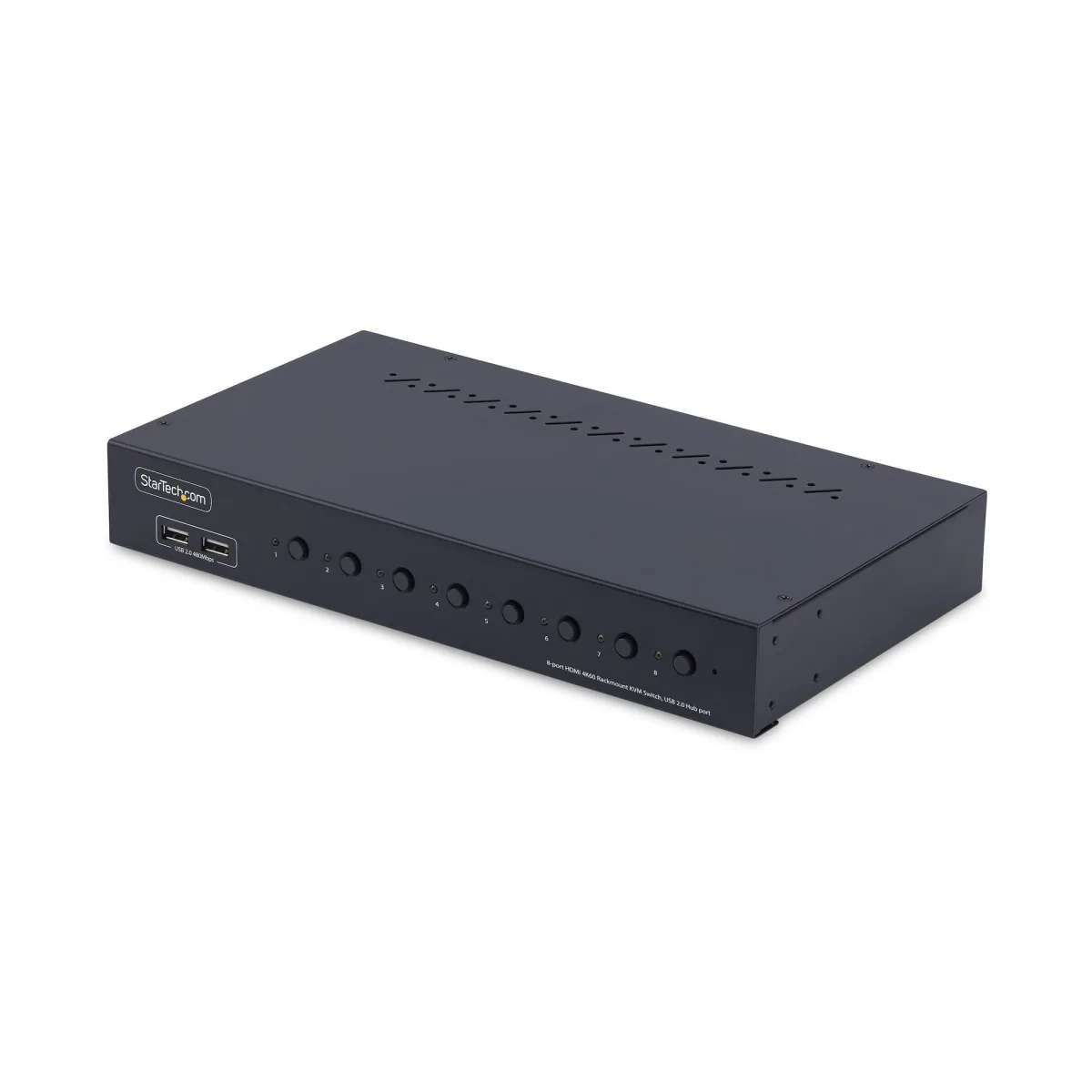

Startech 8-Port HDMI KVM Switch w/1U Rack Mount Kit, 4K 60Hz - KVM switch - 8 x KVM port(s) - 1 local user - desktop - TAA Compliant is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030907231
| Number of computers controlled | 8 |
|---|---|
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 8 |
| HDMI version | 2.0 |
| USB 2.0 Type-B ports quantity | 8 |
| Console ports | 3.5mm headphone, HDMI, USB A |
| Console USB ports quantity | 4 |
| Headphone outputs | 1 |
| Number of microphone inputs | 8 |
| DC-in jack | Yes |
| HD type | 4K Ultra HD |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Data transfer rate (max) | 0.48 Gbit/s |
| Scan interval | 10,20,30,40,50,60,70,80,90,100 s |
| Daisy chain | No |
| Audio channels | 2.0 |
| Rack mounting | Yes |
|---|---|
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Zinc |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 73905 h |
| Built-in display | No |
|---|---|
| On Screen Display (OSD) | No |
| Power source | DC |
|---|---|
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 12 V |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Compliance certificates | Federal Communications Commission (FCC), Trade Agreements Act (TAA) |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 164 mm |
|---|---|
| Depth | 300 mm |
| Height | 44 mm |
| Weight | 1.5 kg |
| Package width | 435 mm |
|---|---|
| Package depth | 288 mm |
| Package height | 70 mm |
| Package weight | 2.3 kg |
| Quick installation guide | Yes |
|---|---|
| Rack mount kit | Yes |
| IP control | No |
|---|
| Master (outer) case width | 585 mm |
|---|---|
| Master (outer) case length | 545 mm |
| Master (outer) case height | 270 mm |
| Products per master (outer) case | 5 pc(s) |
