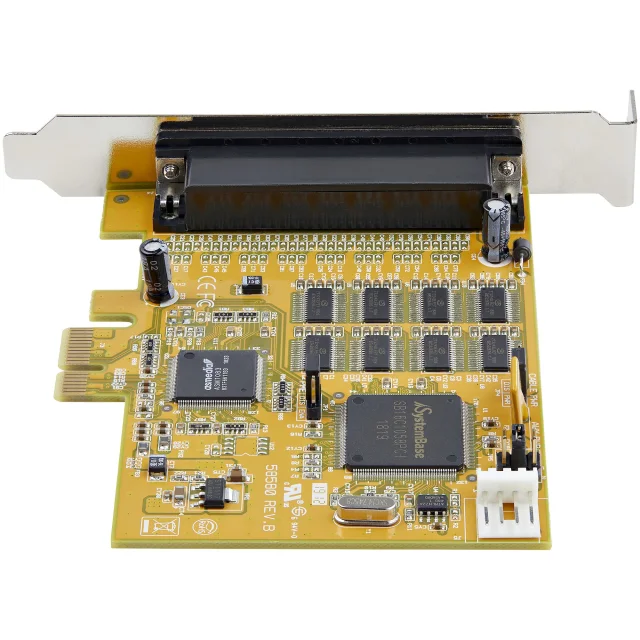

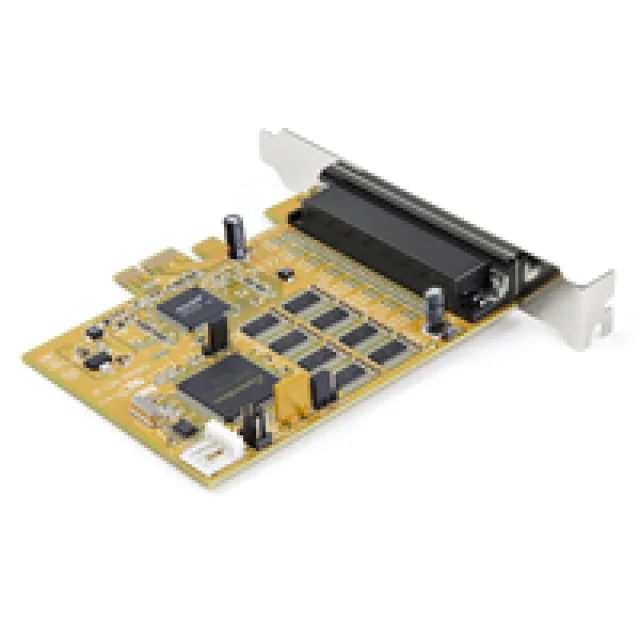

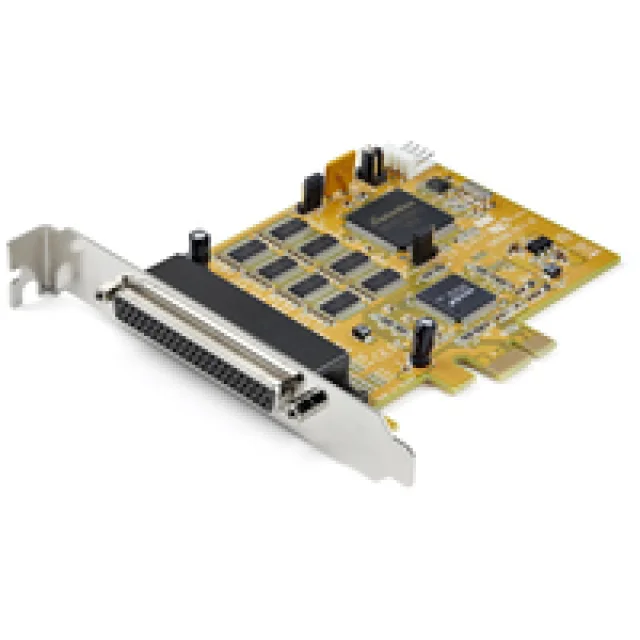

Startech 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux - Up to 921.6 Kbps Baud - Serial adapter - PCIe - RS-232 x 8 - yellow - TAA Compliant

Description

Manufacturer Code: PEX8S1050

Overview

Startech 8-Port PCI Express RS232 Serial Adapter Card, PCIe RS232 Serial Card, 16C1050 UART, Multiport Serial DB9 Controller/Expansion Card, 15kV ESD Protection, Windows & Linux - Up to 921.6 Kbps Baud - Serial adapter - PCIe - RS-232 x 8 - yellow - TAA C is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• Up to 921.6 Kbps Baud
• Serial adapter
• PCIe
• RS-232 x 8
• yellow

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030888295

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Serial
Serial ports quantity	8
Serial interface type	RS-232

Design

Internal	Yes
Product colour	Yellow
Maximum cable length	0.5 m
Mean time between failures (MTBF)	160013 h

Features

Chipset	ASMedia - ASM1083, System Base - SB16C1058PCI
Baud rate	921.6 Kbit/s
FIFO (First In, First Out)	256 B
Data bits	5, 6, 7, 8
Stop bits	1, 1.5, 2
Parity bit	Even, No, Odd
Flow Control type	RTS/CTS, XON/XOFF

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-40 - 75 °C
Operating relative humidity (H-H)	5 - 95%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	16 mm
Depth	105 mm
Height	120 mm
Weight	74 g

Packaging data

Cables included	Serial
Quick installation guide	Yes
Package width	190 mm
Package depth	290 mm
Package height	65 mm
Package weight	672 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	14 pc(s)
Master (outer) case width	400 mm
Master (outer) case length	510 mm
Master (outer) case height	315 mm

Other features

Compliance industry standards	16C1050 UART
