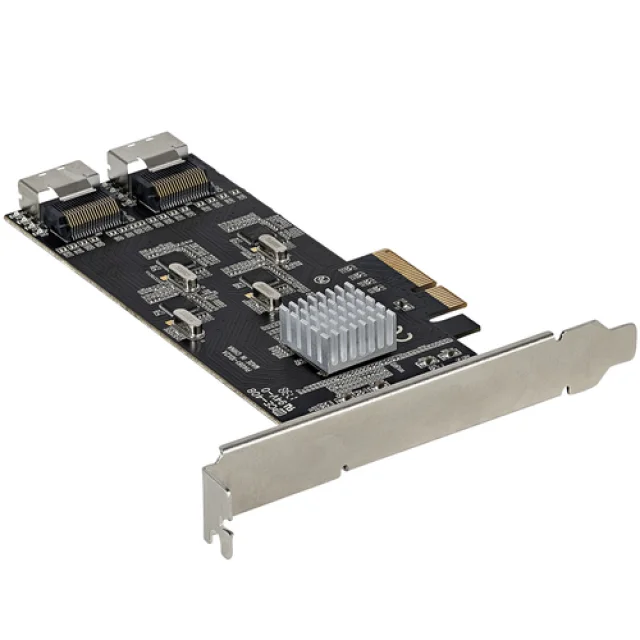

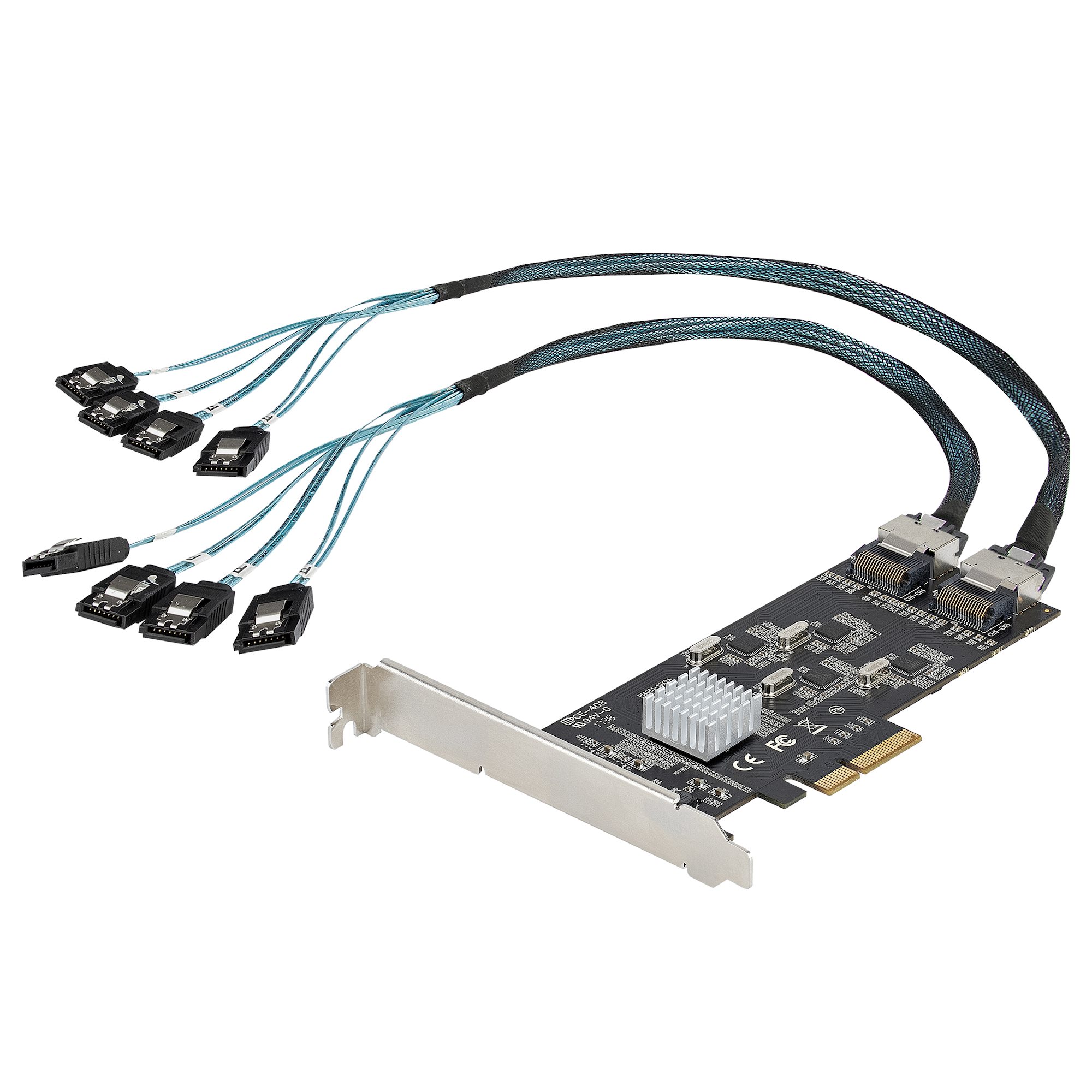

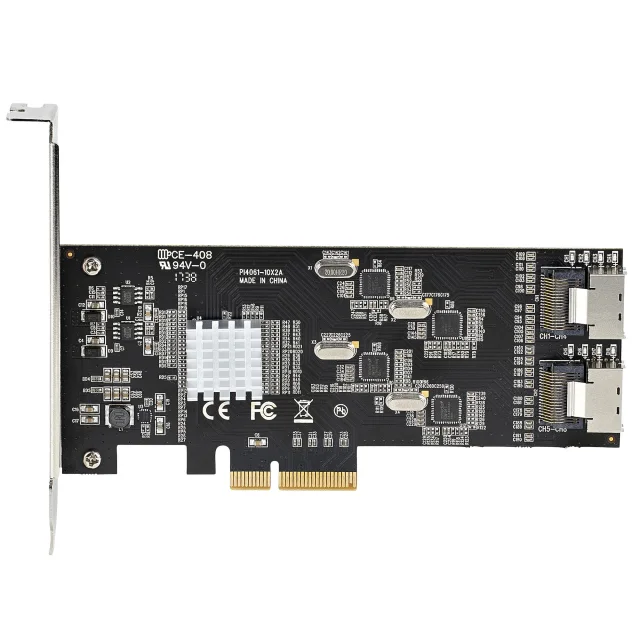

Startech 8 Port SATA PCIe Card, PCI Express 6Gbps SATA Expansion Card with 4 Host Controllers, SATA PCIe Controller Card, PCI-e x4 Gen 2 to SATA III Adapter Card, Drive Cables Incl. - Windows/macOS/Linux (8P6G-PCIE-SATA-CARD) - Storage controller - SATA 6Gb/s / SAS 6Gb/s - low profile - PCIe 2.0 x4 - black

Description

Manufacturer Code: 8P6G-PCIE-SATA-CARD

Overview

Startech 8 Port SATA PCIe Card, PCI Express 6Gbps SATA Expansion Card with 4 Host Controllers, SATA PCIe Controller Card, PCI-e x4 Gen 2 to SATA III Adapter Card, Drive Cables Incl. - Windows/macOS/Linux (8P6G-PCIE-SATA-CARD) - Storage controller - SATA 6 is available through DCS Components. It sits within the Storage Enclosures & RAID category.

Key product details

• Windows/macOS/Linux (8P6G-PCIE-SATA-CARD)
• Storage controller
• SATA 6

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030893275

Specifications

Ports & interfaces

Host interface	PCIe
Output interface	Mini-SAS
Expansion card standard	PCI 2.0
SATA revision	3.0
External mini-SAS ports	2
Port multiplier	Yes

Design

Internal	Yes
Product colour	Black

Features

Chipset	Pericom - PI7C9X2G608GP, ASMedia - ASM1061
Data transfer rate (max)	6 Gbit/s
S.M.A.R.T. support	Yes
TRIM support	Yes

Operational conditions

Operating temperature (T-T)	5 - 50 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 80%

System requirements

Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019

Technical details

Compliance certificates	RoHS

Weight & dimensions

Width	68.6 mm
Depth	150 mm
Height	14.6 mm
Weight	75 g

Packaging data

Cables included	SATA
Mounting brackets included	Yes
Quick installation guide	Yes
Package width	230 mm
Package depth	155 mm
Package height	55 mm
Package weight	81 g

Logistics data

Harmonized System (HS) code	84733020
Products per master (outer) case	40 pc(s)
Master (outer) case width	610 mm
Master (outer) case length	510 mm
Master (outer) case height	380 mm
