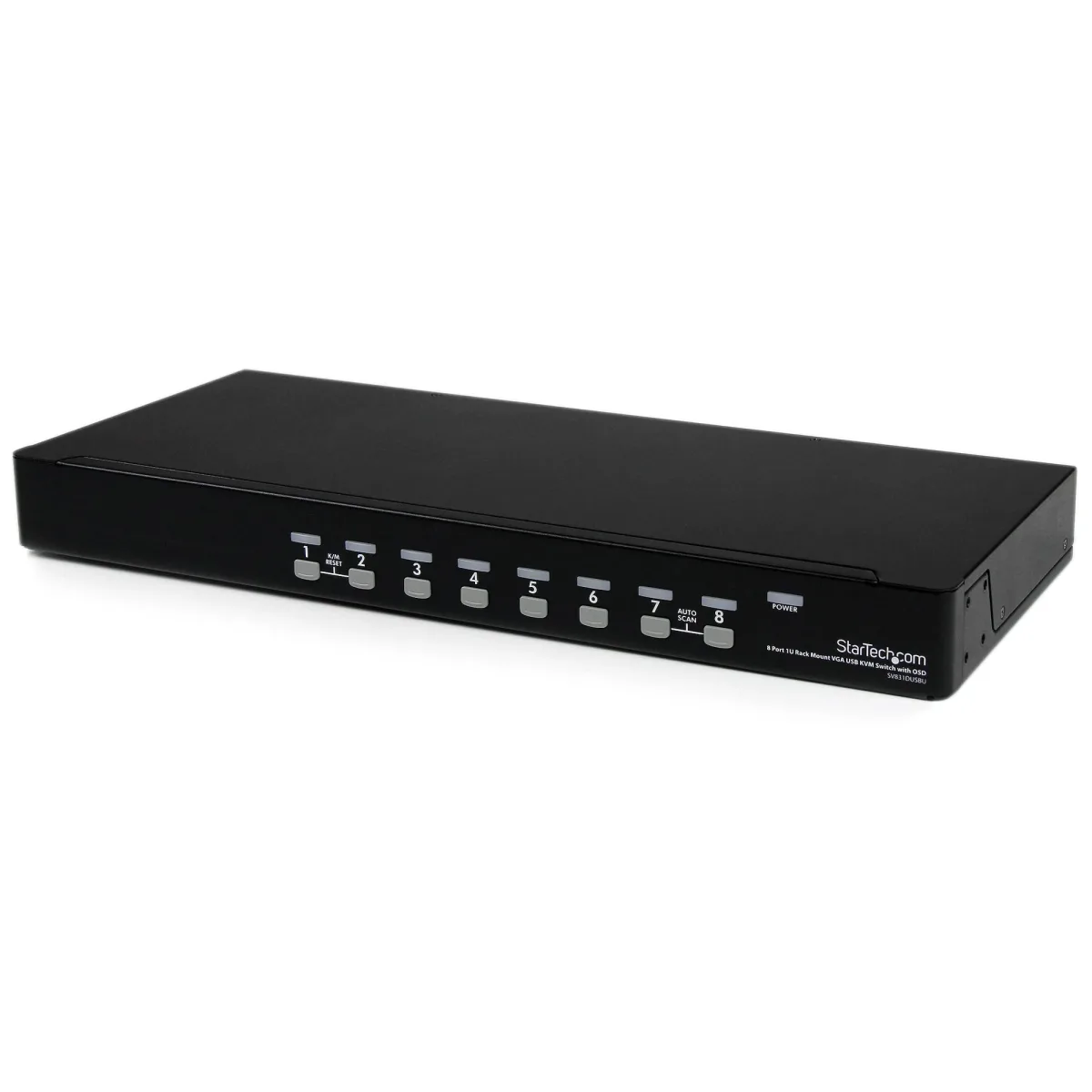

Startech 8-Port USB KVM Swith with OSD - TAA Compliant - 1U Rack Mountable VGA KVM Switch (SV831DUSBU) - KVM switch - 8 x KVM port(s) - 1 local user - desktop - for P/N: RK3236BKF, RKCONS1701, RKCONS17HD, RKCONS1901, RKCONS1908K, RKCONS1916K, RKQMCAB12V2

Description

Manufacturer Code: SV831DUSBU

Overview

Startech 8-Port USB KVM Swith with OSD - TAA Compliant - 1U Rack Mountable VGA KVM Switch (SV831DUSBU) - KVM switch - 8 x KVM port(s) - 1 local user - desktop - for P/N: RK3236BKF, RKCONS1701, RKCONS17HD, RKCONS1901, RKCONS1908K, RKCONS1916K, RKQMCAB12V2 is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• TAA Compliant
• 1U Rack Mountable VGA KVM Switch (SV831DUSBU)
• KVM switch
• 8 x KVM port(s)
• 1 local user

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030837255

Specifications

Ports & interfaces

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
VGA (D-Sub) ports quantity	9
Console ports	USB A, VGA (D-Sub)
Console USB ports quantity	2
Audio connections	No
DC-in jack	Yes

Performance

Maximum resolution	1920 x 1440 pixels
Plug and Play	Yes
Daisy chain	Yes

Design

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Steel
LED indicators	Yes
Mean time between failures (MTBF)	150000 h
Certification	CE, FCC, TAA, REACH

Display

Built-in display	No
On Screen Display (OSD)	Yes

Power

Input voltage	100 - 240 V
Input current	0.8 A
Output voltage	12 V
Output current	1.5 A
Power plug type	Type M
Compatible power plug types	EU, UK, US

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	540 mm
Depth	180 mm
Height	45 mm
Weight	2.9 kg

Packaging data

Package width	89 mm
Package depth	573 mm
Package height	268 mm
Package weight	3.3 kg

Packaging content

Manual	Yes
AC adapter included	Yes
Rubber feet	Yes

Other features

Connectivity technology	Wired
Dimensions (WxDxH)	540 x 180 x 45 mm
Ports quantity	8
Power requirements	110 - 240 AC
Audio support	No
IP control	No

Logistics data

Harmonized System (HS) code	85176200
