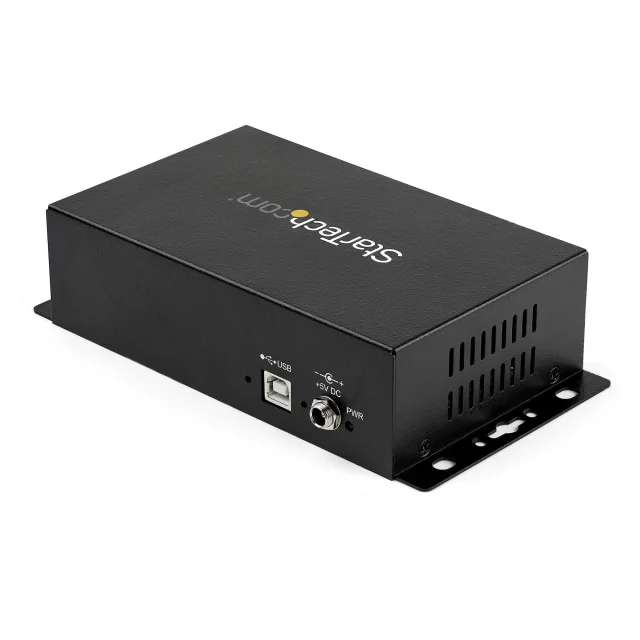

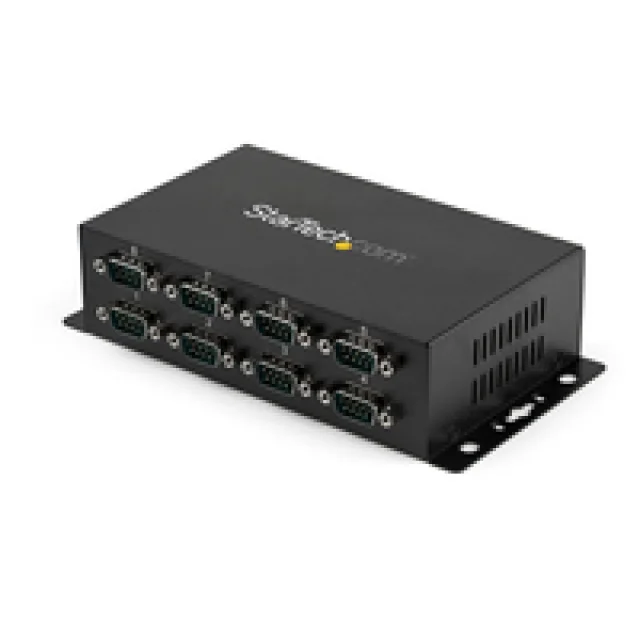

Startech 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - Serial adapter - USB 2.0 - RS-232 x 8 - black

Description

Manufacturer Code: ICUSB2328I

Overview

Startech 8 Port USB to Serial RS232 Adapter - Wall Mount - Din Rail - COM Port Retention - FTDI USB to DB9 RS232 Hub (ICUSB2328I) - Serial adapter - USB 2.0 - RS-232 x 8 - black is available through DCS Components. It sits within the Cables & Adapters category.

Key product details

• Wall Mount
• Din Rail
• COM Port Retention
• FTDI USB to DB9 RS232 Hub (ICUSB2328I)
• Serial adapter

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030848978

Specifications

Ports & interfaces

Host interface	USB 2.0 Type-B
Hub interfaces	Serial
Ports quantity	8

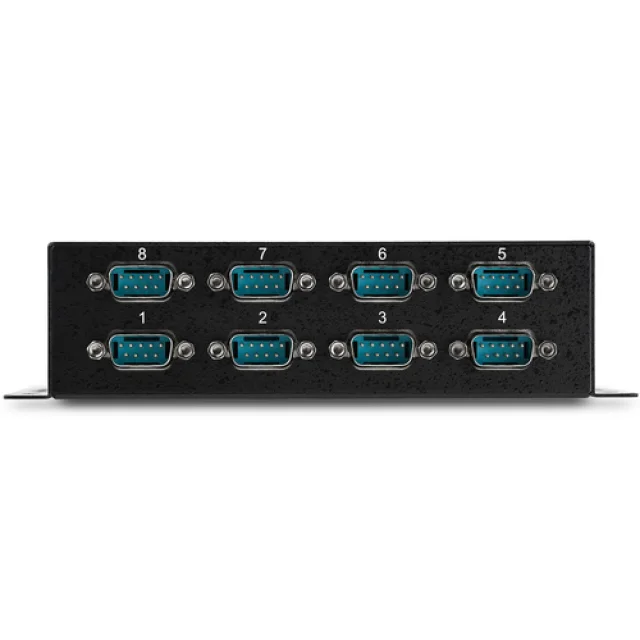

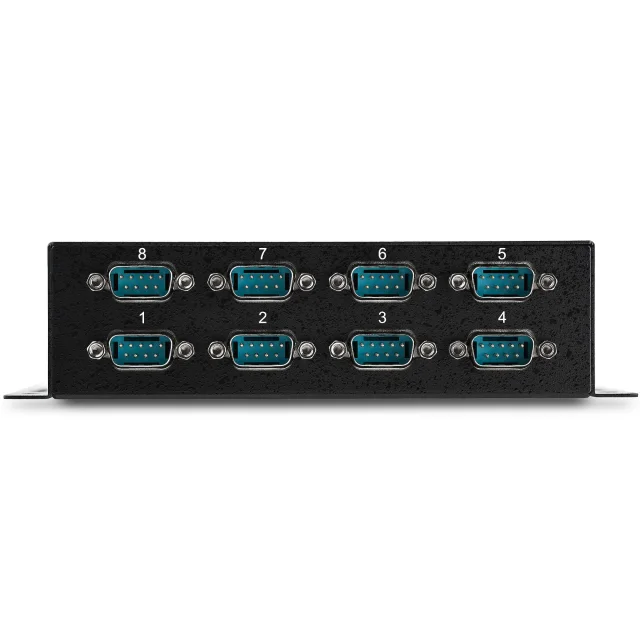

RS-232 ports	8
Card reader integrated	No

Features

Product colour	Black
Housing material	Steel
LED indicators	Activity

Power

Input voltage	5 V
Input current	0.25 A
Power plug type	Type M
USB powered	Yes

System requirements

Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 x64, Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows 98SE, Windows CE, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
Other operating systems supported	Windows XP Embedded

Weight & dimensions

Width	100 mm
Depth	180 mm
Height	43.2 mm
Weight	544 g

Packaging data

Package width	296 mm
Package depth	191 mm
Package height	71 mm
Package weight	862 g

Packaging content

Cables included	USB
Manual	Yes
DIN rail kit included	Yes
Drivers included	Yes

Operational conditions

Operating temperature (T-T)	0 - 55 °C
Storage temperature (T-T)	-20 - 85 °C
Operating relative humidity (H-H)	5 - 95%

Performance

Data bits	7, 8
Stop bits	1, 2
Parity bit	Even, Mark, No, Odd, Space
FIFO (First In, First Out)	4048 B
Baud rate	921.6 Kbit/s
Mean time between failures (MTBF)	146300 h

Sustainability

Sustainability compliance	Yes

Logistics data

Master (outer) case width	405 mm
Master (outer) case length	510 mm
Master (outer) case height	320 mm
Products per master (outer) case	14 pc(s)
Harmonized System (HS) code	84719000

Technical details

Compliance certificates	CE, RoHS

Other features

Chipset	FTDI - FT232RL
