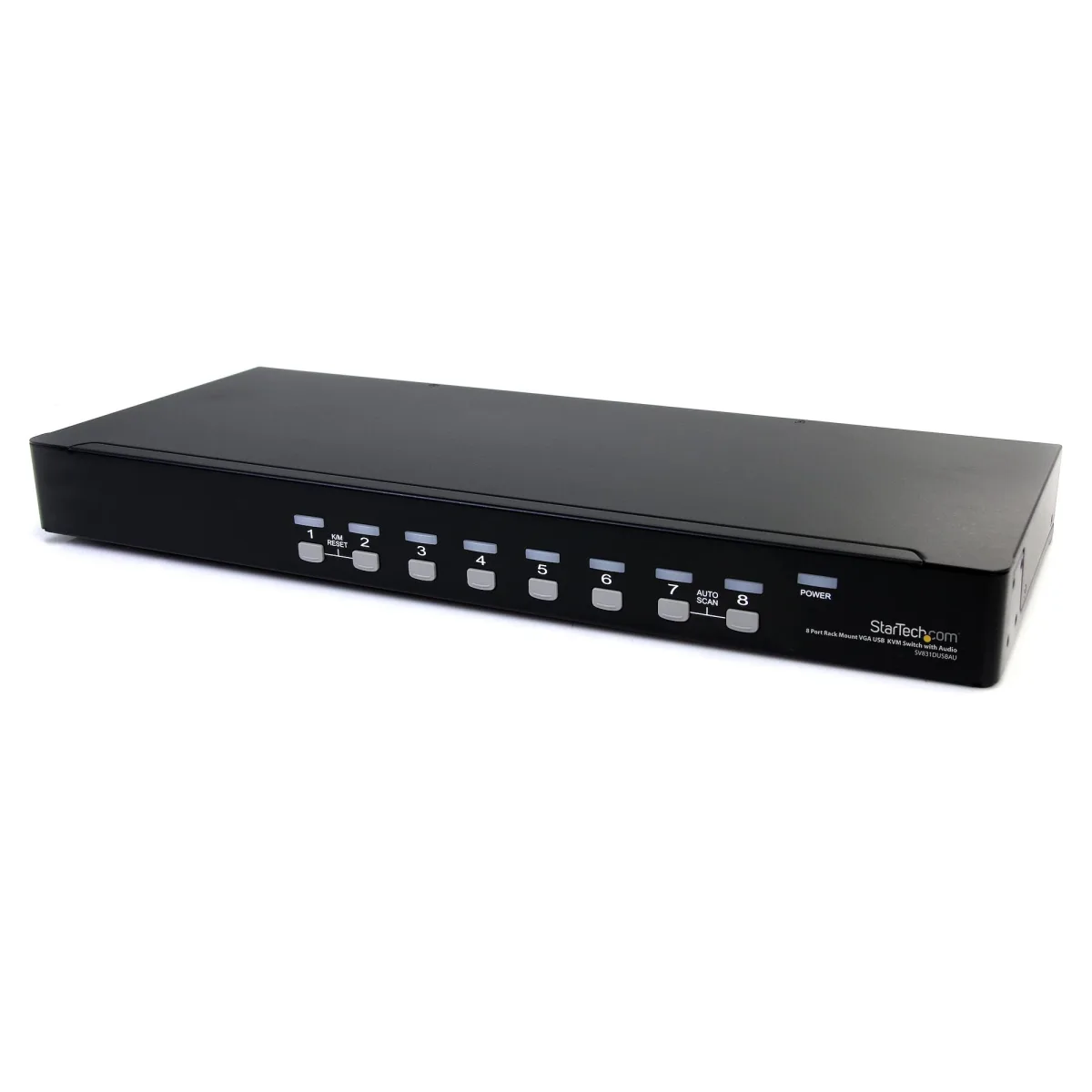

Startech 8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 @60hz - KVM Video Switch (SV831DUSBAU) - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop - for P/N: RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RKCONS1701, RKCONS17HD, RKQMCAB12V2

Description

Manufacturer Code: SV831DUSBAU

Overview

Startech 8 Port VGA KVM Switch - 1U Rack Mount - USB VGA KVM Switch with Audio - 1920 x 1440 @60hz - KVM Video Switch (SV831DUSBAU) - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop - for P/N: RK3236BKF, RK4236BKB, RK4242BK24, RK4242BK30, RK is available through DCS Components. It sits within the KVM Switches, Cables & Accessories category.

Key product details

• 1U Rack Mount
• USB VGA KVM Switch with Audio
• 1920 x 1440 @60hz
• KVM Video Switch (SV831DUSBAU)
• KVM / audio switch

Procurement and setup support

Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.

EAN: 0065030837248

Specifications

Ports & interfaces

Number of computers controlled	8
Keyboard port type	USB
Mouse port type	USB
Video port type	VGA
Console ports	3.5mm headphone, 3.5mm mic, USB A, VGA (D-Sub)
Console USB ports quantity	2
USB 2.0 ports quantity	2
USB connector type	USB Type-A
Headphone outputs	8
Number of microphone inputs	8
DC-in jack	Yes

Performance

Maximum resolution	1920 x 1440 pixels
Maximum analog resolution	1920 x 1440 pixels
Plug and Play	Yes
Daisy chain	Yes
Number of users	1 user(s)

Design

Rack mounting	Yes
Rack capacity	1U
Product colour	Black
Housing material	Steel
Cascadable	Yes
LED indicators	Yes
Certification	CE, FCC, UL

Display

On Screen Display (OSD)	Yes

Power

Input voltage	110-240 V
Input current	1.8 A
Output voltage	12 V
Output current	4 A
Power consumption (typical)	48 W
Power plug type	Type M

Sustainability

Compliance certificates	RoHS

Operational conditions

Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	0 - 80%

Weight & dimensions

Width	540 mm
Depth	180 mm
Height	45 mm
Weight	2.6 kg

Packaging data

Package width	123 mm
Package depth	591 mm
Package height	264 mm
Package weight	4.7 kg

Packaging content

Cables included	AC
Manual	Yes
AC adapter included	Yes
Rubber feet	Yes

Other features

Audio support	Yes
IP control	No

Logistics data

Harmonized System (HS) code	85176200
