Manufacturer Code: 1M-DP-HDMI-4K60-HDR
Overview

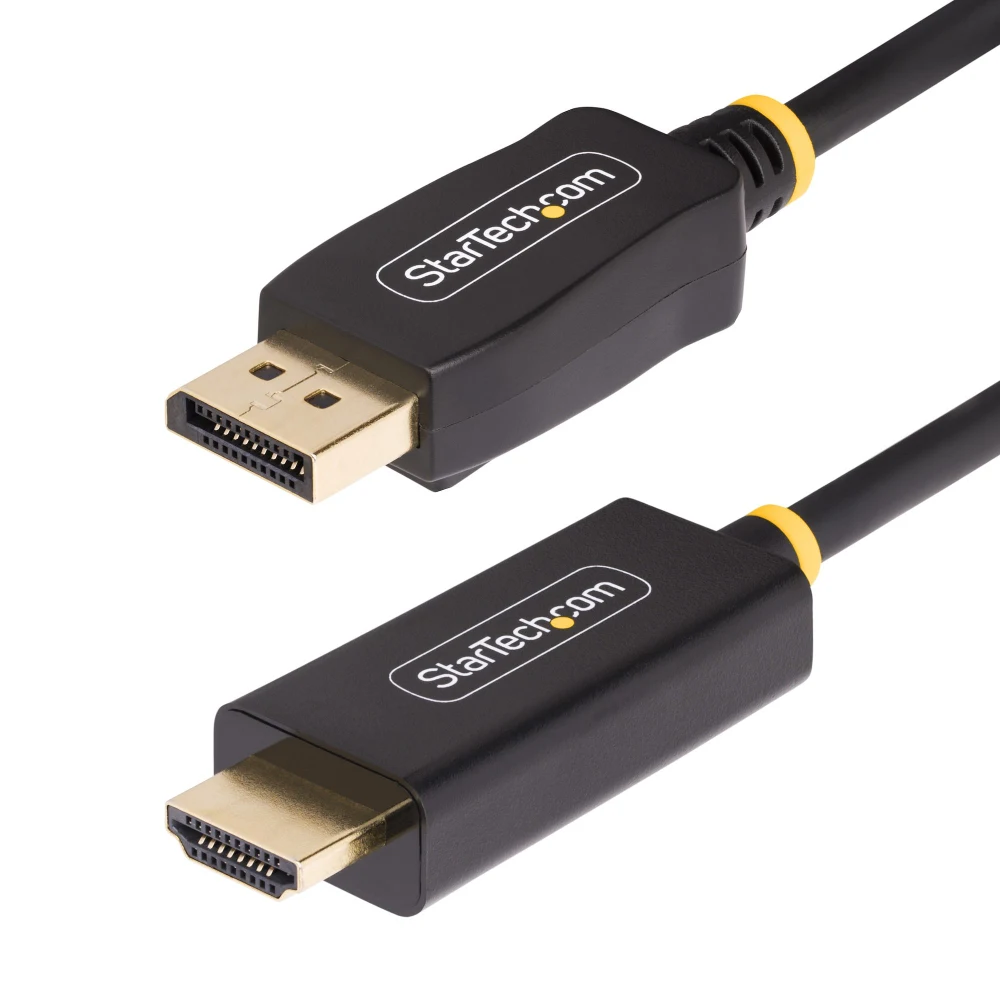

Startech - Adapter cable - DisplayPort male to HDMI male - 1 m - active, 4K60Hz support, HDR support is available through DCS Components. It sits within the General Catalogue category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030926584
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 1 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 2.0b |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| DisplayPort version | 1.4 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA), 2560 x 1440, 3200 x 1800, 3860 x 2160, 4096 x 2160 |
| Bandwidth | 18000 MB/s |
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Chipset | Synaptics - VMR7100 |
| Jacket material | Polyvinyl chloride (PVC) |
| Colour depth | 8 bit |
| Colour sampling | 4:4:4 |
| Supported audio channels | 7.1 |
| Converter type | Active video converter |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Compliance certificates | RoHS |
|---|
| Cable diameter | 5.5 mm |
|---|
| Package width | 128 mm |
|---|---|
| Package depth | 220 mm |
| Package height | 18 mm |
| Package weight | 60 g |
| Quantity per pack | 1 pc(s) |
|---|
| Master (outer) case width | 400 mm |
|---|---|
| Master (outer) case length | 300 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 150 pc(s) |
