Manufacturer Code: 15F-DP-HDMI-4K60-GR
Overview

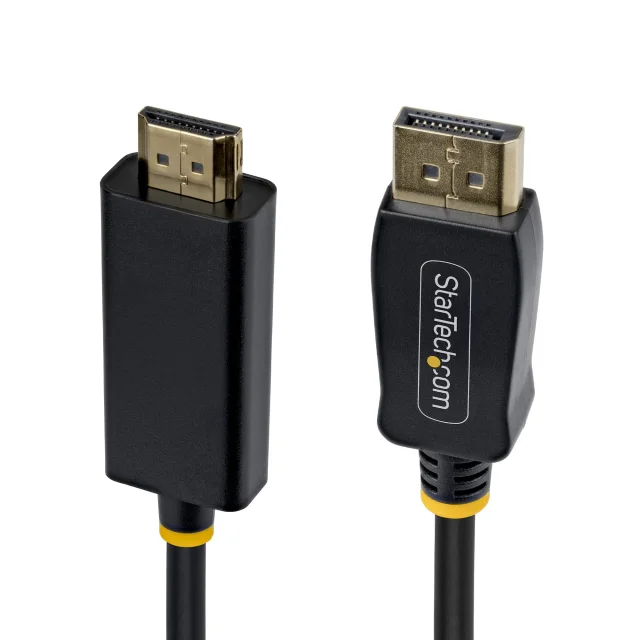

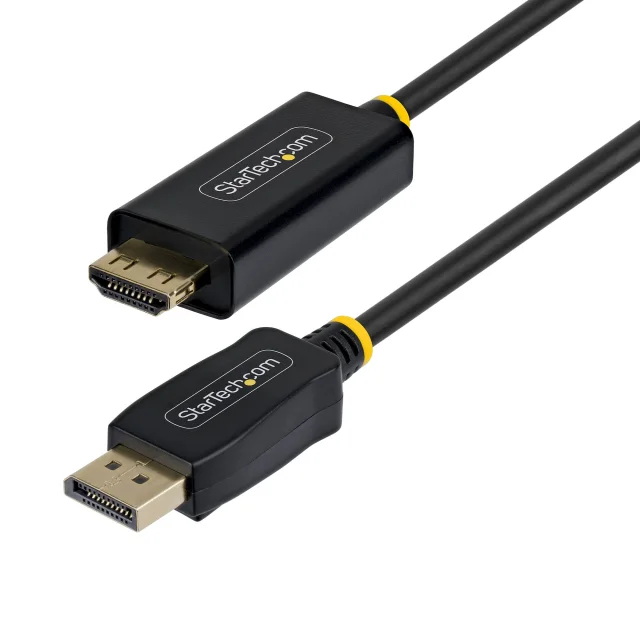

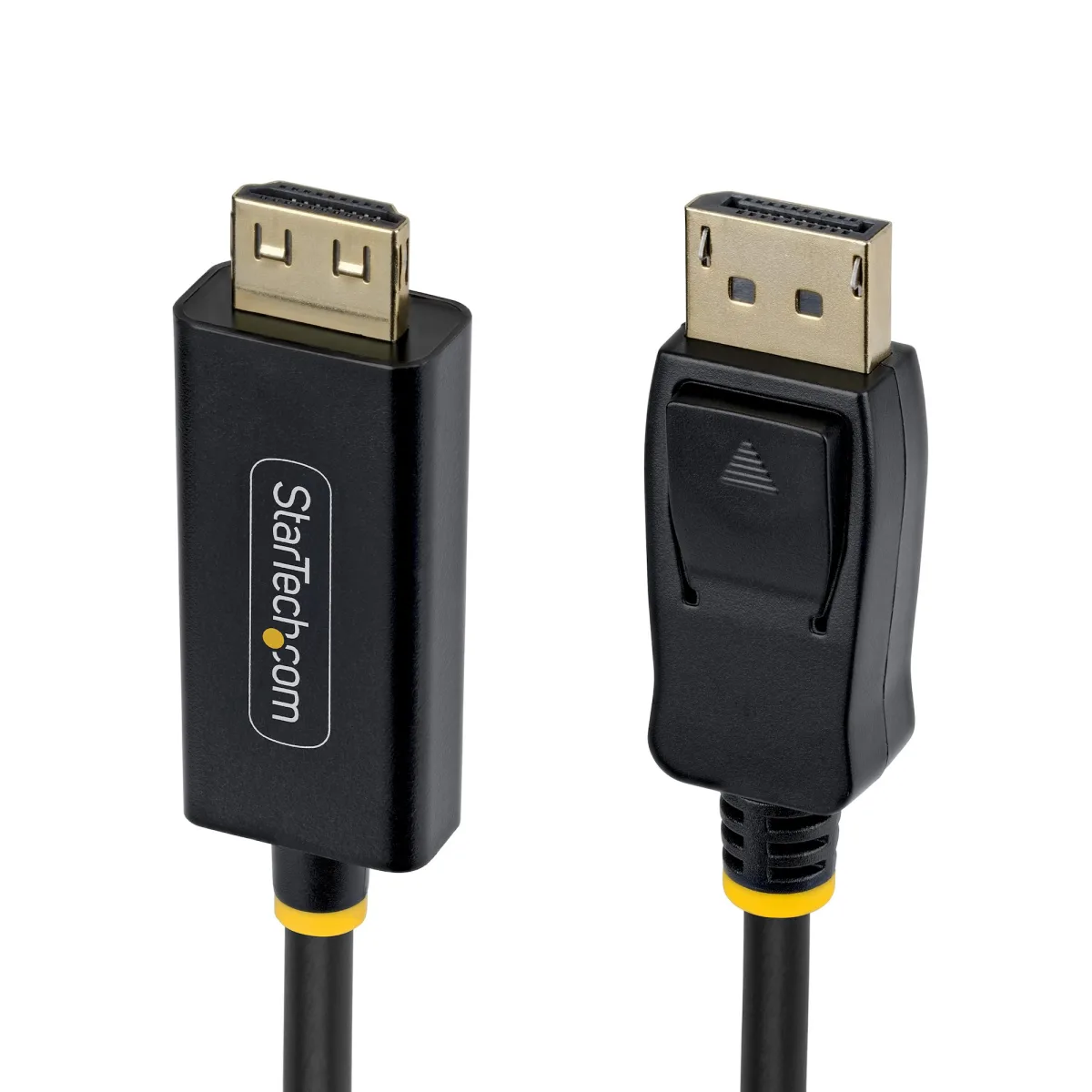

Startech - Adapter cable - DisplayPort male to HDMI male - 4.5 m - black - 4K60Hz support, Unidirectional, active is available through DCS Components. It sits within the General Catalogue category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030917445
| Connector 1 form factor | Straight |
|---|---|
| Connector 2 form factor | Straight |
| Connector contacts plating | Gold |
| Cable length | 4.5 m |
| Connector 1 | DisplayPort |
| Connector 2 | HDMI Type A (Standard) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| HDMI version | 2.0b |
| HDCP | Yes |
| HDCP version | 1.4/2.3 |
| DisplayPort version | 1.4 |
| High Dynamic Range (HDR) supported | Yes |
| Maximum resolution | 4096 x 2160 pixels |
| Supported graphics resolutions | 4096 x 2160, 3840 x 2160, 3200 x 1800, 3072 x 1728, 2560 x 1440, 1920 x 1200 (WUXGA), 2048 x 1536 (QXGA) |
| Bandwidth | 18000 MB/s |
| Maximum refresh rate | 120 Hz |
| Product colour | Black |
| Chipset | Synaptics - VMR7100 |
| Jacket material | Polyvinyl chloride (PVC) |
| Colour depth | 10 bit |
| Colour sampling | 4:4:4 |
| Supported audio channels | 7.1 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Compliance certificates | RoHS |
|---|
| Cable diameter | 5.5 mm |
|---|
| Package width | 190 mm |
|---|---|
| Package depth | 190 mm |
| Package height | 40 mm |
| Package weight | 269 g |
| Master (outer) case width | 450 mm |
|---|---|
| Master (outer) case length | 405 mm |
| Master (outer) case height | 235 mm |
| Products per master (outer) case | 20 pc(s) |
