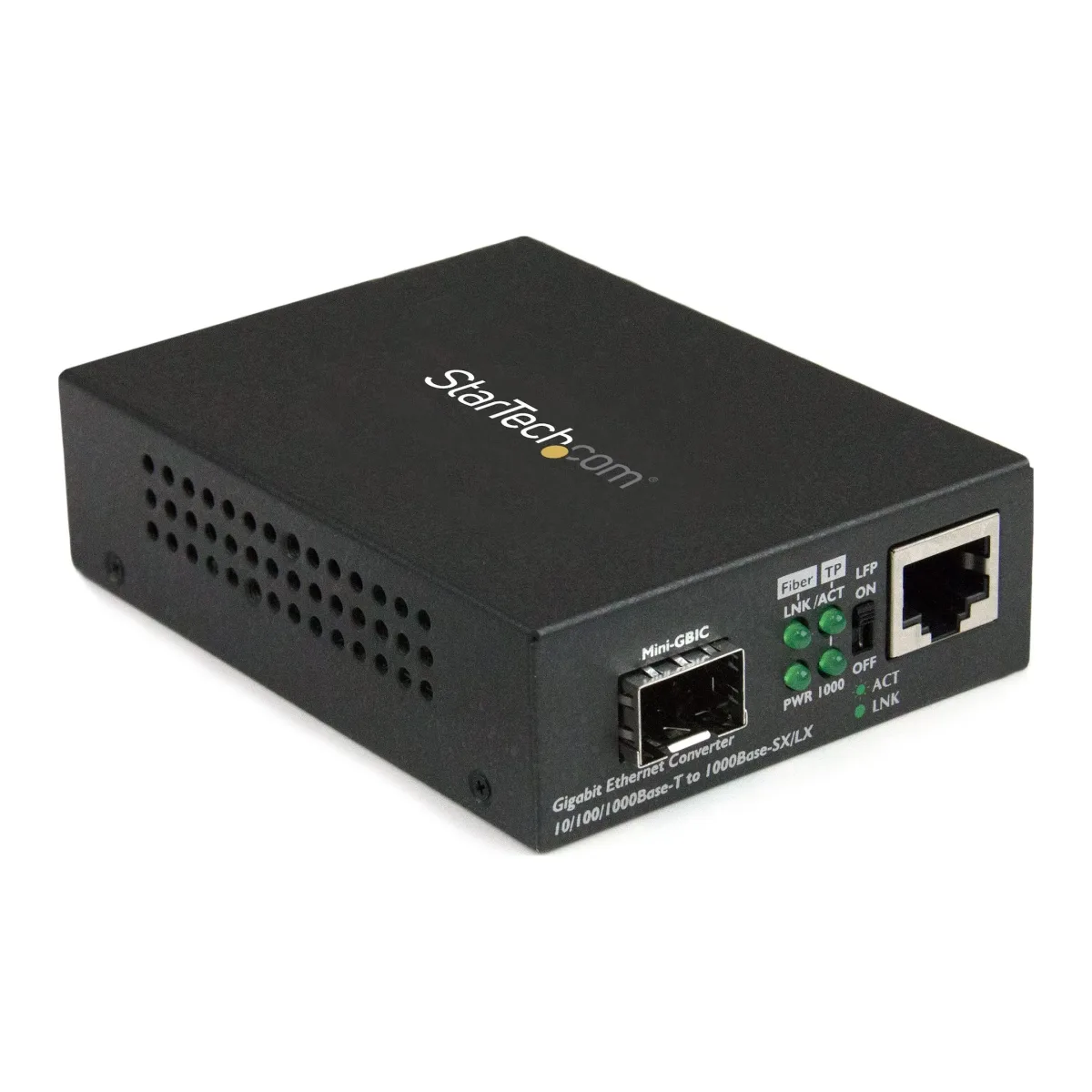

Startech Multimode / Single Mode Fiber Media Converter - Open SFP Slot - 10/100/1000Mbps RJ45 Port - LFP Supported - IEEE 802.1q Tag VLAN - (MCM1110SFP)

Description

StarTech.com Gigabit Ethernet Fiber Media Converter with Open SFP Slot - Supports 10/100/1000 Networks - Convert and extend different networks over a Gigabit fiber cable connection using the SFP of your choice - Gigabit Ethernet fiber media converter with open SFP slot - Supports 10/100/1000 Mbps Ethernet networks - Gigabit media converter for cost-effective network extension - Copper ethernet to fiber media converter with auto MDIX - Compatible with virtually any MSA-compliant transceiver

Overview

Startech COPPER ETHERNET TO FIBER MEDIA is listed under manufacturer code MCM1110SFP. It sits within the Media Converters category. DCS Components can help source this item as part of a quote-led procurement request.

Key product details

• Manufacturer code: MCM1110SFP
• Category: Media Converters
• EAN: 0065030861472

Procurement and setup support

DCS can help with procurement, compatibility checks, configuration planning, deployment support and long-term managed IT lifecycle support.

Specifications

Network

Maximum data transfer rate	1000 Mbit/s
Converter input interface	1000Base-T, 100Base-TX, 10Base-T
Converter output interface	1000Base-LX, 1000Base-SX
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Jumbo frames support	Yes
Auto MDI/MDI-X	Yes
Duplex system	Full

Performance

Wavelength-division multiplexing (WDM)	Yes
Fiber mode structure	Multi-mode, Single-mode
Mean time between failures (MTBF)	50000 h

Features

Internal	No
LED indicators	Activity, Link, Power
Product colour	Black
Housing material	Steel

Ports & interfaces

Connectivity technology	Wired
Ethernet LAN (RJ-45) ports	1
Fiber ports quantity	1
Fiber optic connector	SFP
DC-in jack	Yes

Power

Input voltage	100 - 240 V
Input current	1 A
Output voltage	5 V
Output current	2 A
Power consumption (typical)	5 W
Power over Ethernet (PoE)	No
External power adapter	Yes
Power plug type	Type N

Weight & dimensions

Width	70 mm
Depth	95 mm
Height	26 mm
Weight	185 g

Operational conditions

Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-10 - 70 °C
Operating relative humidity (H-H)	5 - 95%

Packaging content

Manual	Yes

Packaging data

Package width	284 mm
Package depth	139 mm
Package height	68 mm
Package weight	544 g

Certificates

Compliance certificates	RoHS
Certification	CE, FCC

Logistics data

Harmonized System (HS) code	85176990
