Manufacturer Code: ARMQUAD
Overview

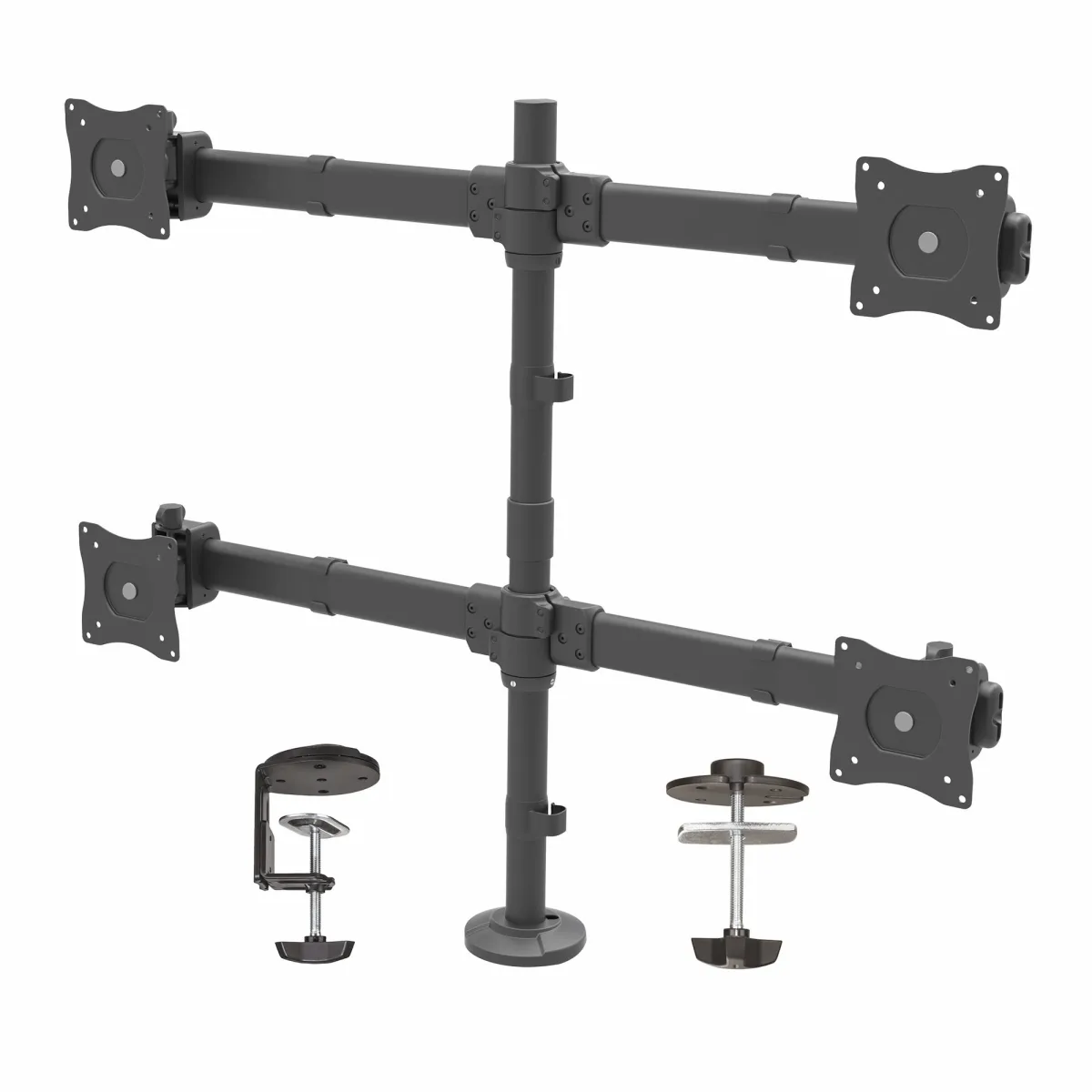

Startech Desk Mount Quad Monitor Arm, Ergonomic VESA 4 Monitor Mount 2x2 up to 27", Articulating & Height Adjustable Pole Mount, Tilt/Swivel/Rotate LCD/LED Screen, Clamp/Grommet - Heavy-duty VESA Mount (ARMQUAD) - Mounting kit - adjustable arm - for 4 mon is available through DCS Components. It sits within the Display Mounting Kits category.
Key product details
Procurement and setup support
Available for quote while live availability remains in stock. DCS can help with procurement, compatibility checks, configuration planning, installation support and long-term managed IT lifecycle support.
EAN: 0065030867795
| Maximum weight capacity | 32 kg |
|---|---|
| Minimum screen size | 33 cm (13") |
| Maximum screen size | 68.6 cm (27") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Tilt angle range | -30 - 30° |
|---|---|
| Swivel angle range | -30 - 30° |
| Angle of rotation | 360° |
| Cable management | Yes |
| Rubber feet | Yes |
| Housing material | Steel |
|---|---|
| Product colour | Black |
| Width | 115 mm |
|---|---|
| Depth | 835 mm |
| Height | 828 mm |
| Weight | 7.6 kg |
| Package width | 479 mm |
|---|---|
| Package depth | 382 mm |
| Package height | 127 mm |
| Package weight | 9.2 kg |
| Wrench included | Yes |
|---|---|
| Wrench type | Hexagonal wrench |
| Clamp included | Yes |
| Number of cable clips | 4 |
| Number of rubber pads included | 5 pc(s) |
| Number of end caps included | 4 pc(s) |
| Screws included | Yes |
| Number of screws | 36 |
| Number of washers included | 16 |
| Grommet plate included | Yes |
| Manual | Yes |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, REACH |
| Master (outer) case width | 488 mm |
|---|---|
| Master (outer) case length | 406 mm |
| Master (outer) case height | 275 mm |
| Products per master (outer) case | 2 pc(s) |
| Harmonized System (HS) code | 85299097 |
